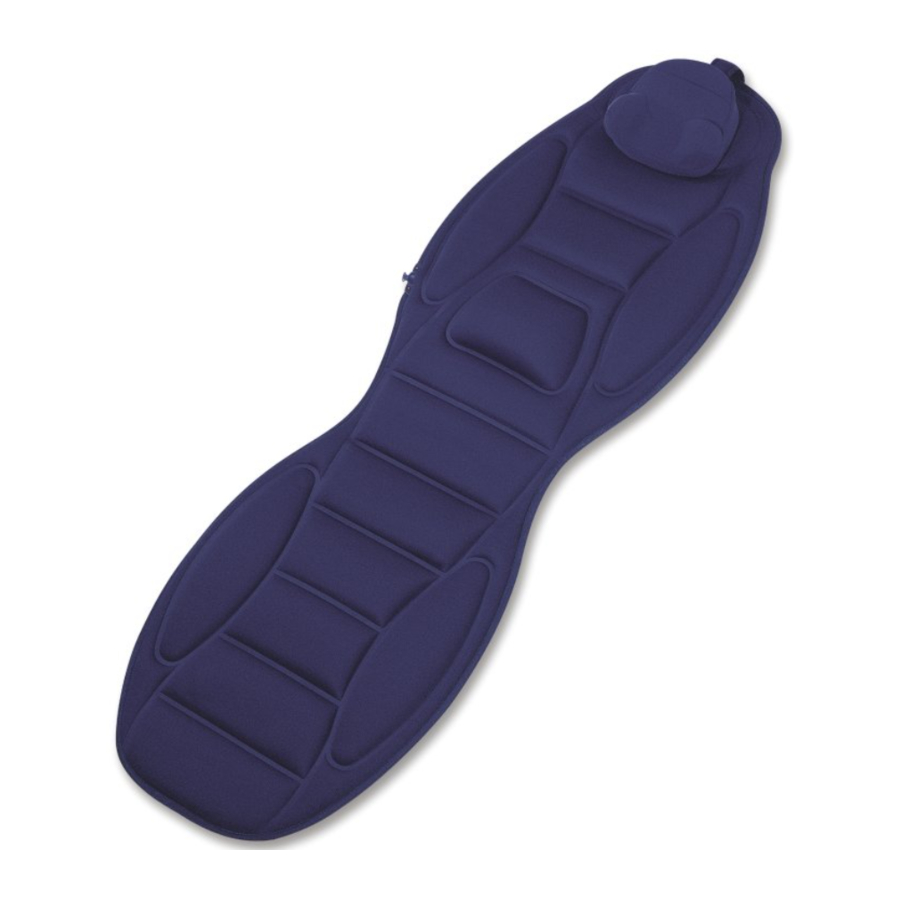

Scholl DR8683E - Deluxe Mattress Massager Manual

WELCOME TO THE SCHOLL FAMILY
Thank you for purchasing the Scholl Deluxe Mattress Massager.

1. CONTOURED PILLOW FOR FOCUSED MASSAGE ON NECK
2. EXCLUSIVE PASSIVE LUMBAR SUPPORT UNIQUE CUSHION SUPPORTS YOUR LOWER BACK AND SOOTHES MUSCLES WITH HEAT AND MASSAGE
3. 10 MOTORS WITH PULSE TECHNOLOGY PROVIDE KNEADING MASSAGE EFFECT
4. VARIABLE SPEED PULSATING TECHNOLOGY
5. AIR RELEASE BUTTON
6. RELAXING HEAT SOOTHES TIGHT BACK MUSCLES

WHAT IS AN ADJUSTABLE NECK PILLOW?

A unique feature to the Deluxe Mattress Massager is the adjustable neck pillow. This patent-pending feature allows a custom fit for each Deluxe Mattress Massager user because it is tethered to the mattress. Simply position yourself against the exclusive Passive Lumbar Support and adjust (see Figure A). Place the adjustable neck pillow where you need it. The pulsating motor under your head in the pillow massages your neck and provides support for a comfortable fit, specific to each user's body length.

Figure A

HOW TO USE

This product is intended for household use only.

1. Place mattress where it is to be used, i.e., floor, chair, or other surface. Make certain all switches are in the OFF (0) position and connect the adaptor to the remote hand control. Plug adaptor into the electrical source.
2. Position lower back directly on the Exclusive Lumbar Support. Refer to the Passive Lumbar Support section for details (see Figure B).

   FigureB
3. Position the adjustable neck pillow where desired. This pillow is attached to the cushion and can accommodate different body lengths. There is a pulsating motor in the pillow to give your neck muscles a relaxing pulsating massage (see Figure A).
4. Remote Hand Control: This control is connected to the unit. There are separate switches for heat and massage. Lights correspond to each switch that indicate the ON / OFF (I-0) position. As each massage zone is activated, the corresponding light illuminates the appropriate zone's diode. This feature makes it easy to see how your massager is programmed. The ten motors in the four massage zones can be programmed as OFF, LOW or HIGH (0-I-II). Each massage zone is independent of the other to give you a customized massage. The heat function (ON/OFF) operates independently of the massage zones.
5. Turn on pulsating massage modes by pressing the buttons on the controller. Adjust speed, LOW or HIGH (I or II), as desired (see Figure C). Press once for LOW (I), press again for HIGH (II). NOTE: Lights will pulse ON / OFF (I-0) in time with the motor pulse in the low setting.

   Figure C

WHAT IS PULSE MOTOR TECHNOLOGY?

Pulsating vibration simulates a massage therapist's technique of kneading. The Deluxe Mattress Massager offers 5 massage modes: Pulse, Press, Wave, Auto and Normal to provide varying pulse and vibration massage therapies The frequency of the pulse can be adjusted from low to high depending on the setting selected. The cushion massagers in the Scholl family provide this innovative feature.

1. PULSE
   ALL ZONES PULSE SIMULTANEOUSLY
2. PRESS
   ALL ZONES PRESS SIMULTANEOUSLY
3. WAVE
   ALTERNATES THROUGH THE ZONES
4. AUTO
   ALTERNATES RANDOMLY BETWEEN ZONES
5. NORMAL
   ALL ZONES VIBRATE SIMULTANEOUSLY

WHAT IS THE EXCLUSIVE PASSIVE LUMBAR SUPPORT?

Scholl Passive Lumbar Support is a unique design that does not require manual inflation. To customize the Deluxe Mattress Massager to fit your back, press and hold the button on the valve located on the back of the massage mattress (see Figure D).

Figure D
Turn the button anti-clockwise to release air. Apply pressure with lower back to Passive Lumbar Support. As air is released, the support conforms to the shape you need so you get the right amount of support every time. When the desired position is achieved, push the button in first and turn clockwise to lock the position. The Passive Lumbar Support will maintain that position until the valve button is pressed again. To readjust the Passive Lumbar Support, position your back away from the cushion and turn anti-clockwise to release air into the lumbar support. Once desired position is reached, push the button in first and turn clockwise to lock.

Switch Settings

0/I Power on/off

Heat on/off

~~/ ~ Intensity

I Low intensity

II High intensity

Pulse

Press

~ Wave

Auto

Normal

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

To reduce the risk of electric shock:

1. Always unplug this appliance from the electrical outletimmediately after using and before cleaning.
2. DO NOT reach for an appliance that has fallen into water. Unplug immediately.
3. DO NOT use while bathing or in a shower.
4. DO NOT place or store appliance where it can fall or be pulled into a bath or sink. DO NOT place in or drop into water or other liquid.

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. This appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts.
2. Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
3. Close supervision is necessary when this appliance is used by, on, or near children, or individuals with certain disabilities.
4. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
5. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service centre for examination and repair.
6. DO NOT carry this appliance by supply cord or use cord as a handle.
7. Keep the cord away from heated surfaces.
8. Never drop or insert any object into any opening.
9. DO NOT use outdoors.
10. DO NOT use adaptors that did not come with the appliance.
11. To disconnect, turn all controls to the OFF (0) position, then remove plug from outlet.
12. DO NOT fall asleep while appliance is on.
13. DO NOT insert pins.
14. DO NOT use with children, infirm indviduals or those insensitive to heat.
15. Over long application at high setting can result in skin burns.
16. This appliance is not intended for use in hospitals.

SAVE THESE INSTRUCTIONS

Product Care and Maintenance

• Place massager in a safe, cool and dry place when not in use.
• Wipe with a soft, damp cloth. DO NOT use abrasive cleaner.
• Never submerge the unit in any liquid. Keep away from all solvents and harsh detergents.
• DO NOT dry clean.
• DO NOT attempt to repair this massager. There are no user-serviceable parts.

LIMITED TWO (2) YEAR WARRANTY

This appliance is warrantied against defects in material or workmanship for two years from date of purchase. Simply take the appliance back to the retailer from where purchased for exchange free of charge. Any problems arising from misuse, attempts at repair, dropping or extreme wear are not covered by this warranty.

For repairs out of warranty, telephone the HOT (UK) Service Department at 0114-242-0405.

This product carries the CE mark and is manufactured in conformity with the Electromagnetic Directive 89/336/EEC and Low Voltage Directive 73/23/EEC.

©2004 SSL International plc

Distributed by Helen of Troy under licence from SSL International plc

For product information, visit us at http://www.HelenofTroyUSA.com
