Summary of Contents for Fractal MINI LED GOBO SPOT 10W

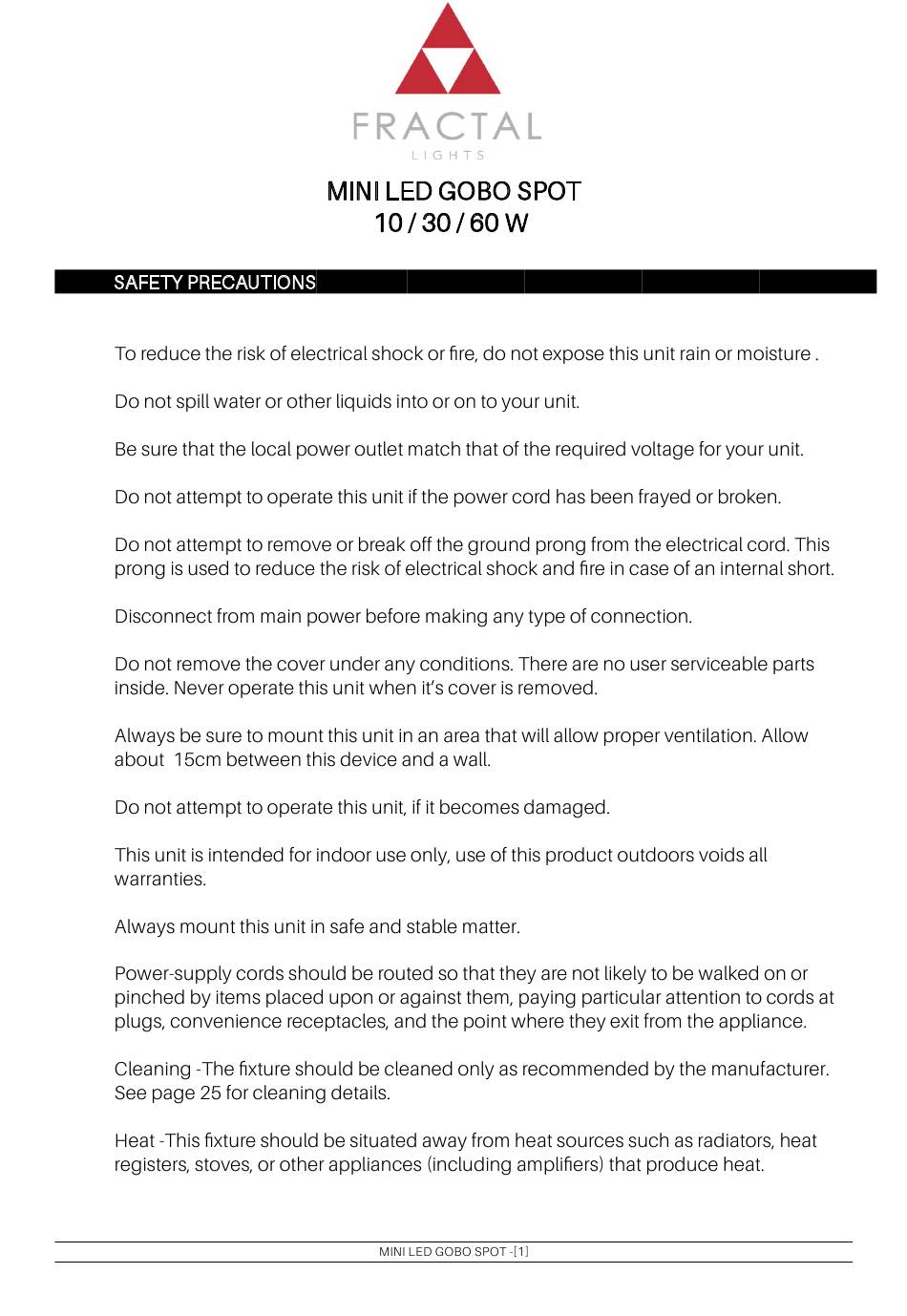

  • Page 1 • • • • • • • • • • • • • •...
  • Page 2 • • • • • • • Specification Power Consumption 30 W / 50 W /75 W Supply parameters 100 - 240 V Supply frequency 50 - 60 Hz Diode type Standard LED Number of diodes Diode power 10 W / 30 W / 60 W Colour Wheel 7 + white Gobo Wheel...
  • Page 4 Addr A001-A512 CHnd 11CH SLnd Auto SL 1 Sl 2 SHnd SH 0 SH 1 SH 2 SH 3 Soun SEns 0-100 bLnd bLAc Auto Sound HoLd dISP º rPAn rTiL rEST...
  • Page 5 11CH Value Function 000-255 000-255 Pan fine 000-255 Tilt 000-255 Tilt fine 000-009 Open 010-019 020-029 Yellow 030-039 Blue 040-049 Green 050-059 Orange 060-069 Pink 070-079 Cyan 080-089 Cyan/Pink 090-099 Pink/Orange 100-109 Orange/Green 110-119 Green/Blue 120-129 Blue/Yellow 130-139 Yellow/Red 140-255 Color scroll;...

This manual is also suitable for:

Mini led gobo spot 30wMini led gobo spot 60w
