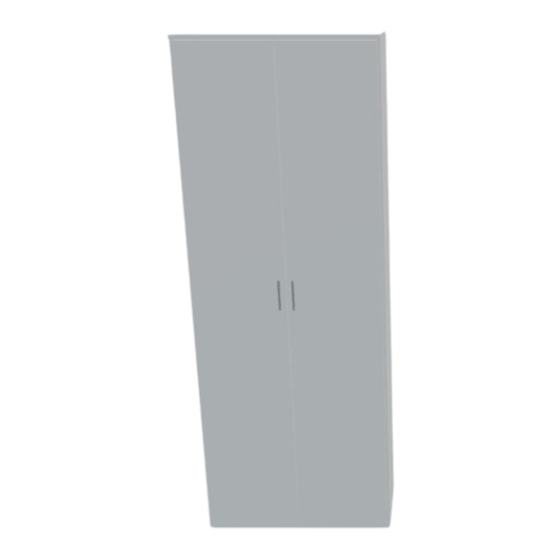

Sepsion DZ-SK09-QU Quick Start Manual

DZ-SK09-QU
854*396*2265H
A B C D E F G
φ3*16*8
P Q R S T U V
φ6*35
φ3*8*5
φ3.5*12*6.5
1
11
4
13
12
2
5
19
18
17 16
20
14 15
6
7
H I J K L M
M6*70
M6*10
M6*5
W X Y Z A1 B1
M4*23.5 M4*8
φ4*14*7
Do not put the Dowels in
the Cam Screw holes!
8
9
3
8
8
21
21
10
7
N O
940mm 620mm
C1
φ6*10
B
D

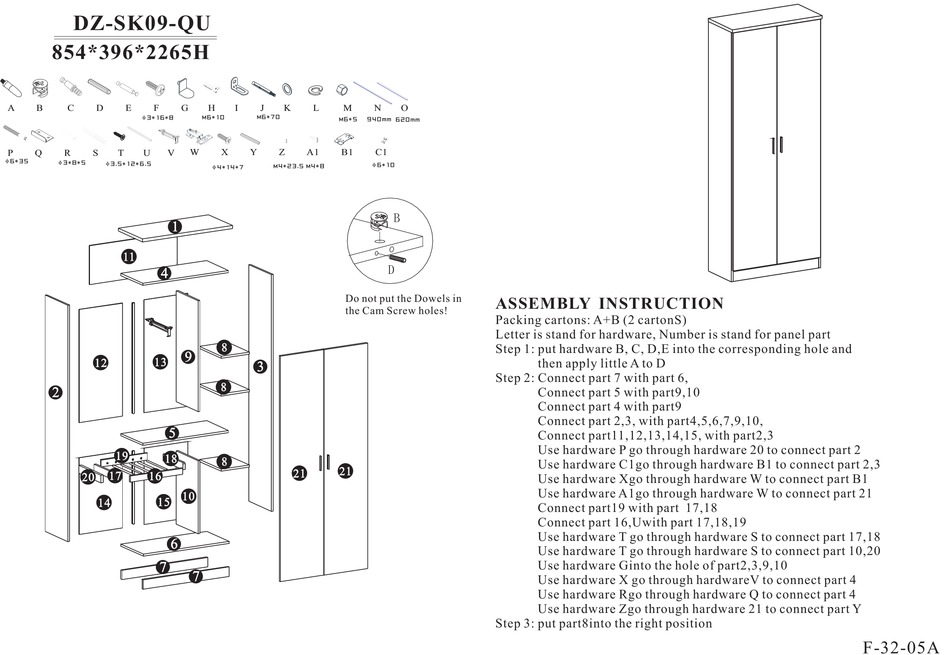

ASSEMBLY INSTRUCTION

Packing cartons: A+B (2 cartonS)
Letter is stand for hardware, Number is stand for panel part
Step 1: put hardware B, C, D,E into the corresponding hole and
then apply little A to D
Step 2: Connect part 7 with part 6,
Connect part 5 with part9,10
Connect part 4 with part9
Connect part 2,3, with part4,5,6,7,9,10,
Connect part11,12,13,14,15, with part2,3
Use hardware P go through hardware 20 to connect part 2
Use hardware C1go through hardware B1 to connect part 2,3
Use hardware Xgo through hardware W to connect part B1
Use hardware A1go through hardware W to connect part 21
Connect part19 with part 17,18
Connect part 16,Uwith part 17,18,19
Use hardware T go through hardware S to connect part 17,18
Use hardware T go through hardware S to connect part 10,20
Use hardware Ginto the hole of part2,3,9,10
Use hardware X go through hardwareV to connect part 4
Use hardware Rgo through hardware Q to connect part 4
Use hardware Zgo through hardware 21 to connect part Y
Step 3: put part8into the right position
F-32-05A
