Summary of Contents for Rehabmart SAT-1065
- Page 1 1. P stat no� dete 2. P · · · · · · 3. PR Motion Sensor User Manual SAT-1065...
-
Page 2: Product Overview

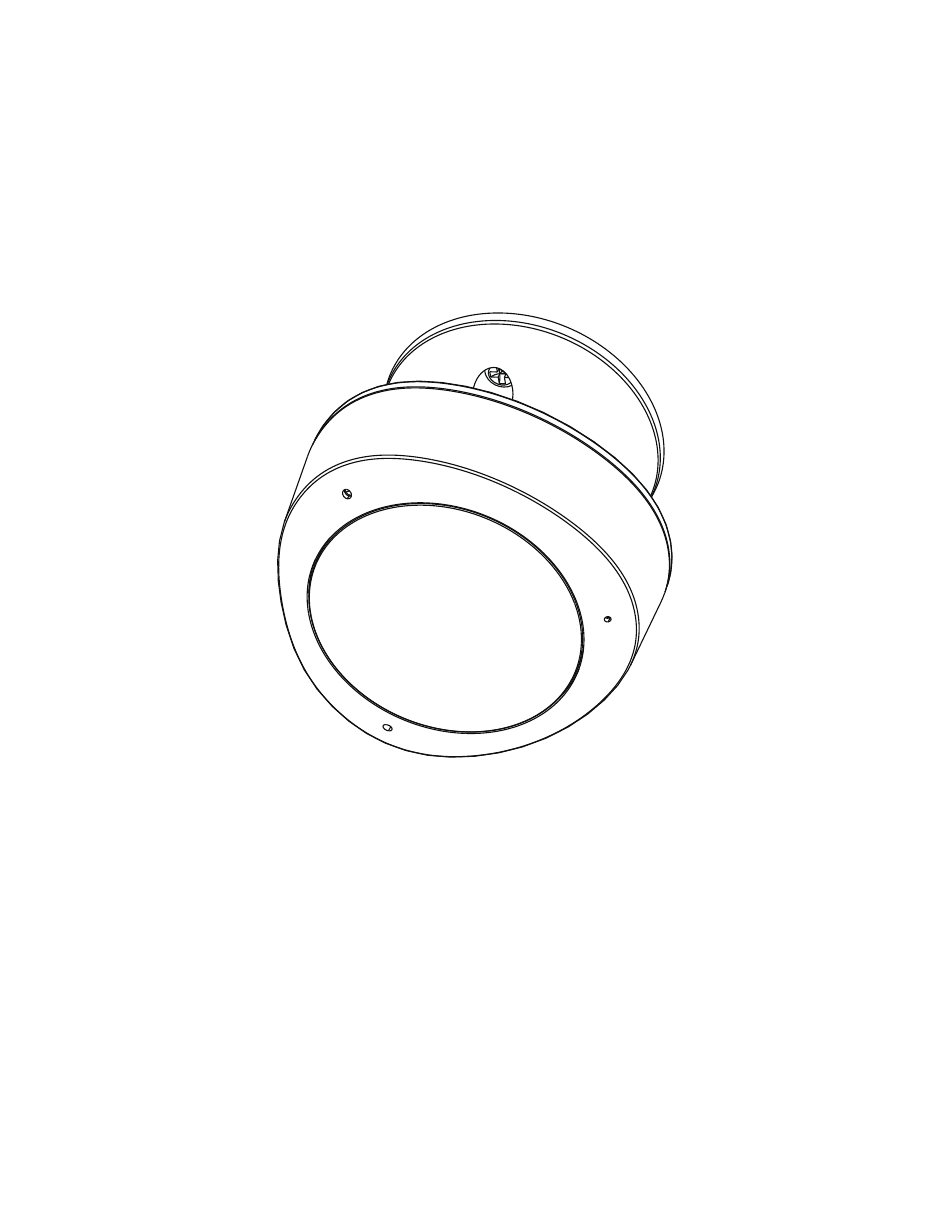

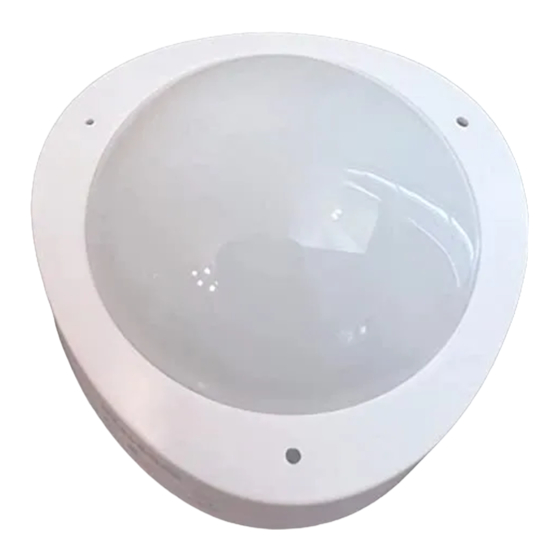

1. PRODUCT OVERVIEW SAT-1065 is a Wi-Fi based PIR sensor. You can check the device status, ba�ery level, alarm record and even receive push no�fica�on via APP when it detects someone moving within the detec�on range. 2. PRODUCT FEATURES ·... - Page 3 4. Sp Definition of LED Indicator AP Mode LED indicator blink slow in red EZ Mode LED indicator blink fast in red Bu�on Instruction Press and hold the Button for 5s then release, In the network resume to default set�ng, then it enters into EZ inclusion mode Out of the Press and hold the Button for 5s then release...
- Page 4 4. Specifications 5. I 6V 2*CR123A or 5V 1A USB DC power Power Supply 40mA Working current Standby current 40uA Battery Capacity 1300mAh Detec�on Distance 120° Detec�on Angle Wireless transmit�ng and 2.4 GHz-2.484GHz receiving frequency IEEE802.11b/ g/n Network protocol supported Encryp�on type WEP/TKIP/AES,WPS 802.11b: +14dBm@ 11Mbps...
-
Page 5: Installation
5. INSTALLATION (1) Power on (battery or USB). (2) Install the sensor's holder in desired loca�on with crews or 3M glue. 7. A (3) Insert the mul�-sensor into its holder. vice... - Page 6 6. Download app 6.1 Scanning following QR codes to download APP for Android and IOS System clic Android 6.2 Start the APP and register an account with your email address then login APP with your account; 7. Add Devices Open the APP and type your mobile number or email address, and then confirm password to complete the registra�on.
- Page 7 7.2 Add the device to the network. EZ Mode Power on, the red LED indicator will blink fast, then enter the EZ 5S � mode. Click the "Confirm indicator is blinking rapidly ", and click the “Next”, it will add device, once it is connected successfully, click “Done”...
- Page 8 AP Mode Power on, the red LED indicator will blink fast and hold the bu�on for 5S �me, then the LED indicator will blink slowly in red, Select “AP Mode” upper right, click "Confirm the indicator is blinking slowly " and click the “Next”,then click “Go to Connect”.
- Page 9 7.3 Users can re-name or share the device a�er Wi-Fi connec�on is finished. 8. Delete devices 8.1 Click the upper right on the device main interface, and click “Remove Device”, select “Disconnect” and then click “Confirm” to remove this device from APP. Select “Disconnect and wipe data” and then click “Confirm”...
- Page 10 7.3 Users can re-name or share the device a�er Wi-Fi connec�on is finished. 8. Delete devices 8.1 Click the upper right on the device main interface, and click “Remove Device”, select “Disconnect” and then click “Confirm” to remove this device from APP. Select “Disconnect and wipe data” and then click “Confirm”...
-
Page 11: Alarm Function
9. ALARM FUNCTION The SAT-1065 is equipped to support alarms on a 24 hour (military time) based clock. Users can set scheduled alarms and receive text alerts if the device does not detect motion within the time period specified. • To set an alarm, tap "Manage Alarm" and tap "add."... -
Page 12: Pir Settings
10. PIR SETTINGS The SAT-1065 allows users to be notified of motion, tamper detection, and alarms. The smart sensor also contains technology to monitor battery charge, and alert when it detects the battery is low. These notifications can be toggled on and off within the settings panel of the... - Page 13 11. Motion Detection History The SAT-1065 keeps a running log of activity, showing when the device has detected motion. This information can be viewed by tapping "History" on the main sensor panel. If t -- R -- I -- C...
-
Page 14: Fcc Notice
12. FCC NOTICE This device complies with part 15 of the FCC Rules. Opera�on is subject to the following two condi�ons: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired opera�on. The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifica�ons or change to this equipment.
