epixsky ADVANCED PRO RS232 Series Product Manual

PRODUCT MANUAL

Specifications

Power Requirements

Operating Voltage
Input: 12-24VDC
Output: 4 Independent channels @12-24 VDC
Channel Current
10 A - 12 VDC (120W) per channel
5 A - 24 VDC (120W) per channel

Communication Interface

epiX Hub:
- epiX Star Control App - WiFi or Bluetooth - Available at Apple and Android
App Stores
Serial RS232 from third party control system (Control 4, Crestron, Etc.)
9600 Baud, 8 Data Bits, no parity,
no handshaking, no flow control
2400 Baud, 8 data bits, no parity,
no handshaking, no flow control

Recommended Wiring

18 AWG up to 5 amps total
16 AWG up to 10 amp total
12 AWG up to 20 amp total
10 AWG up to 40 amp total
epiXsky - Advanced Pro Product Manual

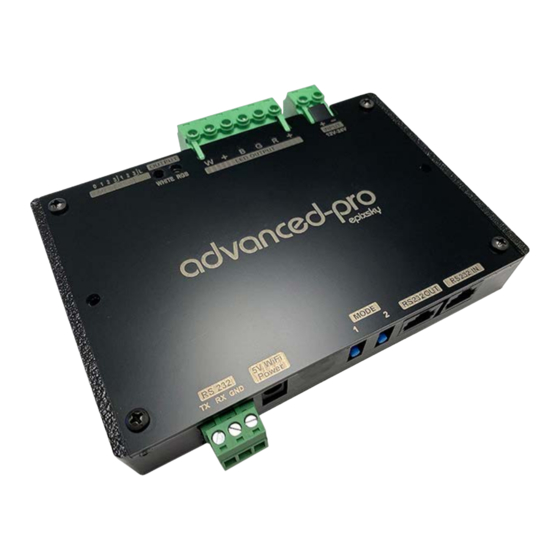

ADVANCED PRO RS232 SERIAL LED CONTROLLER
(same as voltage supplied)
(See Pg. 5 for more details)

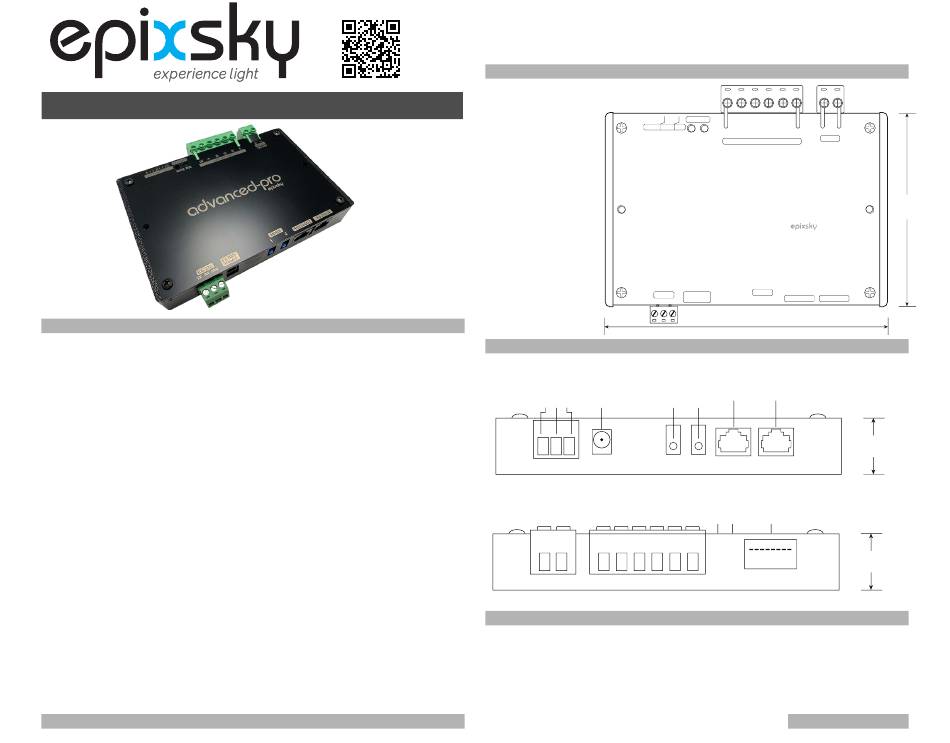

Technical Diagram

0 1 2 3 1 2 3 L
ADDRESS OPTION LOGO
Dimensions
Length: 6" - 6" (153 mm)
Width: 4.1875" (6.7 mm)
Height: 1.45"
Weight: 1 lb.
TX RX GND

Product Layout

FRONT
RS 232 5V WiFi
Power Output
TX RX GND
BACK
LED OUTPUT
INPUT
+
W B
12V - 24V
+ - -

Test/Stand-Alone Mode

To run the controller in test/stand-alone mode, you will use the two
'Mode Buttons' (See pg. 2 for functions).
The controller will respond to the last command given either via RS232
or a button press. When the controller is powered off then on, it will resume the
last command it was given.
OUTPUT
+
+ +
W B G R
WHITE RGB
INPUT
LED OUTPUT
12V -24V
advanced-pro
MODE
RS 232
5V WiFi
1 2 RS 232 OUT RS 232 IN
Power Output
6"
153mm
MODE MODE RS-232 OUT RS-232 IN
1 2
+ OUTPUT
G R
WHIT E RGB ADDRESS
L 3 2 1 3 2 1 0
--
4.1875"
6.7 mm
1.125"
28.5 mm
1.125"
28.5 mm
page 1
