Summary of Contents for VISICO Speedlite VS-765

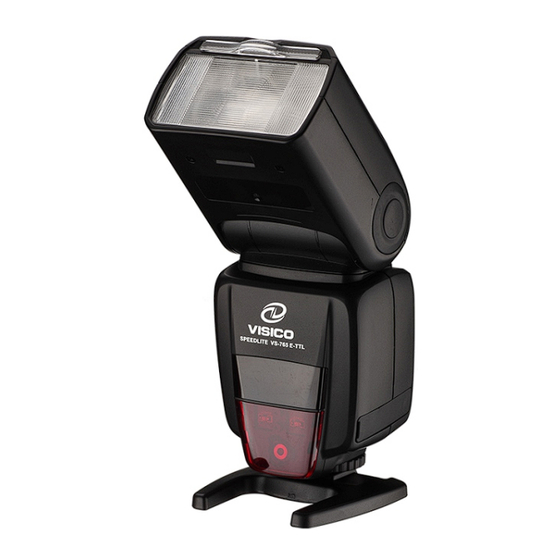

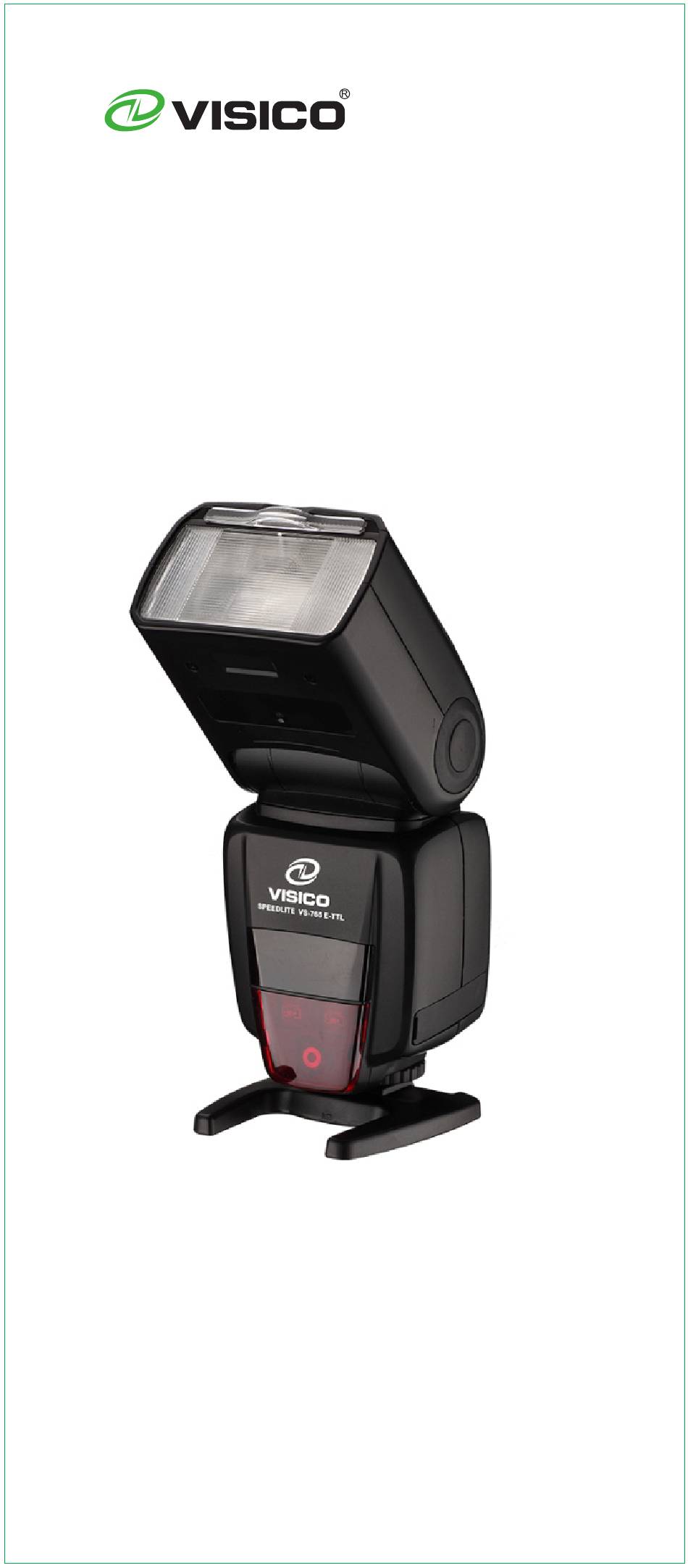

- Page 1 VS-765 For Nikon Speedlite User Manual...
- Page 2 Introduction Thank you very much for selecting VS-765 Speedlite. Please read instruction carefully and keep them handy for your reference. VS-765 Speedlite is a combination of world's first-class electronic technology and excellent manufacturing. It equips with multiple advanced and practical features as follows. We hope its durable performance and beautiful light will bring you with productive shooting experience.
- Page 3 Description Safety Note……………………………………… Name of Parts…………………………………… Button Operation……………………………… LCD Panel………………………………………… Install Battery…………………………………… Attach Speedlite………………………………… Turn on the Power……………………………… Flash Mode - ITTL Auto Flash………………… Flash Mode - M Manual Flash………………… Flash Mode - Multi Stroboscopic Flash……… High-speed Sync ……………………………… Second-curtain Sync…………………………… S1 and S2 Optical Mode………………………...
-
Page 4: Safety Note
SafetyNote ◆ Do not expose to rain or become damp. ◆ Do not get the unit close to hot objects. ◆ Do not use the unit in an environment where flammable vapor is likely to come in contact with the unit. ◆... -
Page 5: Name Of Parts
NameofParts 1. Catchlight Panel 7. Hot Shoe 2. Wide Panel 8. USB Upgrade Terminal 3. Flash Head 9. Locking Screw 4. Wireless Trigger Sensor 10. LCD Screen 5. Slave flash Ready 11. Battery Cover Indicator 6. AF-assist Light Button Operation 12. -
Page 6: Lcd Panel
LCDPanel 1. <ITTL> Auto flash 9. S1/S2 Optical slave flash 2. Manual zoom mode 10. 2.4G wireless single transmission 3. Lens focal length 11. Transmission channel 4. Battery power display 12. Group 5. <M> manual flash/ <Multi> 13. Flash output power/ stroboscopic Flash Flash exposure 6. -
Page 7: Install Battery
Installbattery battery not include Fig.1 Fig.2 Push the [Battery Cover] downward, and open the battery cover. According to “+” and “-” indicator on the battery compartment, install 4 pieces of AA batteries Slide [Battery Cover] upward and locks the battery. Caution: Please use regular AA batteries. -
Page 8: FlashMode-IttlAutoFlash
of idle use. To wake up the Speedlite again,press camera shutter halfway or press any flash button. When set as a slave flash, it will go to sleep mode after approx. 60 minutes of idle use. To wake up the Speedlite again, press any flash button. - Page 9 FlashMode-Mmanualflash When use flash in manual mode, flash output power is adjustable from 1/1 to 1/128 (8 f-stops) in 1/3 f-stop increment. To obtain a correct flash exposure, use a hand-held flash meter to determine the required flash output. 1） Set flash mode <M> Press [MODE] button and set to <M>...
- Page 10 4) S etflashfrequency Press and hold [Confirm Button] for 3 seconds and set to <number of flashes>. Press [Confirm Button] and set to <flash frequency>. Turn [Select Dial] to choose desired frequency(1-100). To ensure shooting effect,you may use the formula below to calculate the shutter speed and set it with the camera.Shutter Speed=Number of Flashes / Flash Frequency For example, when the display...
-
Page 11: High-SpeedSync
High-speedSync With high-speed sync, the flash can synchronize with shutter speed up to 1/8000s . When photographers shoot portraits in bright sun with wide open aperture, fast shutter speed can cut the ambient light, get amazing result as you want. SetHigh-SpeedSync ·... -
Page 12: Second-CurtainSync
4. Select [Flash sync speed] 5. Select Flash sync speed 1/250 (AUTO FP) or turn on [Auto FP] . The setting screen varies depending on the camera. Second-curtainSync Shooting with slow shutter speed and second-curtain sync, you can capture a trajectory of moving light. The flash fires right before shutter closes. -
Page 13: WirelessFlashShooting
SetS1/S2 Hold and press [M/S] button for 3 seconds and set to slave unit mode. Repeatedly press [M/S] button to choose S1 or S2. S1 is suitable for manual flash environment. The master flash should set at <M> manual flash mode. In <S1>... -
Page 14: Slave Mode
Symbol Meaning Master unit and slave unit fire at the same time. Master unit is set to OFF, only the slave units will fire a flash. Slave unit is set to OFF, only the Master unit will fire a flash. SlaveMode When the flash is used as a slave unit, a symbol will... - Page 15 SelectTransmissionchanneland GrouponMasterUnit SetTransmission channel 1. Press and hold [M/S] button for 3 seconds and set to master mode. 2. Press and hold [MODE] button for 3 seconds, so that <CH> is displayed on the screen. 3. Turn the [Select Dial] to choose a transmission channel number from 1 to 4.
- Page 16 1.Setmasterunitandslaveunit 1.Set one speedlite attached to the camera as the master unit. Set other speedlites to be controlled wirelessly as the slave unit. 2.Selectcontrolmodeofmasterunit Press and hold [M/S] button for 3 seconds and select “Master unit”. Repeatedly press [M/S] button to select control mode of master unit (Master unit and slave unit fire at the same time) or...
-
Page 17: Af-Assist Beam
8.T akethepicture Press [PILOT] button, each slave unit fires in the respective flash modes set. If slave units do not fire a flash, please adjust the angel or distance between master unit and slave units. No matter where the slave unit's flash head is toward, be sure that its wireless sensor faces the master unit, and make sure the slave unit is placed in an effective transmission range of... -
Page 18: CatchlightPanel
• If the wall or ceiling is too far away, the bounced flash might be too weak and result in underexposure. •T he wall or ceiling should be plain white for high reflectance. If the bounce surface is not white, a color cast may result in the picture. -
Page 19: WidePanel
Manual Zoom Auto Zoom If set flash coverage manually, make sure flash coverage is wider than the angle of view you are shooting, to prevent the periphery of the picture from being dark. WidePanel When you use the flash's built-in wide panel, you can perform flash shooting with ultra-wide angle lenses up to 14mm. -
Page 20: Reset Factory Defaults
ResetFactorydefaults A factory restore erases the information and settings on your speedlite in an attempt to restore the device to its original manufacture settings. Press and hold [ H/FN] button for 3 seconds until < Fn> appears. Repeatedly press [ H/FN] button until the following icon apperas on the screen Press [Confirm Button] to restore the device to its original manufacture settings. - Page 21 90°up,7°down, Bounce 180°left/right Flash Duration 1/10000s ExposureControl Exposure control TTL autoflash, manual system flash, stroboscopic flash Flash exposure ±3 stops in 1/3 stop compensation (FEC) increments High speed sync (up to Sync mode 1/8000s), First curtain sync, Second Curtain sync Manual flash 1/128-1/1 (1/3-stop increment)
- Page 22 FirmwareUpdate 1）Visit VISICO official website (www.visico.com) to download the firmware upgrading drive and the firmware of the latest version. 2）Turn off the power, and press and hold [ H/Fn] button, meanwhile, switch on the power.
- Page 23 · Make sure the battery is installed in correct polarity. · Insert mounting foot into camera's hot shoe all the way, and secure the flash on the camera. · If recycling time of flash is longer, please replace the batteries. ·...
- Page 24 YUYAOVISTARELECTRONICSCIENCE& TECHNOLOGYCO.,LTD No.206BEIXINGROADOFWESTCITY INDUSTRIALDEVELOPMENTZONE, YUYAOCITY,ZHEJIANG,CHINA315450 TEL:+86-574-62803099 FAX:+86-574-62803111 EMAIL:info@vistarfoto.com WEB:www.visico.com...
