  • Page 1: Glossary

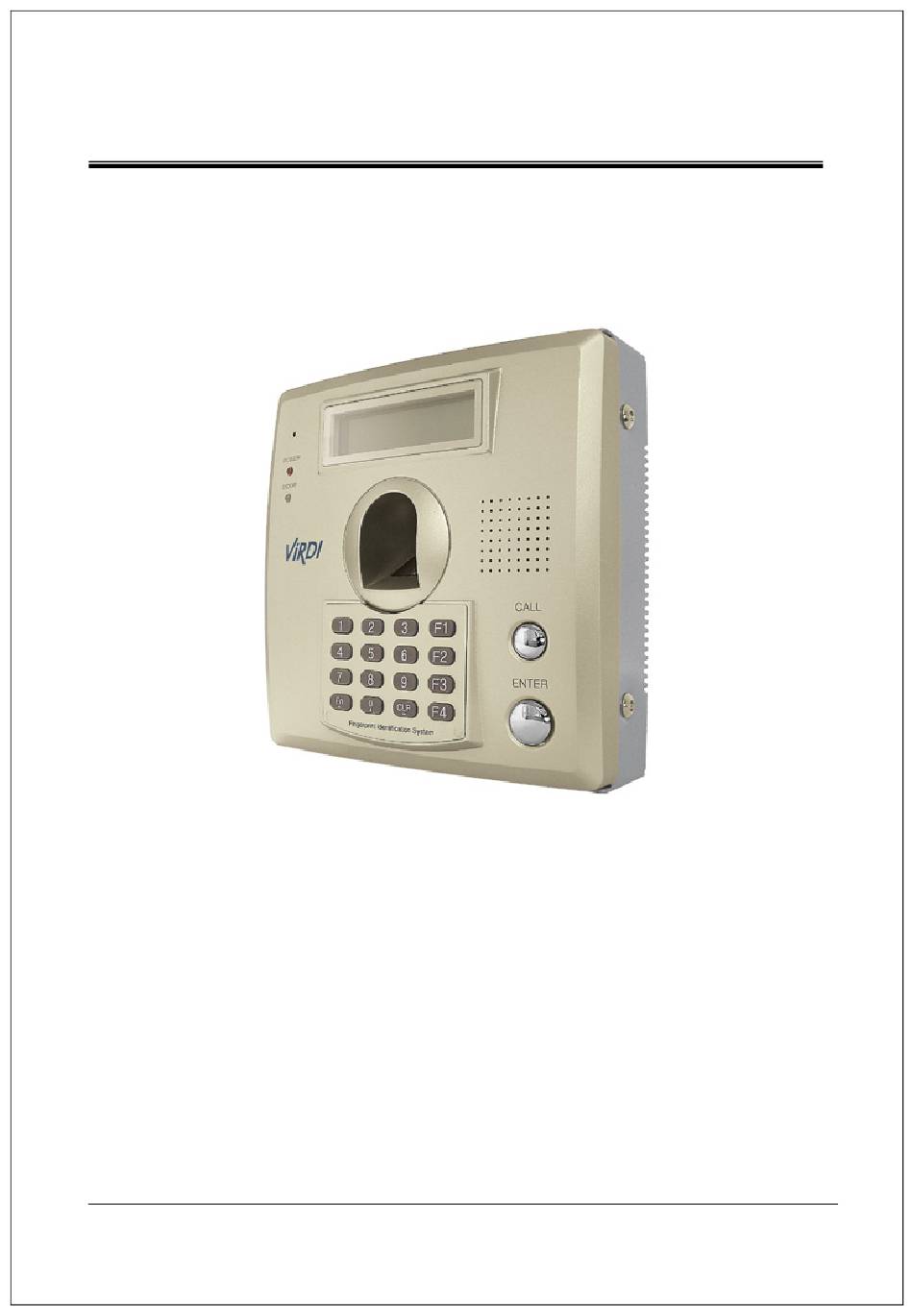

    VIRDI 3000 .Installation Guide Version eng-1.01...

  • Page 2: Table Of Contents

    VIRDI 3000 Installation Guide Table of Contents < GLOSSARY> ......................2 1. BEFORE START....................4 1.1. Safety precautions .................... 4 1.2. Terminal description ..................5 1.3. Button description .................... 5 1.4. Screen (during operation) description ............6 1.5. Voice information during operation..............7 1.6.

  • Page 3: Before Start

    VIRDI 3000 Installation Guide 1. Before start 1.1. Safety precautions Warning Handling with wet hands or allowing liquid to flow into it Do not place a fire source is not advised. near the unit. -> cause -> It may cause a fire.

  • Page 4: Terminal Description

    VIRDI 3000 Installation Guide 1.2. Terminal description LED lamp : Terminal operation state PWR : ON when VIRDI 3000 is under normal operation DOOR: Yellow ON when electronic door open/close unit is open after authentication Red ON when the terminal case is open...

  • Page 5: Screen (During Operation) Description

    VIRDI 3000 Installation Guide 1.4. Screen (during operation) description == connected to network server disconnected to network server in/out display during in/out control ( F1, F2, F3, F4 ) start/leave display during start/leave control ( START, LEAVE, OUT, BACK, NORMAL )

  • Page 6: Voice Information During Operation

    VIRDI 3000 Installation Guide 00:00 - Waiting for card to be input 00:00 - A registered user tried authentication when entry/exit is not allowed. 00:00 - Waiting for a reply from the server for authentication - Terminal is locked 00:00...

  • Page 7: Correct Fingerprint Registration And Input Methods

    VIRDI 3000 Installation Guide 1.8. Correct fingerprint registration and input methods Correct fingerprint registration methods Place your index finger on the window just as you do with a finger stamp. Finger tip touching is not an appropriate registration or input method.
  • Page 8 VIRDI 3000 Installation Guide Cautions about fingerprint condition Depending on the user’s fingerprint condition, some fingerprints may not be used or may cause an inconvenience. If the fingerprint is damaged or very unclear, then it cannot be recognized. Please use a password instead in this case.

  • Page 9: Introduction

    VIRDI 3000 Installation Guide 2. Introduction 2.1. Features Access control system using LAN - Communication between the unit and authentication server is done through a UTP cable and TCP/IP protocol, so an existing LAN can be used as it is.
  • Page 10 VIRDI 3000 Installation Guide Various registration and authentication methods - There are a total of 11 registration and authentication methods (4 methods if the card reader is not installed), so you are required to select one method before registering users and an administrator.

  • Page 11: Configuration

    VIRDI 3000 Installation Guide 2.2. Configuration 2.2.1. Network configuration Network Server (authentication Server) Switch Hub 6410 Tx R x T x R x T x R x T x Rx Tx R x T x R x Tx Rx Tx R x...

  • Page 12: Specifications

    VIRDI 3000 Installation Guide 2.3. Specifications Item SPEC REMARK 32-Bit RISC CPU (266MHz) 8M SDRAM 3,520 4M FLASH (Default) MEMORY fingerprints 8,160 8M FLASH (Option) fingerprints Fingerprint sensor Optical Authentication speed <1 sec. Scan Area / Resolution 12.9 * 15.2mm / 500 DPI FRR / FAR 0.1% / 0.001%...

  • Page 13: Installation Guide

    VIRDI 3000 Installation Guide 3. Installation Guide 3.1. Product Composition Items Type Shape Number Usage Entrance Product 1 Set Restriction Power Conversion Adapter 1 EA (12V~24V) POWER Supply POWER (110V~220V) 1 EA Cable **Shape change for 110V Secure 1 EA...
  • Page 14 VIRDI 3000 Installation Guide 8-PIN Lock 1 EA Cable HOUSING 2-PIN Door Phone 1 EA & Cable Terminal 10 EA Terminal Driver Driving Product 1 EA (OPTION) Securing Screws...

  • Page 15: Installation Environment Conditions

    VIRDI 3000 Installation Guide 3.2. Installation Environment Conditions 3.2.1. Environment Conditions Only regulated 110V~220V power must be used. Especially if you are using emergency power, receive the Manager’s consent. This product was designed for indoor installation. Please avoid direct light rays, snow, rain, etc.

  • Page 16: Main Board Composition

    VIRDI 3000 Installation Guide 3.3. Main Board Composition J105 Wiegand OUT J106 J251 Wiegand IN J501 J203 J301 POWER 12V Ethernet LOCK Door Phone Fuse Lock type setiing switch SW201, SW202 J302,303 J107 J151 Reset Switch Key Interface RS485 Fingerprint...

  • Page 17: Pin Specifications Of Each Product Part

    VIRDI 3000 Installation Guide 3.4. PIN Specifications of Each Product Part <Figure 3.4.1> 8-PIN door lock housing FUNCTION REMARK DOOR-OUT(+Vin) LOCK control voltage Powerless connection control (if JP201 LOCK COM removed) GROUND INSIDE-OPEN Inner door OPEN switch DOOR MONITOR 0 Door status MONITORING...

  • Page 18: Installation

    VIRDI 3000 Installation Guide 3.5. Installation 3.5.1. Installation Process (All) 1) Select the product installation location and the Electric Lock type according to the fireproof door type. 2) Confirm the locations of the LAN line and main power(110V–220V) and connect the lines.
  • Page 19 VIRDI 3000 Installation Guide ☞ The electric lock is classified into 4 categories according to the fireproof door type. Category Shape Capacity Notes Input voltage: DC12V Consumed current: less Power Dead Bolt than 1A control Input voltage: DC12V Electro- Consumed current: less...
  • Page 20 VIRDI 3000 Installation Guide 2) Confirm the locations of the LAN line and main power (110V–220V) and connect the lines. Ensure that the UTP cable allows TCP/IP communication between the hub and the product using LAN tools, the RJ-45 connector, and a boot. Once you are done, use the LAN test equipment to check if the connection is working properly.
  • Page 21 VIRDI 3000 Installation Guide 4) Assemble the 8-PIN Housing using the terminals according to the electric lock type. 4–1) Dead-bolt type door lock (fail safe) ① 1 product <---> 1 Dead–bolt connection diagram Lock type change S/W SW201 (NC direction)
  • Page 22 VIRDI 3000 Installation Guide ② 2 products <---> 1 Dead–bolt connection diagram Lock type change S/W Product 1: SW201 (NC direction) Product 2: SW201 (NC direction) SW202 (Strike lock direction) SW202 (Auto door direction) Product 1 Pin5 Pin3 Pin1 Product 2...
  • Page 23 VIRDI 3000 Installation Guide 4–2) Strike type door lock (fail safe) ① 1 product <---> 1 Strike lock connection diagram Lock type change S/W SW201 (NC direction) SW202 (Strike lock direction) Pin8 Pin5 Pin1 +(BR) - (BK) door monitor <Figure 3.5.6> 1 product <---> 1 Strike lock connection diagram (fail safe)
  • Page 24 VIRDI 3000 Installation Guide ② 2 products <---> 1 strike lock connection diagram Lock type change S/W Product 1: SW201 (NC direction) Product 2: SW201 (NC direction) SW202 (Strike lock direction) SW202 (Auto door direction) Product 1 Pin5 Pin3 Pin1...
  • Page 25 VIRDI 3000 Installation Guide 4–3) Strike type door lock (fail secure) ① 1 product <---> 1 strike lock connection diagram SW201 (NO direction) SW202 (Strike lock direction) Pin8 Pin5 Pin1 +(BR) - (BK) door monitor <Figure 3.5.8> 1 product <---> 1 strike lock connection diagram (fail secure)
  • Page 26 VIRDI 3000 Installation Guide ② 2 products <---> 1 Strike lock connection diagram Lock type change S/W Product 1: SW201 (NO direction) Product 2: SW201 (NO direction) SW202 (Strike lock direction) SW202 (Auto door direction) Product 1 Pin5 Pin3 Pin1...
  • Page 27 VIRDI 3000 Installation Guide 4–4) EM lock type door lock 1 product <---> 1 EM lock connection diagram Lock type change S/W SW201 (NC direction) SW202 (Strike lock direction) Pin8 Pin5 Pin4 Pin3 Pin1 +(BR) -(BK) door monitor Inside door open S/W...
  • Page 28 VIRDI 3000 Installation Guide 4–5) Auto door type lock ① 1 product <---> 1 auto lock connection diagram Lock type change S/W SW201 (NO direction) SW202 (Auto door direction) Pin2 Pin1 Inside door open S/W <Figure 3.5.11> 1 product <---> 1 auto lock connection diagram...
  • Page 29 VIRDI 3000 Installation Guide ② 2 products <---> 1 auto lock connection diagram Lock type change S/W Products 1, 2 SW201 (NO direction) SW202 (Auto door direction) Product 1 Pin2 Pin1 Product 2 Pin2 Pin1 <Figure 3.5.12> 2 products <---> 1 auto lock connection diagram...
  • Page 30 VIRDI 3000 Installation Guide 5) Assemble the 2-PIN housing for the door phone line using the terminal. 2PIN Cable <Figure 3.5.13> assembly diagram of door phone line 2-PIN housing 6) Secure the secure plate to the wall using 4 securing screws.

  • Page 31: Faq

    VIRDI 3000 Installation Guide 4. FAQ 4.1. If the product does not work even after connecting power ☞ First, check that the product and adapter are correctly connected. Check that 12V power is supplied to the power cable (3-PIN). If the connection is correct, the fuse might be blown, so try changing the fuse.
