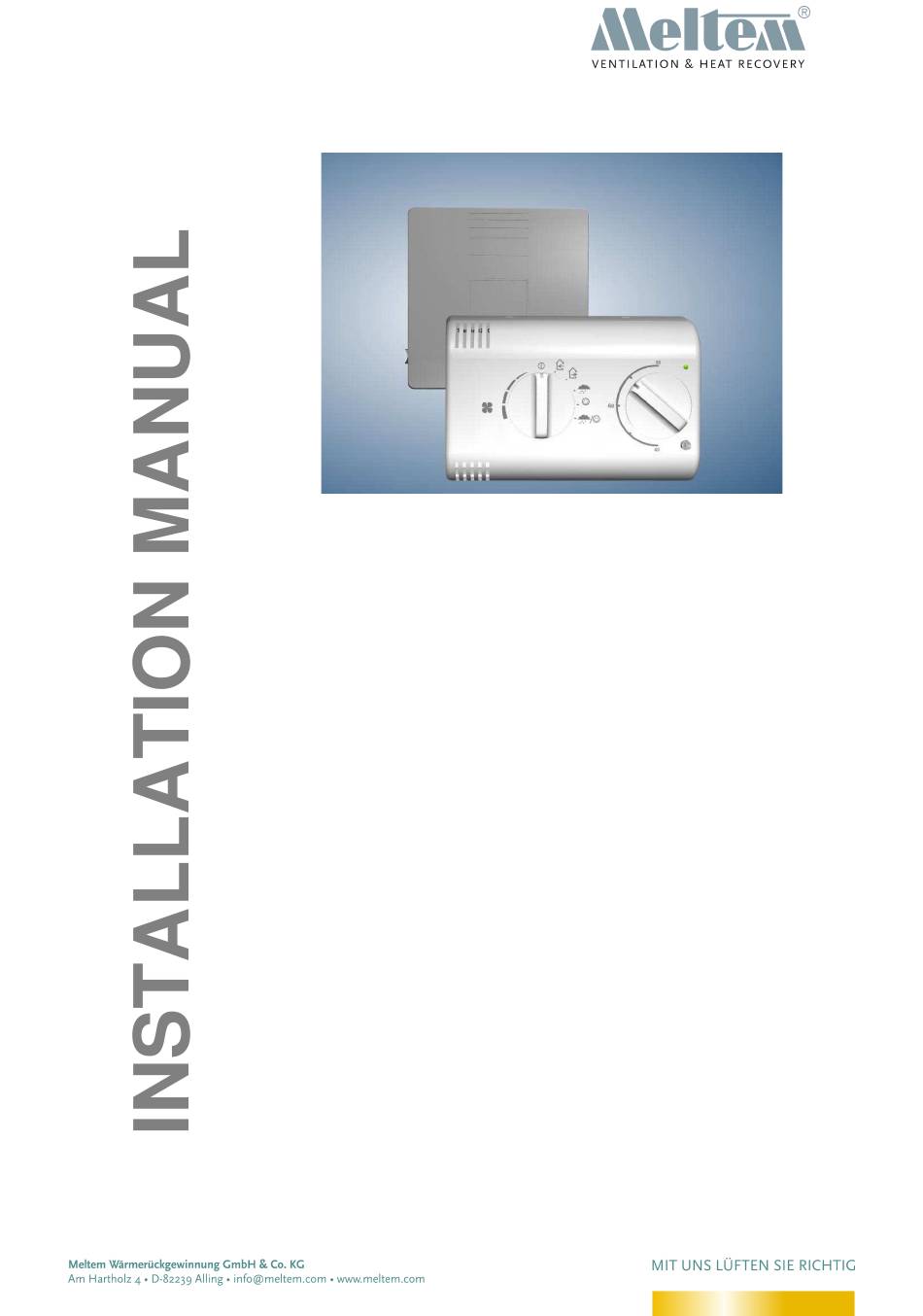

Contents INSTALLATION MANUAL Overview Electrical connections of the ventilation unit M-WRG-S/Z-A Wiring diagram Overview Control Elements M-WRG-HBE Overview Operating Modes Page 2...
Control terminal and ventilation units are connected using a 8-core control wire. Up to five M-WRG-S/Z-A units can be connected to one control terminal M-WRG-HBE, however the power supply wire (pin V+) must be connected to one ventilation unit only.
Wiring diagram M-WRG-S/Z-A Control terminal M-WRG-HBE terminal block external timer Installationsschema Unit 1 Unit 2 Unit 3 Unit 4 Unit 5 M-WRG-S/Z-A M-WRG-S/Z-A M-WRG-S/Z-A M-WRG-S/Z-A M-WRG-S/Z-A 230V 230V 230V 230V 230V Wire length max. 50 m J-Y (ST) Y 4 x 2 x 0,6 mm² bzw.
Ventilation output: Supply air • Ventilation output: Stale air • Air Humidity (*) • Air quality (*) (*) Air Humidity can only be controlled with M-WRG-HBE-F and M-WRG-HBE-FC models, Air Quality only with M- WRG-HBE-FC model. Page 5...
Overview Operating Modes M-WRG-HBE The position of the Turn-Switch selects the operating mode, while the Rotary-Knob determines the values for the parameter for air humidity, air quality or ventilation rate for supply air and exhaust air volumes. Turn-Switch Positions Rotary Knob Positions Ventilation rate 5 80 m³/h...
