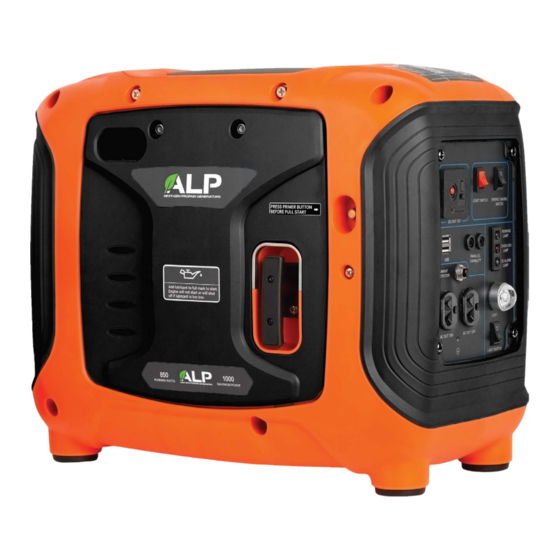

ALP PS1000i Owner's Manual

Digital inverter propane generator

Hide thumbs

Table Of Contents

NEXT-GEN PROPANE GENERATORS

DIGITAL INVERTER

PROPANE GENERATOR

PS1000i

OWNERS MANUAL

Product Support

Product Information, Application, Servicing & Warranty Questions

Please email us at info@alpgenerators.com

or call (833) 398-4433 Monday- Friday 9:00 am - 5:00 pm (PST)

Table of Contents

Need help?

Do you have a question about the PS1000i and is the answer not in the manual?

Questions and answers

Summary of Contents for ALP PS1000i

Page 1 NEXT-GEN PROPANE GENERATORS DIGITAL INVERTER PROPANE GENERATOR PS1000i OWNERS MANUAL Product Support Product Information, Application, Servicing & Warranty Questions Please email us at info@alpgenerators.com or call (833) 398-4433 Monday- Friday 9:00 am - 5:00 pm (PST)
Page 3: Notice Regarding Emissions
FEATURES • 1 00% Propane Powered Generator. • Runs on both 1 lb and 20 lb propane tanks. • 60 Hour Run Time on 20 lb Tank with ECO mode. • 3 Hour Run Time on 1 lb Tank with ECO mode. •...
Page 7: Generator Components
GENERATOR COMPONENTS Please familiarize yourself with the locations and functions of the various components and controls of your generator. J I J j I� ��. � ';(Ailn ® [ I i i I i i ��. , L ' - )J-�4c �...
Page 8 GENERATOR COMPONENTS (Continued) 13. ECO Mode Switch - Used to reduce gas consumption during operation. 14. Engine Switch - Monetary Switch to turn "Off' the generator. 15. Running Light - Green LED light indicates the generator is running. 16. Overload Light - Red LED light indicates the generator is overloaded. 17.
Page 9: Eco Mode Switch
GENERATOR COMPONENTS (Continued) ECO Mode Switch When the generator is disconnected from the electrical equipment, the generator set speed is at idle; when the electrical equipment is connected to it, the generator will return to the appropriate speed to provide the power required by the electrical load. This device is used to reduce gas consumption during operation.
Page 10: Step 2 Check The Oil Level
Step 2 Check the oil level The generator is equipped with an automatic shutoff to protect it from damage due to low oil. Nonetheless, you should check the oil level of the engine before each use to ensure that the engine crankcase has a sufficient amount. Running the generator when the amount of oil is insufficient may severely damage the engine.
Page 11: Starting The Generator
STARTING THE GENERATOR & WARNING: Before starting the generator, make sure that the correct four-stroke engine oil has been added to the engine. Note: No engine oil is filled at the manufacturer. 1. Disconnect all electrical loads from the generator before attempting to start. 2.
Page 12 USING THE GENERATOR (Continued) • Do not use the generator for purposes beyond its reach. Also, observe the follow ing rules: • Do not parallel with generators from other brands. • Do not lengthen the exhaust pipe. • The length of the extension cable is limited: The 16 AWG cable is 20 feet, and the 14 AWG cable is 30 feet.
Page 13 USING THE GENERATOR (Continued) & CAUTION: Running Light and Overload Light • Under normal operating conditions, the Running Light will be on. If the generator is overloaded (over 0.85KVA), or if the connected equipment short-circuits, the Running Light will go out, and the Overload Light (red) will light up. At which point, the current connection to the appliance will cut off in 20 seconds.
Page 14: Stopping The Engine
• To reduce the possibility of fire or explosion, be careful when working around propane. Use only a nonflammable solvent to clean parts. Keep cigarettes, sparks, and flames away from all fuel-related parts. & CAUTION: Please use ALP spare parts or replacement parts of the same quality; otherwise, it may damage the generator.
Page 15: Maintenance Schedule
MAINTENANCE AND CARE (Continued) Maintenance Schedule Maintenance and adjustment schedules are designed to keep the generator set in top working condition. Please check and maintain according to the schedule in the following table. Note: 1. The interval between routine maintenance. 2.
Page 16: Spark Plug Maintenance
MAINTENANCE AND CARE (Continued) Spark Plug Maintenance The spark plug is important for proper engine operation. A good spark plug should be intact, free of deposits, and properly gapped. Figure 1 - Removing the Spark Plug Repair Panel Figure 2 - Removing the spark plug cover To inspect your spark plug: 1.
Page 17: Air Filter Maintenance
MAINTENANCE AND CARE (Continued) Air Filter Maintenance Routine maintenance of the air cleaner helps maintain proper airflow to the carburetor. Occa sionally check that the air cleaner is free of excessive dirt. & CAUTION: Do not operate the machine without an air filter; otherwise, it will cause rapid engine wear.
Page 18 MAINTENANCE AND CARE (Continued) When long-term storing your generator: • Make sure the storage area is dry and clean. • Remove the spark plug (see page 16), pour a tablespoon of clean oil into the cylinder, rotate the engine a few times to dis tribute evenly, and then reinstall the spark plug. •...
Page 19: Troubleshooting
Solution Propane hose not screwed in Screw in hose completely Tank is out of propane Replace with new tank Non ALP propane hose used Use ALP provided hose Engine will not start Spark plug is dirty Clean spark plug Replace...
Page 20 Generator Specifications - PS1 000i AC Rated Wattage 850W AC Max Wattage 1 000W AC Rated Voltage 120V AC Rated Frequency 60 Hz AC Amerpage 7.1A DC Voltage DC Amperage 6.3A Length Dimensions (mm.) Width Height Weight 30.86 lb (14 kg) Engine Type 4-Stroke, O HV, Single Cylinder Engine Model...
