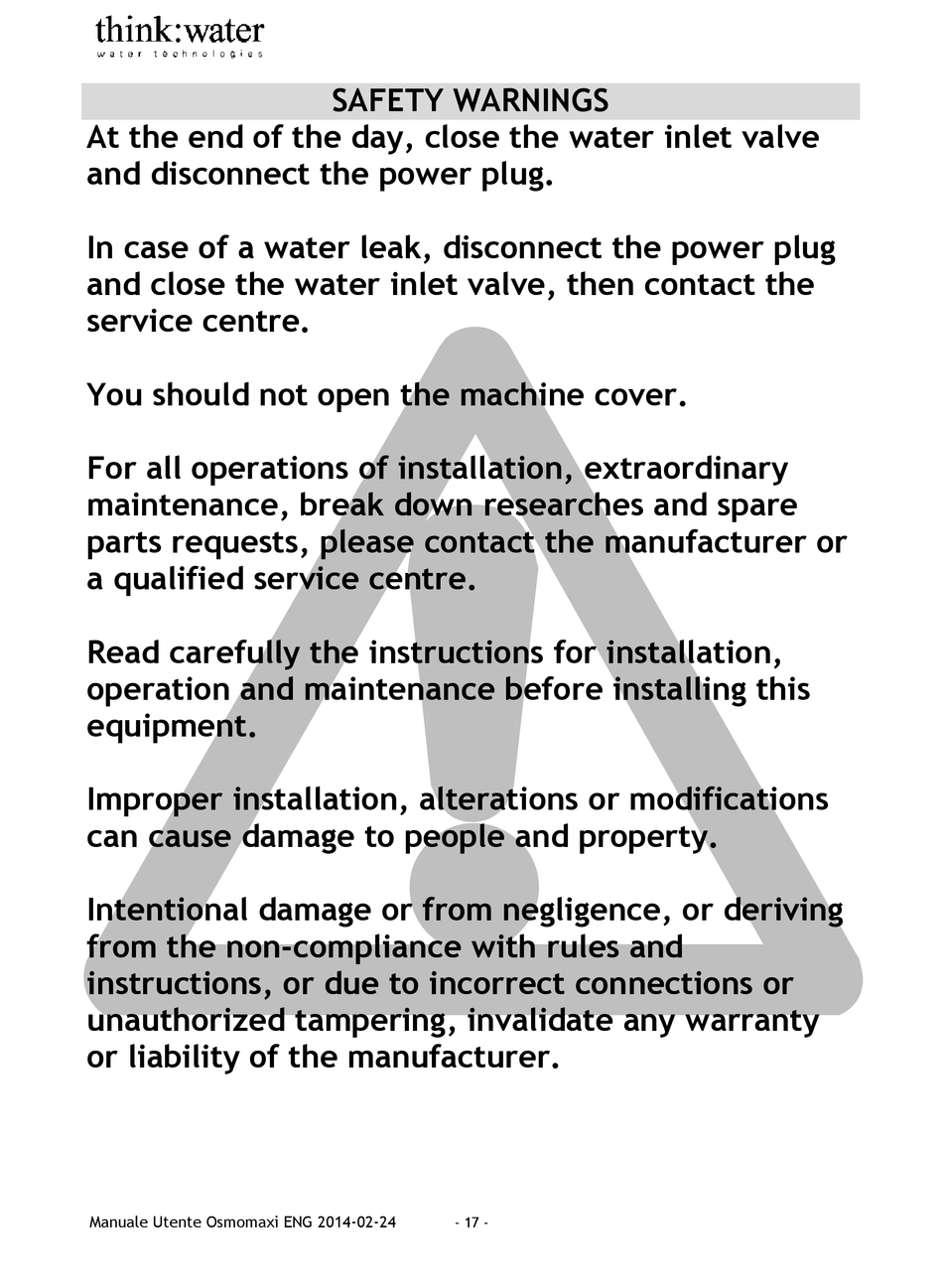

SAFETY WARNINGS
At the end of the day, close the water inlet valve
and disconnect the power plug.
In case of a water leak, disconnect the power plug
and close the water inlet valve, then contact the
service centre.
You should not open the machine cover.
For all operations of installation, extraordinary
maintenance, break down researches and spare
parts requests, please contact the manufacturer or
a qualified service centre.
Read carefully the instructions for installation,
operation and maintenance before installing this
equipment.
Improper installation, alterations or modifications
can cause damage to people and property.
Intentional damage or from negligence, or deriving
from the non-compliance with rules and
instructions, or due to incorrect connections or
unauthorized tampering, invalidate any warranty
or liability of the manufacturer.
Manuale Utente Osmomaxi ENG 2014-02-24
- 17 -
Advertisement
Table of Contents
Related Manuals for Thinkwater OSMO-MAXI STANDARD
Summary of Contents for Thinkwater OSMO-MAXI STANDARD
- Page 1 SAFETY WARNINGS At the end of the day, close the water inlet valve and disconnect the power plug. In case of a water leak, disconnect the power plug and close the water inlet valve, then contact the service centre. You should not open the machine cover. For all operations of installation, extraordinary maintenance, break down researches and spare parts requests, please contact the manufacturer or...
-
Page 2: Table Of Contents
INDEX GENERAL INFORMATIONS ..........................19 MANUFACTURER / ASSISTANCE .................... 19 1.2. CERTIFICATION ....................... 19 1.3. PURPOSE OF THE MANUAL AND ITS CONTENTS ................19 CARE AND STORAGE OF THE MANUAL ..................19 IMPORTANT SYMBOLS TO REMEMBER ..................19 CHARACTERISTICS OF THE DEVICE ........................20 2.1. -
Page 3: General Informations
GENERAL INFORMATIONS MANUFACTURER / ASSISTANCE BUILDER ASSISTENCE Think:Water srl Via delle Pezze, 35 Personal Data of the Retail Seller 35013 Cittadella (PD) 1.2. CERTIFICATION OSMO-MAXI was manufactured in compliance with the following EU Directives: Machines 2006 / 42 / CE Low Voltage 2006 / 95 / CE Electromagnetic Compliance... -
Page 4: Characteristics Of The Device
The device has a conductivity probe for measuring the water quality. For the control of start / stop, the machine is equipped with a high pressure switch on the permeate. TECHNICAL SPECIFICATIONS OSMO-MAXI STANDARD TECHNICAL SPECIFICATIONS Height x Width x Depth (mm) (without fittings) 143x450x456... -
Page 5: General Dimensions
Recovery percentage (%) see the table that follows Nominal rejection (%) 95 * AUTONOMY AND CONDITIONS OF REPLACEMENT Activated carbon filter Profine® BLUE small (l) 6 months or 140 hours in operation with chlorine < 0.2 ppm ** Reverse osmosis membrane UP TO OBSTRUCTION ** WARNING * Percentage of dissolved salts and other rejected elements is affected by the quality of... -
Page 6: Transport
TRANSPORT WARNING Transport the equipment in its original packaging, in vertical position, properly secured on a pallet that has appropriate size and capacity. INSTALLATION WARNING Equipment installation must be performed by qualified technical personnel; detailed instructions for installation are in the “Technical Manual ". User should not perform equipment installation. -
Page 7: Functioning
FUNCTIONING NORMAL USE WARNING The first start of the device must be performed by the installer that checks its proper operation. For normal use of the equipment you need to keep it always on, with by-pass valve in the rear in "OPEN" position. -
Page 8: Inactivity
INACTIVITY WARNING At the end of the day, close the inlet water valve and disconnect the power plug. If the machine remains idle for a period longer than a week, fill and empty the washing tank. Perform the sanitation of the equipment during extraordinary maintenance operations, or ... -
Page 9: Electronic Board Operation
ELECTRONIC BOARD OPERATION 5.9.1 Visualisation during supply When the board is in normal operating mode, the name Osmomaxi uS/cm of the equipment or of the dealer is displayed. 0050 Pressing the key the instantaneous conductivity is displayed. 5.9.2 User menu With board in standby mode, you can scroll the menu with keys;... -
Page 10: Routine Maintenance (User)
ROUTINE MAINTENANCE (USER) MAINTENANCE PLAN The plan for the routine maintenance described in this paragraph shall be made in according to the schedule provided by the user to maintain efficient machine operation and to ensure the quality of water treatment. WARNING The user can only perform the operations described below. -
Page 11: Troubleshooting (User)
TROUBLESHOOTING (USER) Problem: The display does not turn on. Cause Solution No electricity supply Make sure the plug is inserted and there is electricity supply. Board in “OFF” position. Press ON-OFF switch Internal electrical fault. Unplug, turn the valve in "By-pass" and call the assistance service. Problem: Intervention of fuse or protection thermal switch. - Page 12 Problem: The machine produces little water, the dishwasher indicates "A1" alarm Cause Solution Clogged filter. Check the pressure downstream of the filter, if clogged, replace it. Turn the bypass valve in “OPEN” position, see § 5.2. Bypass valve in "CLOSE" position.
-
Page 13: Disposal (User)
DISPOSAL (USER) The packaging must be disposed of in accordance with its waste code of the material. Paper and cardboard (EWC 15 01 01), plastic (EWC 15 01 02), wood (EWC 15 01 03). The filters and exhausted osmotic membranes must be disposed as municipal solid ... - Page 14 Manuale Utente Osmomaxi ENG 2014-02-24 - 30 -...
