Summary of Contents for Vello Retro Storm FG740

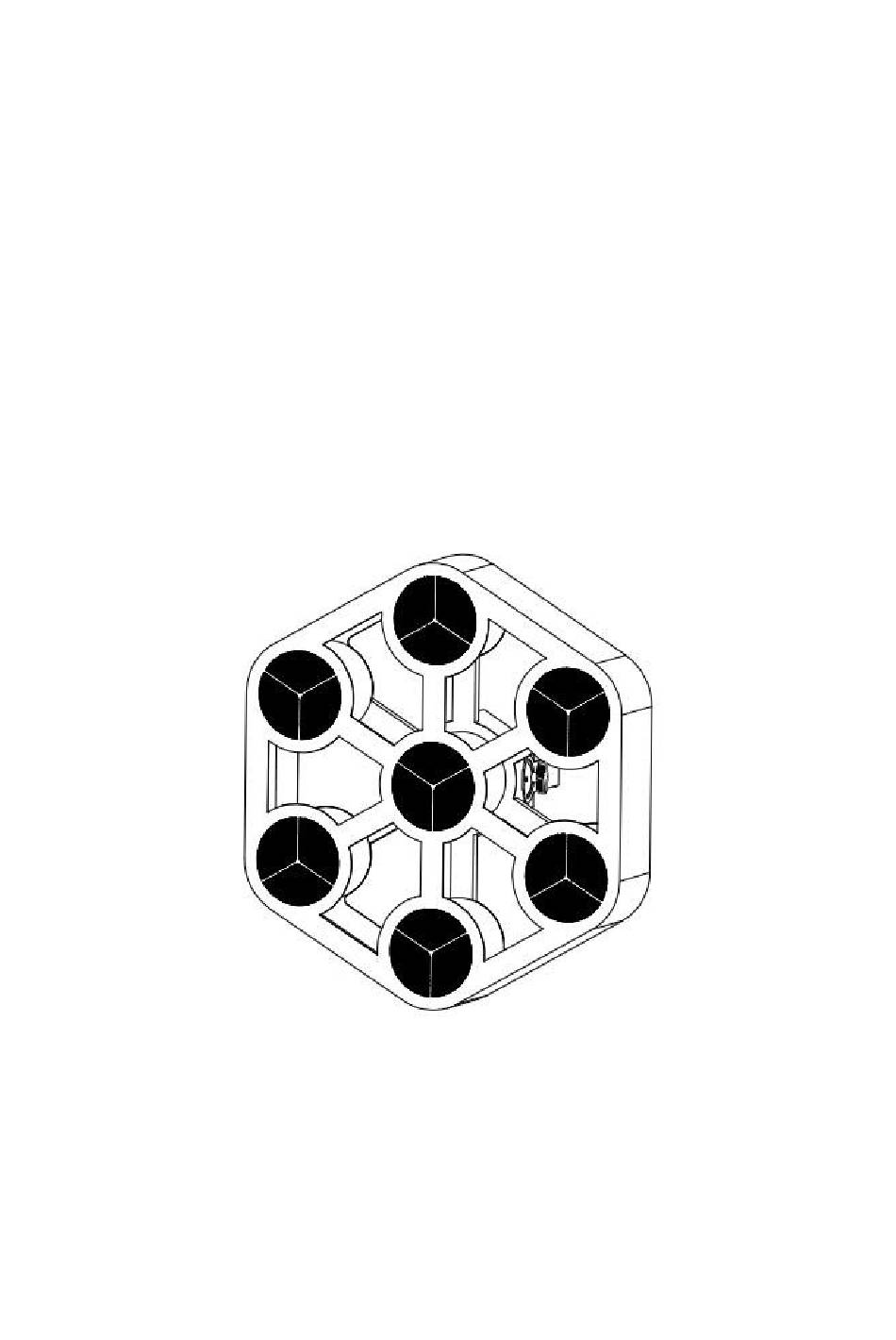

- Page 1 Instruction Manual PROFESSIONAL SHOW LIGHT Retro Storm FG740(RGBW) --------------------------------2022Ver22.05.27----------------------------------...
- Page 2 Unpacking: Thank you for purchasing FG-740, Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.
- Page 3 ⚫ Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See “Cleaning” for details. ⚫ Heat -The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. ⚫...
- Page 4 Operating Modes: You can use the FG-740 in 4 ways: ⚫ Auto Mode - The unit will automatically chase through the different colors and built-in programs. ⚫ Slave Mode – The unit will run under slave mode. ⚫ DMX control mode - This function will allow you to control each individual fixtures traits with a standard DMX 512 controller.
- Page 5 DMX Chart 11CH 13CH 35CH Function DMX Value Description Dimmer 0-255 0-100% 0-19 No Effect Strobe 20-255 Strobe Slow-Fast Red1 0-255 0-100% Green1 0-255 0-100% Blue1 0-255 0-100% White1 0-255 0-100% Red7 0-255 0-100% Green7 0-255 0-100% Blue7 0-255 0-100% White7 0-255 0-100%...
- Page 6 151-170 R 100%-0 , G 100%-0 , B 100% 171-200 R 100%,G 100%, B 100% 201-205 Color 1 206-210 Color 2 211-215 Color 3 216-220 Color 4 221-225 Color 5 226-230 Color 6 231-235 Color 7 236-240 Color 8 241-245 Color 9 246-250 Color 10...
- Page 7 101-105 Show19 106-110 Show20 111-115 Show21 116-120 Show22 121-125 Show23 126-130 Show24 131-135 Show25 136-140 Show26 141-145 Show27 146-150 Show28 151-155 Show29 156-160 Show30 161-165 Show31 166-170 Show32 171-175 Show33 176-180 Show34 181-185 Show35 186-190 Show36 191-195 Show37 196-200 Show38 201-205 Show39 206-210...
- Page 8 2. Clean the external optics with glass cleaner and a soft cloth every 20 days. 3. Always be sure to dry all parts completely before plugging the unit back in. Cleaning frequency depends on the environment in which the fixture operates ( smoke, fog residue, dust, dew). Parameter: Model name: Retro FG-740 Power consumption：300W...
