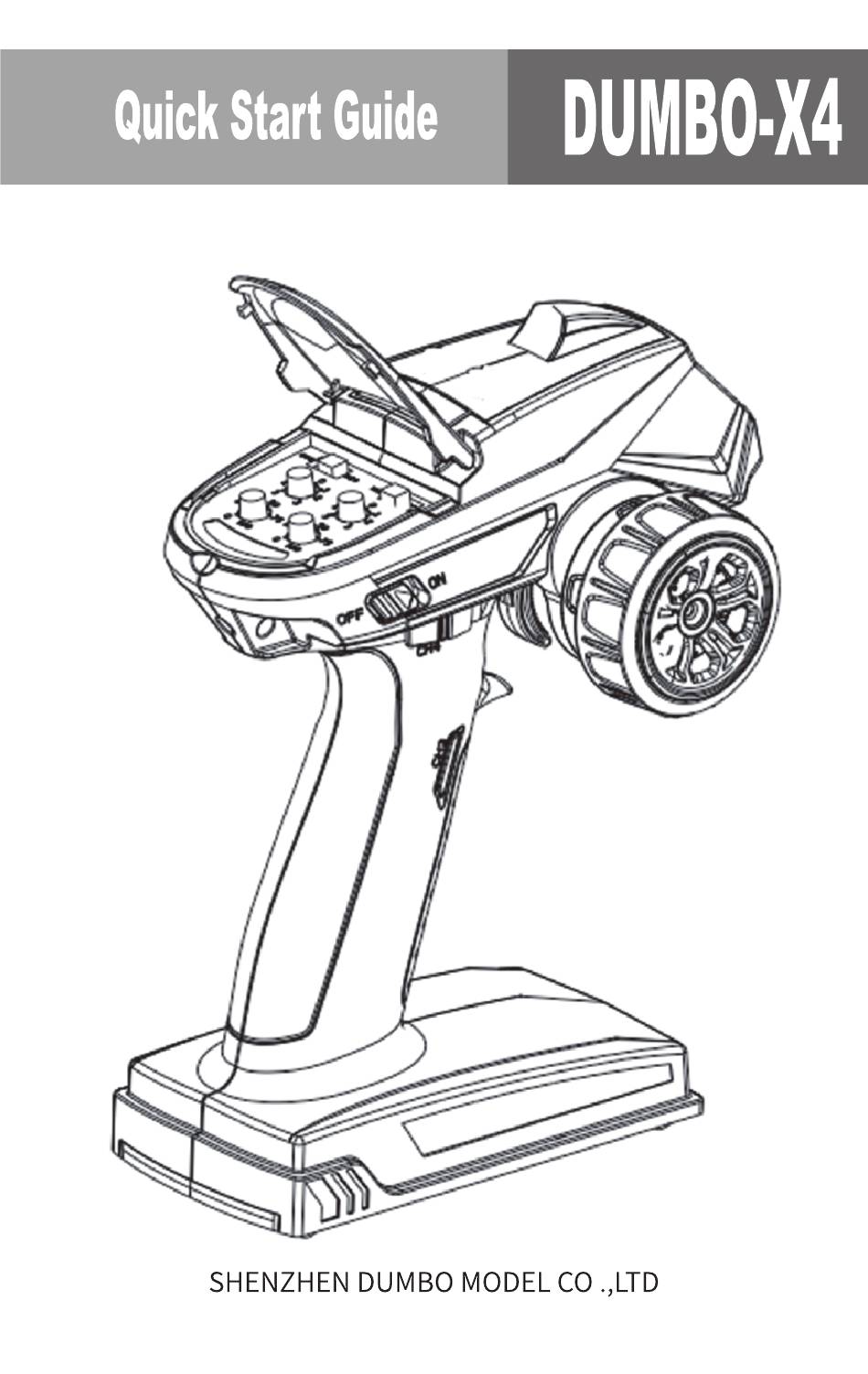

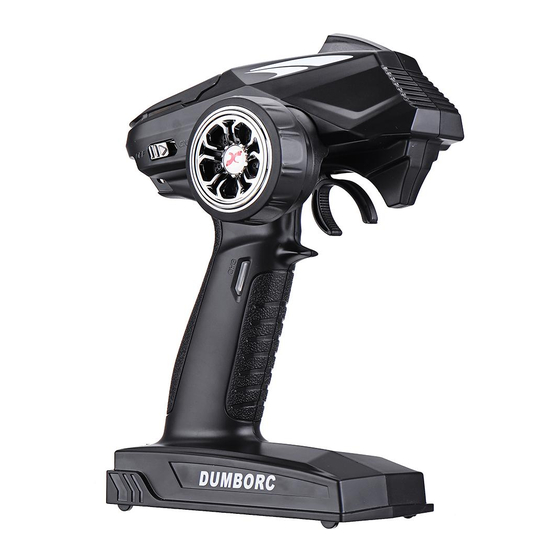

- Page 2 1. 2.4G technology, FHSS 67 channels frequency-hopping spread spectrum, highly resistant to anti-jamming. 2. Receiver response time is 3ms, ensuring a fast response and better control. 3. Smooth and highly sensitive to control inputs and stable at distances from 400-500m. 4.
- Page 3 Simulator /PPM interface USB Connection (only for 5v) CH1:Reverse for steering CH2:Reverse for throttle CH1:Sub-trim for steering CH2:Sub-trim for throttle CH1:EPA for steering CH2:EPA for throttle Note: 1>Reverse This function reverses the direction of operation of the servos related to transmitter steering and throttle.
- Page 4 >Four kinds of LED indicators: 1>General control mode for ordinary vehicle: Blue light is always on. 2>Mixed direction control mode for tank: Red light is always on. 3>Low voltage warning: The indicator light flashes slowly. 4>Enter the menu settings mode: The indicator light flashes quickly.
- Page 5 Step Two： The range setting of Channel 1 and Channel 2 The range of the forward and backward rotation of the direction wheel indicates the setting of the range of the servo. The range of the forward and backward of the throttle trigger indicates the forward and backward range.
- Page 6 2.Turn on 3.After the LED light flashes, pull the trigger backward to the maximum. Release the trigger after the LED light changes color. 1.Turn the wheel and trigger forward to the maximum at the same time Connect the two ESC signal lines to the Channel 1 and Channel 2 of the receiver. Under the mixed mode, the trigger moves backward and forward to control the rotation of the two motors.
