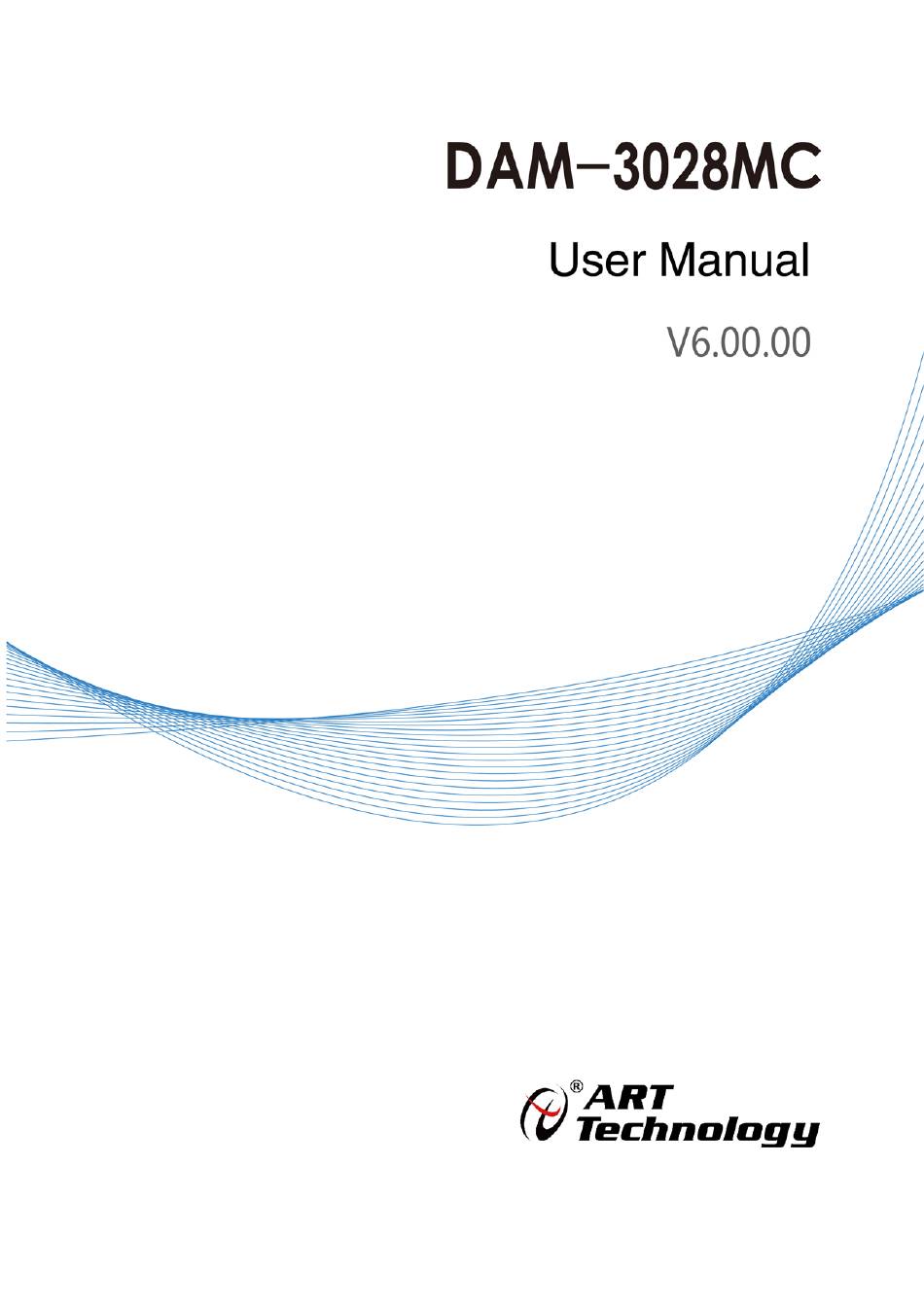

ART Technology Development DAM-3028MC User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAM-3028MC and is the answer not in the manual?

Questions and answers

Related Manuals for ART Technology Development DAM-3028MC

Summary of Contents for ART Technology Development DAM-3028MC

  • Page 2 Preface The copyright belongs to ART Technology and may not be reproduced in mechanical, electronic or any other way without permission. The company reserves the right to make changes to this manual, and the product will be subject to subsequent changes without prior notice. Disclaimer Before ordering the product, please check with the manufacturer or dealer for details on whether the product performance meets your needs.

  • Page 3: Table Of Contents

    Content 1 Product Description ..................3 1.1 Overview ......................... 3 1.2 Product Outline ....................... 3 1.3 Product Size Chart ......................4 1.4 Main Indicators ....................... 4 1.5 Module Instruction ......................7 2 Configuration Instructions................11 2.1 Code Configuration Table ..................... 11 2.2 MODBUS Address Allocation Table ................

  • Page 4: Product Description

    1 Product Description 1.1 Overview DAM-3028MC is 8-channel isolated digital input and 8-channel C-type signal relay output module, and it supports RS485 communication interface and standard ModbusRTU protocol. It is equipped with a good human-computer interface, so it is easy to use and its performance is stable.

  • Page 5: Product Size Chart

    1.3 Product Size Chart Figure 2 1.4 Main Indicators 8-channel digital input/output module Analog Input 8 single-ended digital inputs (dry contact or wet contact common Input Channel anode) Dry contact: logic level 0: INx and IN.GND shorted Logic level 1: INx open circuit or floating Wet Contact: Logic Level 1: IN.COM Input Voltage: 0~+3V (Max) INx is connected to the negative terminal of the input Digital Input Voltage...
  • Page 6 Counter/Frequency Input 0~400Hz Range Others Support DI reverse function and signal filtering function Digital Output 8-channel C-type signal relay, normally open + normally closed Channel contact Rated Control Capacity Ag+Au clad (silver+gold cladding) (Resistive Load) Note 1 Contact maximum 2A, 30V DC allowable current (resistive load) Contact...
  • Page 7 Note： 1. Resistive Load: The maximum value of all parameters of the relay is realized when the load is resistive load. Resistive load means the load that iodine tungsten lamp, incandescent lamp, resistance furnace, oven, electric water heater, etc. will not cause voltage and current phase changes. 2.

  • Page 8: Module Instruction

    1.5 Module Instruction 1、Terminal Definition Table Table 1 Terminal Name Explanation DC power input ground DC positive power input, +10～+30VDC RS-485 interface signal negative DATA- RS-485 interface signal is positive DATA+ Reset terminal, short-circuit with GND pin to reset INIT* after power-on no connection no connection...
  • Page 9 RL5NO Relay output 5 channels normally open RL5COM Relay output 5-channel common terminal RL5NC Relay output 5 channels normally closed RL6NO Relay output 6 channels normally open RL6COM Relay output 6-channel common terminal RL6NC Relay output 6 channels normally closed RL7NO Relay output 7 channels normally open RL7COM...
  • Page 10 When INIT is short-circuited and powered on, the indicator light flashes 3 times quickly. 6、Digital Input and Output Wiring Dry contact signal wiring: IN0+ IN.GND DAM-3028MC Figure 6 Wet Contact Common Cathode Wiring: INCOM +10-30V DAM-3028MC...
  • Page 11 RLxNO RLxCOM RLxNC Figure 8...

  • Page 12: Configuration Instructions

    2 Configuration Instructions 2.1 Code Configuration Table 1、Baud Rate Configuration Code Table Table 2 代码 0x0000 0x0001 0x0002 0x0003 0x0004 0x0005 0x0006 0x0007 波特率 1200 2400 4800 9600 19200 38400 57600 115200 2.2 MODBUS Address Allocation Table 1、DI status and control information are shown in Table 3: Support 0x1, 0x5 and 0xF function codes Table 3 Address0X...
  • Page 13 10138 DI7 counter enable Read and write Ditto Reserve 10266 DI0 counter clear Read and write 0=default, no action, 1=clear count 10267 DI1 counter clear Read and write Ditto 10268 DI2 counter clear Read and write Ditto 10269 DI3 counter clear Read and write Ditto 10270...
  • Page 14 10591 DI0 reverse Read and write 0=do not reverse, 1=reverse 10592 DI1 reverse Ditto 10593 DI2 reverse Ditto 10594 DI3 reverse Ditto 10595 DI4 reverse Ditto 10596 DI5 reverse Ditto 10597 DI6 reverse Ditto 10598 DI7 reverse Ditto Reserve 10656 DO0 power-on value Read and write 0=disconnected, 1=connected...
  • Page 15 Bit7_Bit 0 Module address, range 1~255. eg.: 01 40134 Module baud rate Read and write eg.：0x0003-9600bit/s, see Table 2 for other baud rates 40135 Parity check selection Read and write 0x0000: no verification; 0x0001: even parity; 0x0002: odd parity; Reserve 41601 DI0 working mode Read and write...
  • Page 16 41681 DI7 count initial value high 16 Read and write Ditto bits Reserve 41795 DI0 count value lower 16 bits read only lower 16 bits 41796 DI0 count value high 16 bits read only high 16 bits 41797 DI1 count value lower 16 bits read only Ditto 41798...
  • Page 17 41934 DI5 high level filter width low 16 Read and write Ditto bits 41935 DI5 high level filter width high 16 Read and write Ditto bits 41936 DI6 high level filter width low 16 Read and write Ditto bits 41937 DI6 high level filter width high 16 Read and write Ditto...
  • Page 18 42067 DI7 low level filter width low 16 Read and write Ditto bits 42068 DI7 low level filter width high 16 Read and write Ditto bits Reserve 42182 DO0 working mode Read and write Bit3- Bit0: module working mode 42183 DO1 working mode Read and write 0: immediate output mode...
  • Page 19 42260 DO6 pulse high level time high Read and write 16 bits 42261 DO7 pulse high level time low 16 Read and write bits 42262 DO7 pulse high level time high Read and write 16 bits Reserve 42376 DO0 pulse low level time low 16 Read and write Ditto bits...
  • Page 20 configured 42506 DO0 fixed pulse output number Read and write 0~0xFFFFFFFF, when high 16 bits configured as 0, the module 42507 DO1 fixed pulse output number Read and write continuously outputs pulses until lower 16 bits the user clicks to stop. When 42508 DO1 fixed pulse output number Read and write...
  • Page 21 pulse outputs does not increase. 42639 DO2 increases the number of Read and write pulse output by high 16 bits 42640 DO3 increases the number of Read and write pulse output low 16 bits 42641 DO3 increases the number of Read and write pulse output by high 16 bits 42642...
  • Page 22 42772 DO4 low to high delay time high Read and write 16 bits 42773 DO5 low to high delay time low Read and write 16 bits 42774 DO5 low to high delay time high Read and write 16 bits 42775 DO6 low to high delay time low Read and write 16 bits...

  • Page 23: Modbus Communication Example

    42905 DO6 high to low delay time high Read and write 16 bits 42906 DO7 high to low delay time low Read and write 16 bits 42907 DO7 high to low delay time high Read and write 16 bits Reserve 40514 Safe communication overtime Read and write...
  • Page 24 Example: The address of 3028MC module is 01, search module Host sends：01 00 80 00 07 CRC check device address function code register address 00129 number of register Device return：01 3028 4D 43 2b 20 06 00 00 01 00 03 00 00 CRC check device address function code...
  • Page 25 9、Error Response If the address and check bits are correct, but the register address in the command is not within the 1.2 DAM-3028MC address protocol range, so the device returns an error command. No other error conditions are returned. Error command format: device address + error code (0x80 + function code) + exception code (0x02) +...

  • Page 26: Factory Default State

    Power-on value: 0 Safe value: 0 2.5 Installation Method DAM-3028MC module can be easily installed on DIN rails and panels， which is convenient for users. Signal connections can be made using plug-in screw terminals for easy installation, modification and maintenance.

  • Page 27: Software Instructions

    +10V- +30V. Connecting the communication line: DAM-3028MC is connected to computer through RS485 bus. Restore factory settings: In the case of power failure, short-circuit INIT* and GND, the module indicator flashes rapidly 3 times after power-on, and after the flashing stops, disconnect the short-circuit wire, power on again, and the module is reset.
  • Page 28 Figure 10 Click the module information to display the configuration information interface, double-click the module address information on the left, the following interface will appear, then change the baud rate, address, parity of the module, click the modify button to complete the communication port configuration, and search for the module again.
  • Page 29 The corresponding configuration is completed when the search is successful. DI working mode: DI input, count, low to high latch, high to low latch, frequency. Figure 12 ① DI input: The input state changes in real time. If input low level (0~+3V or ground), the input status is green, and it input high level (+10V~+30V or open circuit) , the input status is red.
  • Page 30 Figure 13 ② Counting: The counting frequency is 0~400HZ, the initial value of the count is the initial accumulation value, and the accumulation starts from 0 by default, and the maximum count value is 4294967295. The overflow flag is displayed as 1 after exceeding, and the exceeding value will be accumulated from 0.
  • Page 31 ④ High to low latch: When the input high level changes to low level, the latch state turns red, the input state is low level, and the latch state can be cleared. The reverse signal is the same as the DI input. Figure 15 ⑤...
  • Page 32 ① Immediate output: The host computer controls the output state, and the module responds immediately, that is, the host computer control output and the module output state are synchronized, and the cycle is consistent. Figure 17 ② Low to high delay output: Change the output state after setting the delay time. When the output is from low level to high level, the output signal time will be extended according to the set parameters.
  • Page 33 When only "Add Count" is set and click "Add", the module only outputs the added pulse count. Just click the output status icon, the module will output a complete pulse according to the set output parameters. Just click the pulse output stop button, the module will output a complete pulse according to the set output parameters.
  • Page 34 communication time to 5s, set the power-on value to 01 (HEX), and set the safety value to 0f (HEX). After disconnecting communication for more than 5s, read back the output status. As shown in the figure: Figure 22...

  • Page 35: Product Precautions And Warranty

    When using the DAM-3028MC, it should be noted that the IC chip on the front of the DAM-3028MC should not be touched by hand to prevent the chip from being damaged by static electricity.
