LUMILIGHT
™
DESIGNER FRAME
INSTRUCTIONS
• Frame should be anchored into wood or metal backing to
support the weight of the unit.
• The Lumilight designer frame comes pre-drilled with 11/16"
diameter holes: 24" × 24" (4 holes), 36" × 36" (4 holes), 48" ×
48" (6 holes). Anchor screws not included.

WALL MOUNTING WITH SCREWS

FRAME FRONT
FRAME BACK
Power Cable and driver
© Copyright Lumicor 2014 – All Rights Reserved. For more information, visit www.lumicor.com or call 1.888.LUMICOR.
To install Lumicor panel in the designer frame:
• Frame front cover flips open.
• Place Lumicor decorative resin panel inside frame.
• Close cover to secure Lumicor panel in the designer frame.

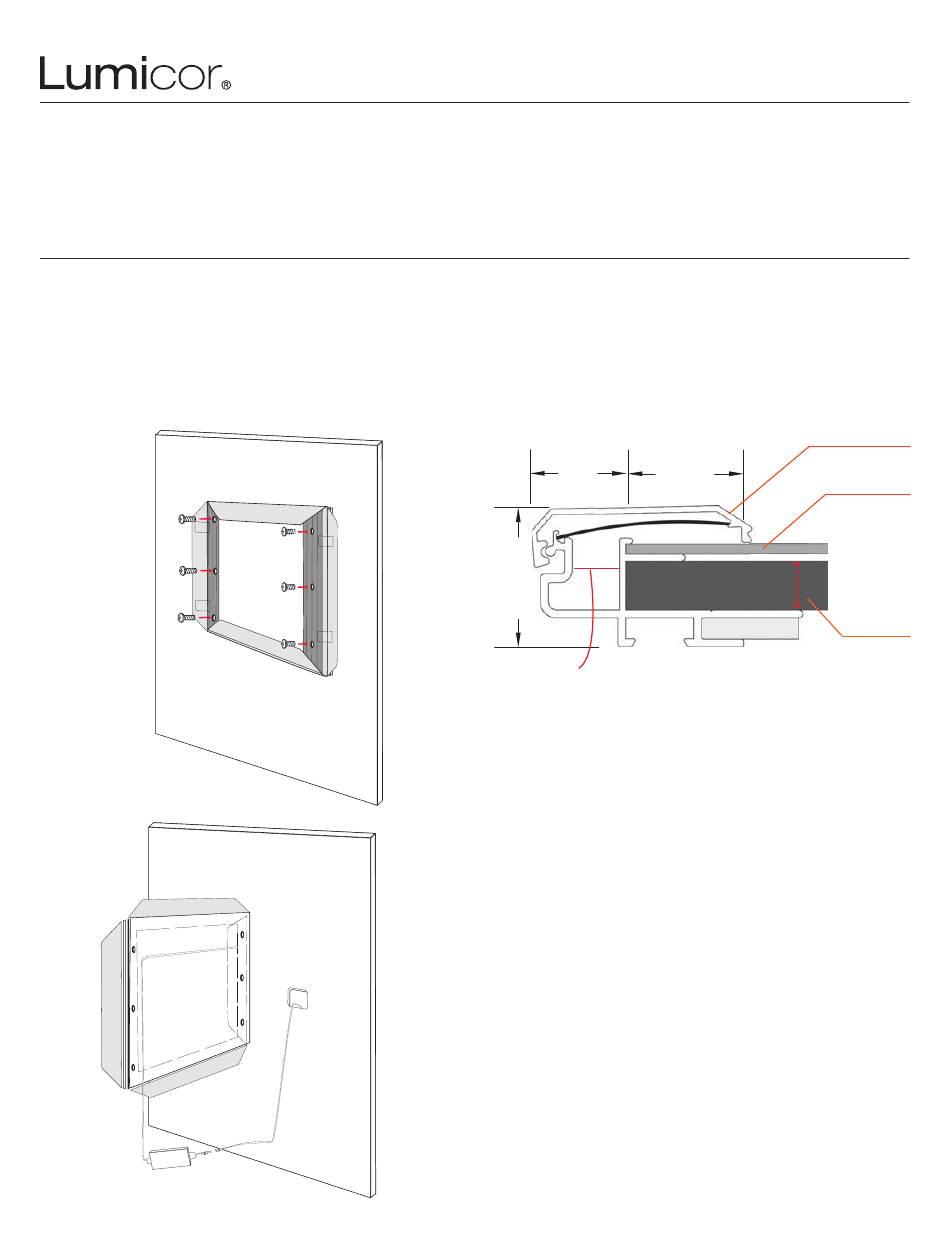

SECTION DETAIL
7/8"
(16 mm)
(22 mm)
1"
(25.4 mm)
9/16"
(14 mm)
INSTALLATION GUIDE
Flip Over Cover
5/8"
Lumicor Panel
5/16" (8 mm)
Lumilight Panel
Lumilight Installation Guide
™
