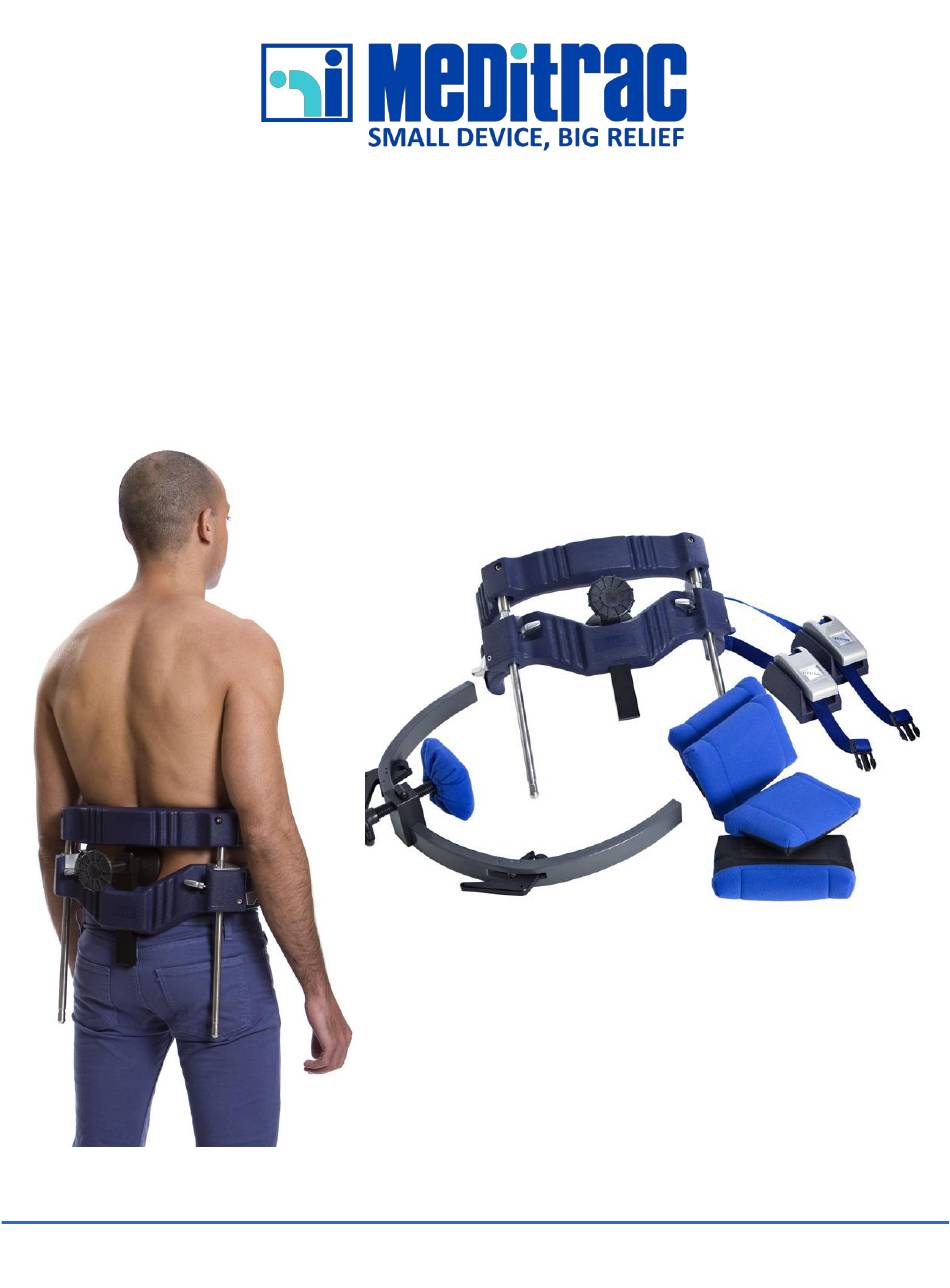

Vertetrac and DBS
User Manual
© All rights reserved to Meditrac Ltd.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vertetrac and DBS and is the answer not in the manual?

Questions and answers

Related Manuals for Meditrac Vertetrac and DBS

Summary of Contents for Meditrac Vertetrac and DBS

  • Page 1 Vertetrac and DBS User Manual © All rights reserved to Meditrac Ltd.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS: Introduction Parts of the Vertetrac Instruction for Use of the Vertetrac Notes on the Vertetrac Additional Options Treatment Sessions Recommended Treatment Techniques Care and Maintenance of Your Vertetrac Parts of the D.B.S. Instruction for Use of the D.B.S. Notes about the D.B.S.

  • Page 3: Introduction

    1. INTRODUCTION Congratulations on purchasing the latest concept in lumbar spine treatment – the Vertetrac. Offering safe, simple, compact, and effective treatment of lumbar spine disorders, the Vertetrac brings to both the patient and physician a means of powerful, dynamic traction with simultaneous, three-dimensional action without the need for traction beds or restrictive braces.
  • Page 4 Contra-indications for use of the Vertetrac: • Do not allow contact between the device and open wounds. • Cauda Equina Syndrome • Pott’s Disease and all infective or inflammatory diseases of the vertebrae • Cardiac or circulatory disease and severe respiratory problems •...

  • Page 5: Parts Of The Vertetrac

    2. PARTS OF THE VERTETRAC 1. Upper frame 2. Lower frame 3. Traction release lever 4. Belt 5. Belt clips 6. Comfort pads...
  • Page 6 Horizontal pressure screw Horizontal pressure pad Horizontal pressure shaft Horizontal screw release button Ratchet Ratchet handle Traction rod Traction lever...

  • Page 7: Instruction For Use Of The Vertetrac

    3. INSTRUCTION FOR USE OF THE VERTETRAC Step 1: Begin with the Vertetrac in the “Zero Position” by inverting the Vertetrac unit on a horizontal surface and pressing the traction release levers and bringing the upper frame and lower frame to their closest possible position (Fig.
  • Page 8 Step 4: Begin adjusting the lower belt so that it fits tightly around the body. The lower belt should be sufficiently tight to prevent slipping of the apparatus during the treatment. It is recommended to center the ratchet horizontally on the belt, but this position may be changed as different patients may require a different position.
  • Page 9 Step 6: When horizontal force is recommended, place the horizontal force pad at the desired level – L3, L4, or L5 (Fig. 8). Apply horizontal force by turning the horizontal pressure screw clockwise to the point where the patient feels relief from leg pain (Fig.

  • Page 10: Notes On The Vertetrac

    4. NOTES ON THE VERTETRAC • Treatment session is 30 minutes, but may be varied slightly according to the tolerance of the patient. The patient should be examined every ten minutes and the traction increased when necessary. It is recommended for the patient to walk or participate in active exercises during the treatment session (i.e.

  • Page 11: Additional Options

    5. ADDITIONAL OPTIONS • Self Treatment The patient should be instructed in the proper and safe use of the Vertetrac. Once the patient is comfortable with the use and maintenance of the unit, the patient may begin performing self- treatment. The patient should follow a treatment schedule outlined by the physician.

  • Page 12: Treatment Sessions

    6. TREATMENT SESSIONS • It is recommended to apply treatment with the Vertetrac as soon as possible after the onset of pain and diagnosis by the administering medical professional. All treatments should be performed as outlined by the administering medical professional. •...

  • Page 13: Recommended Treatment Techniques

    7. RECOMMENDED TREATMENT TECHNIQUES • Malalignments of the apophyseal joints Only one or two treatments are needed. • Mild or moderate disc disorders, without sciatica Apply treatment immediately after onset of symptoms. A course of 12-15 daily treatment sessions is usually required. When the first treatment is applied two weeks or more after the onset of symptoms, or in cases with sciatica, 12 traction treatments are usually needed.

  • Page 14: Care And Maintenance Of Your Vertetrac

    In a clinical environment, it is recommended that spare sets of pads be kept on hand for convenience and comfort for the patient. You can order them from your D.B.S. and Vertetrac representative or directly from Meditrac.

  • Page 15: Parts Of The D.b

    9. PARTS OF THE D.B.S. 1. D.B.S. rail 2. Jaw clamps 3. Horizontal pressure screw 4. Horizontal pressure pad 5. Horizontal pressure bracket 6. Screw release button...

  • Page 16: Instruction For Use Of The D.b

    10. INSTRUCTION FOR USE OF THE D.B.S. Step 1: Remove the horizontal screw assembly of the Vertetrac by raising the upper frame and pulling the screw assembly upwards until it slides out of the lower frame. Place the horizontal screw assembly in the Vertetrac carrying case so that is readily available for the next use.
  • Page 17 Step 5: Adjust the vertical level of the D.B.S. rail and then make adjustments to the horizontal position of the horizontal pressure pad according to the patient’s condition (Fig. 13), using the guidelines regarding treatment duration and frequency as previously outlined. Center the D.B.S.
  • Page 18 Step 6: After treatment, carefully release the pressure of the pad by slowly turning the horizontal pressure screw counter-clockwise. After the pressure has been removed, release the traction forces of the Vertetrac according to the guidelines in the Vertetrac instructions. When the traction has been alleviated, open the jaw clamps and detach the D.B.S.

  • Page 19: Notes About The D.b

    11. NOTES ABOUT THE D.B.S. It is imperative that the administering physician carefully read and become familiar with the preceding section of Vertetrac User’s Guide before beginning treatment with the D.B.S. The treatment of idiopathic scoliosis depends upon a number of factors, including the physiological age of the patient, the size and location of the curve, and the progress of the curve.
  • Page 20 • Patients with curves of 30°-40° should begin D.B.S. treatment immediately, 3 times daily for 30 minutes until maturity of the spine is reached. Patients should continue to receive treatment 1-2 times daily for an additional 6 months, and once a day for 2-3 additional years. •...

  • Page 21: Care And Maintenance Of Your D.b

    • In a clinical environment, it is recommended that spare sets of pads be kept on hand for the convenience and comfort of the patient. You can order them from your D.B.S. and Vertetrac representative or directly from Meditrac.

  • Page 22: Contact Information

    Langenhagener Str. 71 D-30855 Hannover-Langenhagen Germany Meditrac's products carry the CE mark, FDA and ISO:13485 and are registered with the United States Food and Drug Administration. United States Federal Law permits the sale of these devices (within the US) by a doctor’s prescription only...
