MBE REMOTE EXAMINER User Manual

Table of Contents

Download this manual

Remote Examiner measures the level of radio frequency (RF) in the ranges:

- 100 – 1000 MHz (automotive central locking – keyless entry),

- 120 -140 kHz (ignition locks systems, powering RFID systems),

- Infra-Red (IR) presence and it's level.

SELECT

Power ON/OFF,

Mode selection

LED

Backlight ON/OFF

To turn ON – press shortly SELECT button. If you power Remote Examiner via USB socket device turnes ON automatically – with LED

backlight.

To turn OFF – press and hold SELECT button till you hear signal.

The device will be turn off automatically if it does not detect external input signals (RF and IR) for 45 approximately seconds – when

in battery powered mode. Remote Examiner does not turn OFF automatically when it is connected to USB power.

When in battery mode, you can find indicator of battery power level

You need to charge the battery when the indicator goes blank (there are no more vertical stripes). Battery power indicator does not

appear, when Remote Examiner is connected to USB.

REMOTE EXAMINER

User manual.

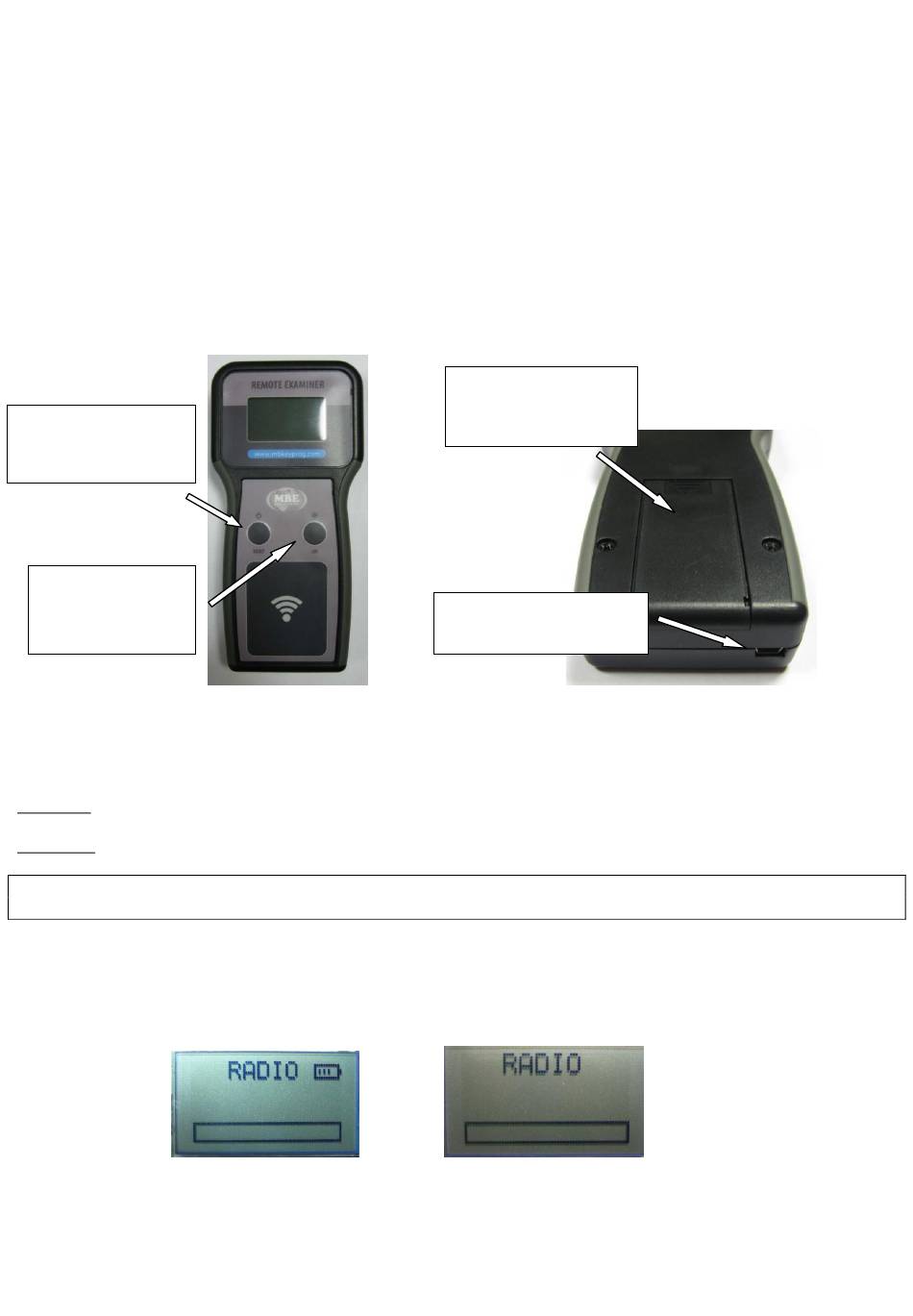

Main features

ONTROLS AND POWER SUPPLY

Battery compartment

Mini-USB socket – for

6F22 battery type

(or similar), 9 V

external power

Table of Contents

Do you have a question about the REMOTE EXAMINER and is the answer not in the manual?

Page 1 Turn device ON/OFF To turn ON – press shortly SELECT button. If you power Remote Examiner via USB socket device turnes ON automatically – with LED backlight. To turn OFF – press and hold SELECT button till you hear signal.
Page 2 That range of the radio transition is used to power RFID mounted in keys. To check that transmission simply select COIL mode. Place Remote Examiner near the testing source – as usually near ignition lock and turn ignition ON (see picture below). Frequency of the radio transmission and the level of a signal will be shown on LED if the ignition coil works properly.
