MBE Keymaker for MB trucks User Manual

Hide thumbs

AL BARAKA KEY TRADING

The "Keymaker for MB trucks" designed for:

new key programming using ECU EEPROM;

cloning of original key.

Supported car models: Mercedes Benz Actros, Atego, Axor, Econics.

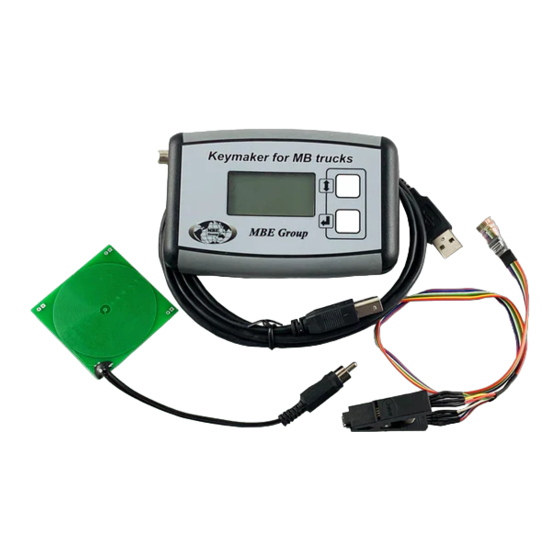

Programmer kit (Pic.1) contains:

1. Main adapter with LCD.

2. Antenna board.

3. Clips with cable for EEPROM reading.

4. USB type B cable .

Power supply: via USB cable from PC USB port. There is NO any communication between PC and

Device!

www.abk.ae

Keymaker for MB trucks

user's manual.

1. Introduction.

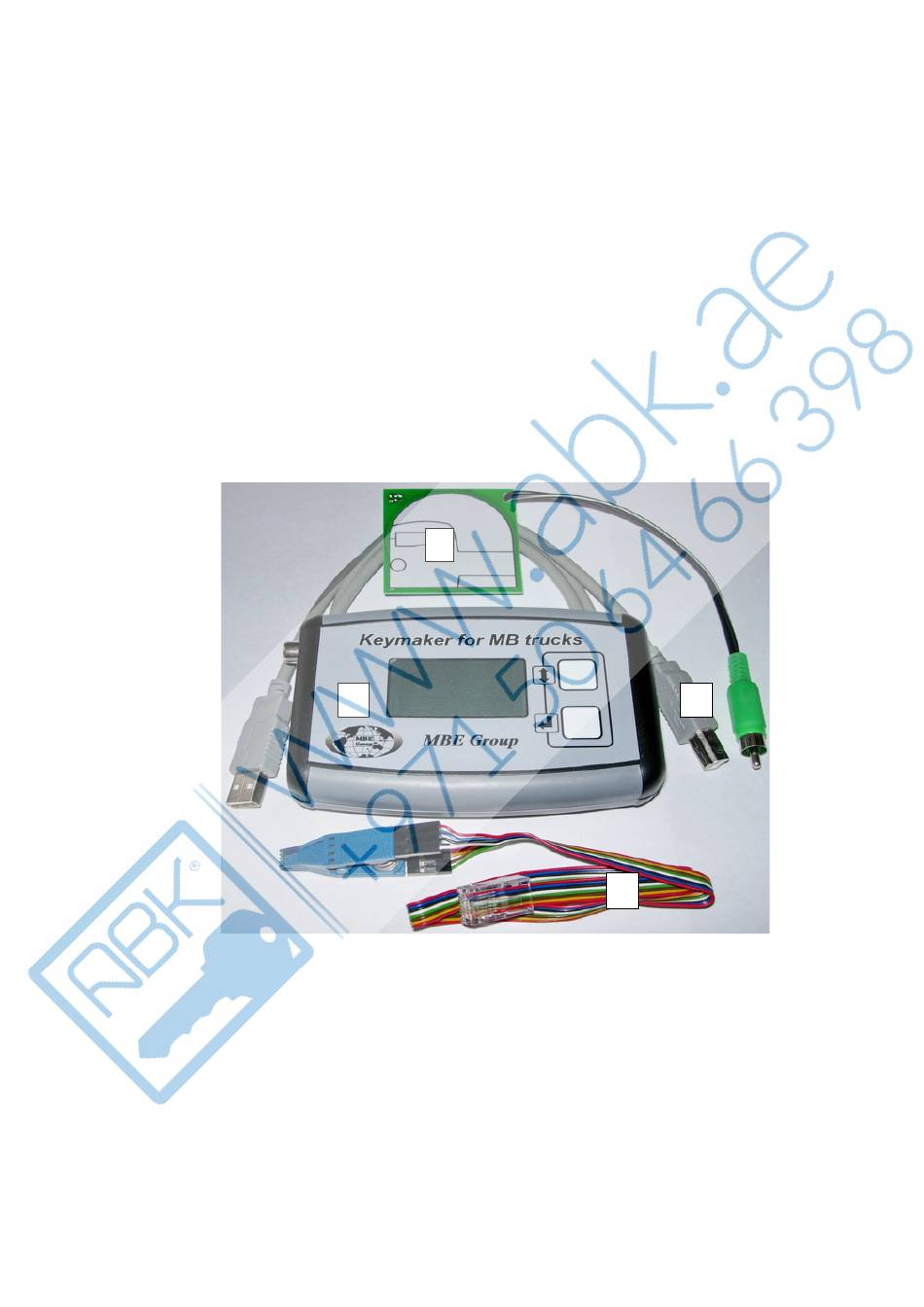

Pic.1. Programmer kit.

ABK-2557 MANUAL

sales@abk.ae

Table of Contents

Need help?

Do you have a question about the Keymaker for MB trucks and is the answer not in the manual?

Questions and answers

Summary of Contents for MBE Keymaker for MB trucks

Page 1 AL BARAKA KEY TRADING ABK-2557 MANUAL Keymaker for MB trucks user’s manual. 1. Introduction. The “Keymaker for MB trucks” designed for: new key programming using ECU EEPROM; cloning of original key. Supported car models: Mercedes Benz Actros, Atego, Axor, Econics. Pic.1. Programmer kit.
Page 2 AL BARAKA KEY TRADING ABK-2557 MANUAL 2. How to connect. Connect antenna cable and USB cable to according connectors of Main adapter. Plug in USB cable to USB port of PC. Now programmer is ready for working. 3. New key programming Prepare Programmer according (see point 1), connect clips to EEPROM microchip from ECU (clear it from vanish before it), wait of Main menu mode on LCD (pic.2).
Page 3 AL BARAKA KEY TRADING ABK-2557 MANUAL Pic.6. Transponder chip (keyblank) placed on Antenna board. Press button 2. You will see “WAIT..” (pic.7) during the programming. Pic.7 Transponder chip writing. Pic.8. Writing finished successfully. If transponder writing successfully finished “write ok”(pic.8) will appear on LCD. Press button 2 for go back to Main Menu.
Page 4 AL BARAKA KEY TRADING ABK-2557 MANUAL 4. Original key cloning. Prepare Programmer according (see point 1), wait of Main menu mode on LCD (pic.9). appearance of Pic.9. Main Menu. Pic.10. Select “COPY” line from Main menu with button 1 and press button 2 (pic.9). You will see Place Original on LCD(pic.10).
Page 5 AL BARAKA KEY TRADING ABK-2557 MANUAL Pic.13. Transponder has been written successfully. Cloning ERRORS If programmer detects errors during writing it reports about them on LCD. Use button 2 for going back to Main Menu for trying writing again. ERROR 5. Programmer can’t read original key, it’s possible there is no transponder inside the keyblank.
