Quandify CubicDetector QCD-01 Manual

Intelligent water detector
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Manual & Datasheet

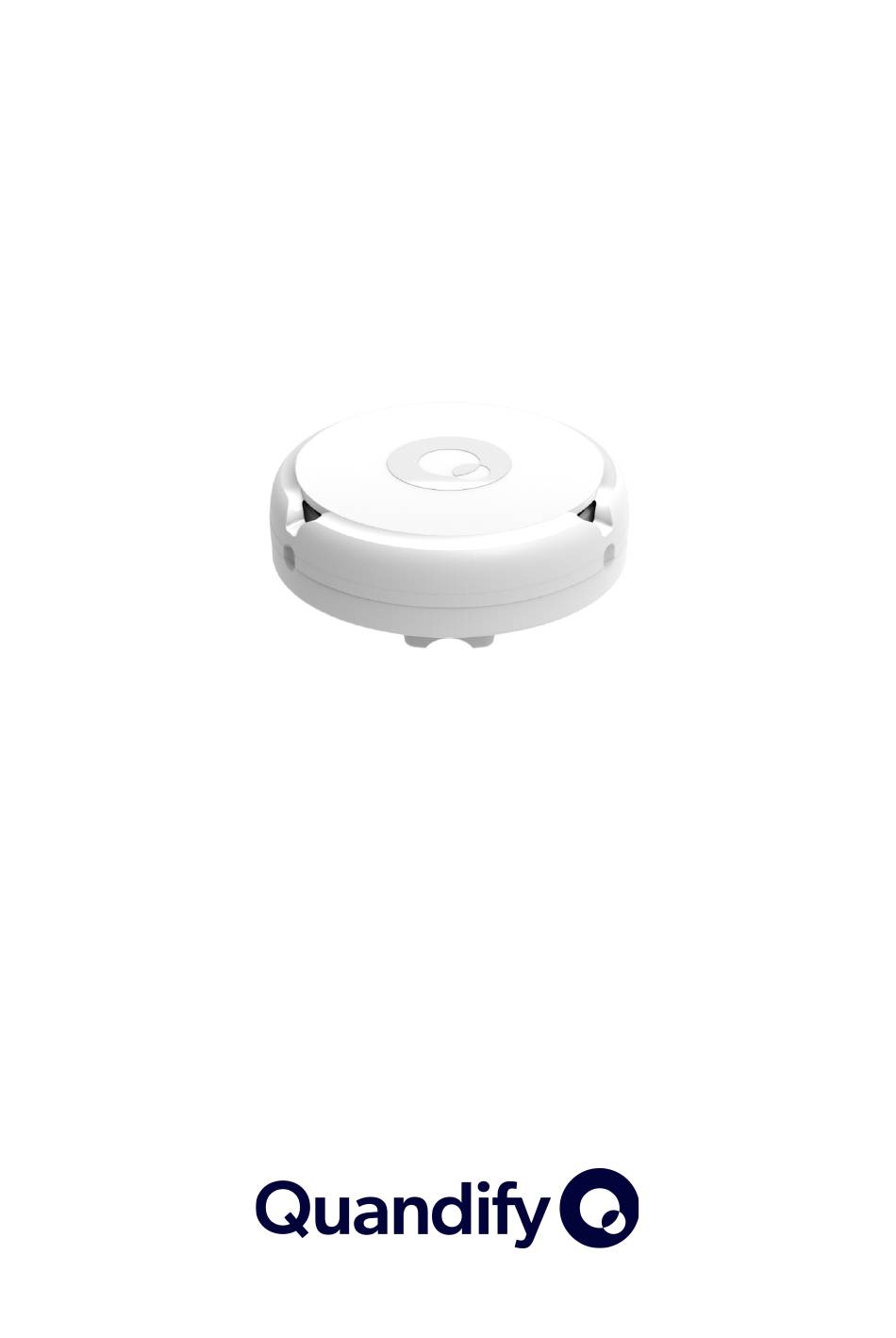

CubicDetector
QCD-01
Intelligent water detector
Detects and alerts for water leaks when in direct contact with water.
Measures temperature & humidity to warn from frozen pipes and mold risk
When used in conjunction with the CubicSecure, leaks can also trigger an
automatic water supply shut-off

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CubicDetector QCD-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Quandify CubicDetector QCD-01

Summary of Contents for Quandify CubicDetector QCD-01

  • Page 1 Manual & Datasheet CubicDetector QCD-01 Intelligent water detector Detects and alerts for water leaks when in direct contact with water. Measures temperature & humidity to warn from frozen pipes and mold risk When used in conjunction with the CubicSecure, leaks can also trigger an automatic water supply shut-off...
  • Page 2 To maximize protection, the device can automatically shut off the water supply in case of a leakage when used in conjunction with Quandify’s CubicSecure. The CubicDetector is easy to set up, and it requires no previous experience. This guide will assist you in getting your CubicDetector up and running.

  • Page 3: Package Contents

    INTRODUCTION PACKAGE CONTENTS CubicDetector - 1x ● CR123A Lithium cell included - 1x ● Optional wall mount with self-adhesive backing - 1x ● Wall mount screws - 2x ● Leak sensing cable - 1x ● Details are subject to change, check the latest version here. The company is not liable for possible errors and/or misprints.

  • Page 4: Installation Steps

    INSTALLATION GUIDE The wall mount and leak sensing cable is intended to be used for small spaces, such as under appliances. Installation steps: 1. Remove the top cover, by holding the CubicDetector in your hand, while twisting the cover counter clockwise. 2.

  • Page 5: Specifications

    SPECIFICATIONS Storage conditions: 5 °C ... 55 °C Environment: Indoor usage Temperature range: -25°C … 60°C Temperature accuracy: ±1.5°C Humidity range: 0 - 100 % RH Humidity accuracy ± 5 % Sound level: 85 dB Wi-Fi connectivity: 2.4 GHz Wi-Fi, (802.11bgn) Cloud data resolution: 30 min Weight:...
  • Page 6 STATUS & ALARM INFORMATION STATUSES LED PATTERN MEANING ACTION Normal operation when powered BLUE BLINKING Device is in pairing mode and is visible on Pair using smartphone Wi-Fi list PURPLE blinking Device is in abnormal operation mode Perform a factory reset 15s RED blinking on Device is in offline mode, Wi-Fi not used Perform a Wi-Fi reset to...

  • Page 7: Maintenance And Service

    MAINTENANCE & SERVICE If a unit is faulty, please contact your authorized distributor for further assistance. All service must be performed by an authorized Quandify service center. If external parts need to be replaced, only original manufacturer spare parts should be used.
