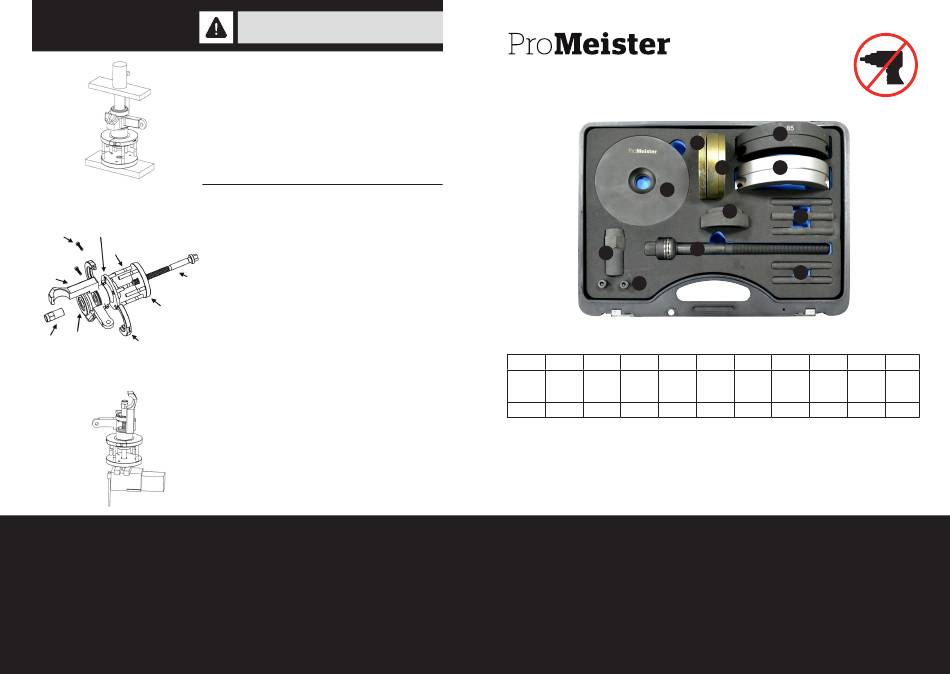

ProMeister PT5229 User Manual

Application
Fig 6 Wheel hub installation with the help of a workshop press
•
•
•
Fig 7 Installation of wheel bearing on wheel hub with threaded
spindle (4) and spindle nut (9)
Bearing
7
•
8
Wheel
•
4
Hub
•
1
5
9
2
Fig 8
Produced in Taiwan for
Bileko Car Parts AB
P.O. Box 542
S-645 25 Strängnäs, Sweden
Tel: +46 771 72 00 00
www.promeister.com
Please secure the separate parts properly!
Please lubricate the threaded spindle before each use!
Before pressing down the bearing with the plunge, please
make sure that all parts are aligned and centered. Then
press down the bearing with regulated pressure on the
wheel hubs with an internal diameter of 68mm.
First, insert the installation centering bushing (5) with
the diameter 68mm pointing towards the bore hole of
the wheel hub. Then slide the wheel bearing over the
installation centering bushing (5)
Place and press the bushing sleeve with regulated pressure.
Place the pressure plate (1) onto the opened vice jaws,
then place the wheel hub on the vice as shown in the
illustration.
On the wheel hub, an Installing Back-up ring (2) has to be
inserted on the side of the wheel hub as far as it will go.
Use the box wrench to turn the spindle nut until the wheel
bearing onto the wheel hub.
1
9
7
No. 1 2 3 4
Installing Removal
Pressure
Description Back-Up Back-Up Spindle
Plate
Ring Ring
Qty 1 1 1 1
User Guide
Wheel Hub Bearing Puller Set
Art. Nr: PT5229
3
10
5 2
6
8
4
8
5 6 7 8 9
Installing Removal
Screw Forcing Spindle
Centering Centering
M8x35L Bolt Nut
Bushing Bushing
1 1 2 5 1
10
VW T 5
Sleeve
1
RVNR-02
