Summary of Contents for Strong Racks SRTRB

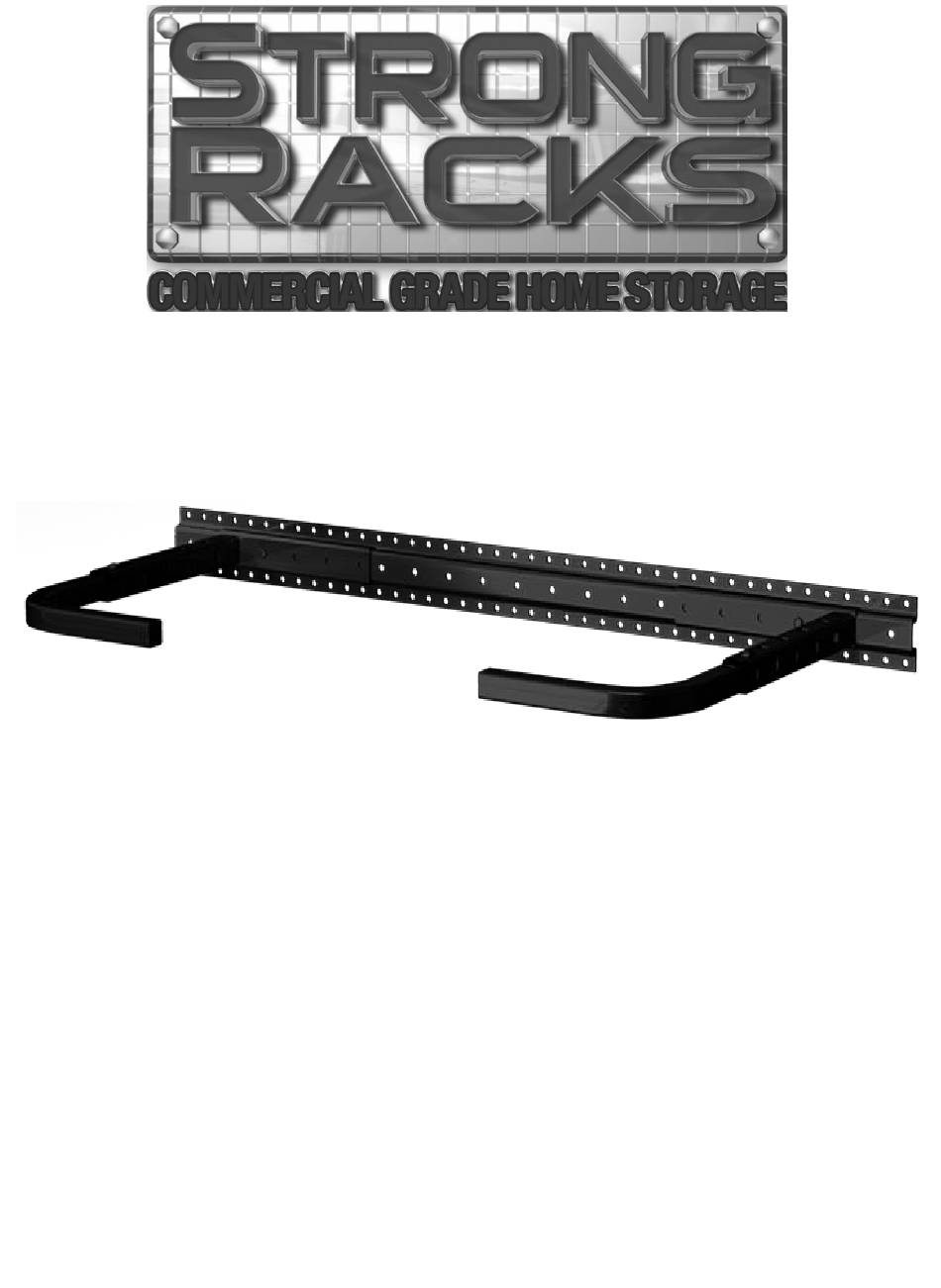

- Page 1 30” wide track Adjustable Tire Rack MODEL # SRTRB Patent Pending...
-
Page 2: Installation Support
Installation Support Please Do Not Return This Product To The Store! 1-877-717-RACK (7225) info@strongracks.com If there are any missing or damaged parts, please contact us immediately for replacement. In some cases, a new part can be shipped to you within 1-3 days. Our quality control members hand check every box prior to shipment. -
Page 3: Safety Information
Safety Information STOP: Ensure that you understand your ceiling support structure prior to installing. Ensure that you know your load prior to loading items on your ceiling storage system. Our products are designed for installation into properly constructed wood ceiling joists, TGI’s or floor joists. Do not install into metal studs or ceiling concrete floors. - Page 4 Safety Information You must read this entire manual before attempting to install this product. We also suggest you visit www.strongracks.com to review our installation video. If you have any additional questions or need to speak with an installation professional, do not hesitate to call us directly. We will provide timely responses to your questions.
-
Page 5: Required Tools
Required Tools Standard Electric Drill with 1/8” bit Socket Tape Stud Measure Finder and Pencil Optional Tools Electric Hammer Drill Metal Hack Saw We recommend that you use the Storage Locator Worksheet (Appendix II), to note where you would like to install our products. You can also draw out the position / direction of your ceiling trusses, as it relates to our systems. -
Page 6: Hardware Kit Contents
Hardware Kit Contents One unit Picture Letter and Name Quantity Large Carriage Bolt Small Nut Medium Bolt Large Nut Lag Screw Note: Extra hardware may be included in kit. -
Page 7: Part List
Part List One unit Part # and Name Picture Quantity Mounting Track Support Tube with C Channel Support Inner Tube (front tire support) - Page 8 Choose a rack location. For our example we will choose to the right of this doorway. Place a pencil mark at the height that is right for your storage needs. You should also identify if you are placing your tires in a horizontal or vertical position to each other.
- Page 9 Use stud finder to locate first stud that is the starting point. Work your way to the right to determine other stud locations. Your wall studs likely are 16” or 24” apart. Make sure to complete a written layout of the space required.
- Page 10 Hardware Required: Drill a pilot hole using ¼ inch drill bit. Align the top hole of the tire track with the pilot hole in the wall. Use a Lag Screw to secure bracket to wall. The lag screw should be snug, but the shelf bracket should remain loose enough to pivot slightly.
- Page 11 Hardware Required: Hold the level on to of the bracket. Ensure that the bracket is level. Drill pilot hole and use lag screw to secure bracket. Just like with the left side, the lag screw should be snug, but not tight. Now you can tighten both bolts.
- Page 12 Find the location of your second bracket: Measure 30 inches out from the previously installed bracket and make a mark (X) with your pencil. From that “X” work backward to locate the closest stud inside the area. Make sure to measure tires first.
- Page 13 Congratulations! Stand back and admire your completed Strong Rack. Now you can load your system. Refer to Appendix V for additional accessory options.
- Page 14 Appendix I – Understanding Your Ceiling Support Systems There are 4 standard type of roof structures: 1. Living Space above the garage area. 2. Flat roofs. 3. “Hip” / Truss roofs. 4. Traditional “Gable” roofs. “Flat” Roof Structure Living Space Above Garage “Hip”...
- Page 15 Appendix II – Storage Locator Worksheet...
-
Page 16: Appendix Iii - Proper Mounting
Appendix III – Proper Mounting • It is recommended to use a stud finder and physically inspect your crawl space to locate your truss direction. You can also make note of any electrical, plumbing or gas lines that may be around your truss system. •... - Page 17 Appendix IV – Need Installation Help? Visit www.strongracks.com to locate your nearest installer or watch our detailed installation video. Some homeowners prefer to stream this video in their garage while installing our products. While our installation videos provide a high level of detail, you must still thoroughly read through this installation guide prior to starting your project.
-
Page 18: Appendix V - Accessory Options
Appendix V – Accessory Options 18” x 36” Steel Wall Shelf Bike Adapter Wood Shelf Liner Ladder Hanger Purpose/Bike Hook...
