Summary of Contents for AV Pro Edge AC-DA18-AUHD-GEN2

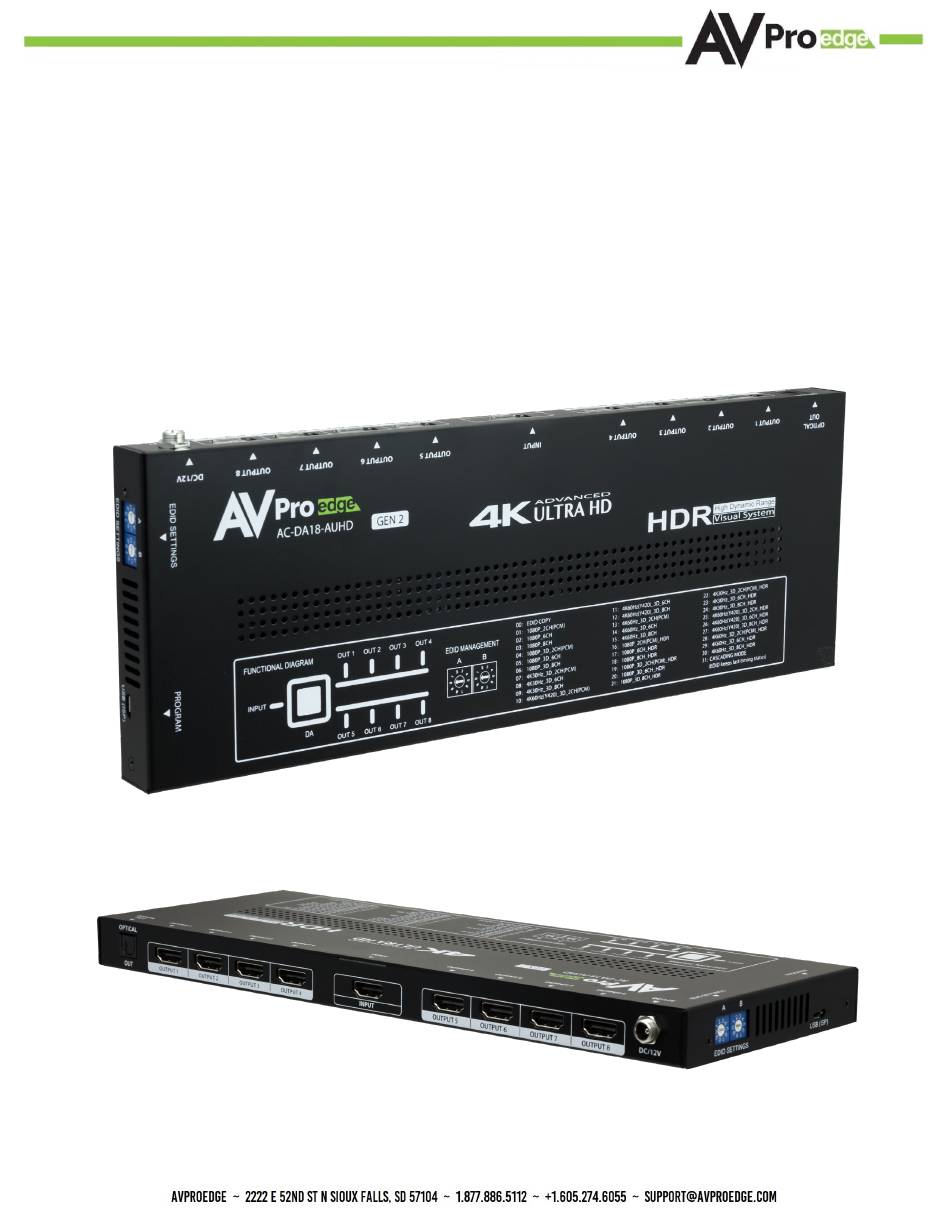

- Page 1 User Manual A full 4K60 4:4:4 (Up to 18GBPS) Distribution Amplifier with advanced EDID management AC-DA18-AUHD-GEN2...
-
Page 2: Table Of Contents
I N T R O D U C T I O N � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 F E A T U R E S �... -
Page 3: Introduction
Introduction The AC-DA18-AUHD-GEN2 is a part of the first true 18Gbps Distribution Amplifier Family. This is an ideal product on all applications where stable distribution is key. This distribution amplifier can be cascaded for extended distances and additional outputs. Full 18Gbps and HDR support ensures military grade stability even at the highest of bandwidths. -
Page 4: Specifications
Specifications... -
Page 5: Front Overview
Front Overview HDMI Output Status HDMI Input Status Indicator LEDs Indicator LED HDMI Status Indicator LEDs will have two states. • LED is ON - A source/sync is detected on that HDMI port. • LED is OFF - No source/sync is detected on that HDMI port. Back Overview Extracted Audio HDMI Outputs... -
Page 6: Top Overview
Top Overview Top of the device lists the available built in EDIDs. Default out of the box the rotary dials will be set to 00: EDID COPY. This will copy the EDID from the Sync device connected to the HDMI OUTPUT #1. -
Page 7: Side Panel - Edid Management
Side Panel - EDID Management The AC-DA18-AUHD-GEN2 uses a dual rotary style switches located on the side of the device to change the EDID settings. Default out of the box both will be set to 00: EDID COPY. This will copy the EDID from the sync connected to HDMI OUTPUT 1. -
Page 8: Extracted Audio
SET OUT1 EXA EN/DIS - See page(s) 10-11 for command list details. USB Control The AC-DA18-AUHD-GEN2 has a Micro USB port on the side next to the EDID Rotary Dials. You can connect using a windows computer and MyUart assist (available to download for free on www.avproedge.com/... -
Page 9: Command List
Command List · Baudrate: 57600 · Bit Num: 8 · Checksum: None · Stop Bit: 1... -
Page 10: T R O U B L E S H O O T I N
Troubleshooting • Verify Power - Check that the power supply is properly connected and on an active circuit. The front display screen should illuminate with a button press. The red HDMI activity light should be on for any active HDMI Input or HDMI Output(s). •... -
Page 11: M A I N T E N A N C
Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 12: S U P P O R
Support Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support. When calling, the following information should be provided: • Product name and model number • Product serial number •... - Page 13 RED TAPE. AVPro Edge is not responsible for untraceable purchases or those that were made outside of an authorized channel. If we conclude that a product or serial number has been tampered with as identified by warranty seal or physical examination the warranty will be void. Additionally, excessive physical damage (beyond normal wear &...
- Page 14 legal theory to the maximum extent permitted by law. Taxes, Duties, VAT, and freight forwarding service charges are not covered or paid for by this warranty. Obsolescence or incompatibility with newly invented technologies (after manufacture of product) is not covered by this warranty. Obsolescence is defined as: “Peripherals are rendered obsolete when current technology does not support product repair or re- manufacture.
- Page 17 Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com...
