2022.08.17

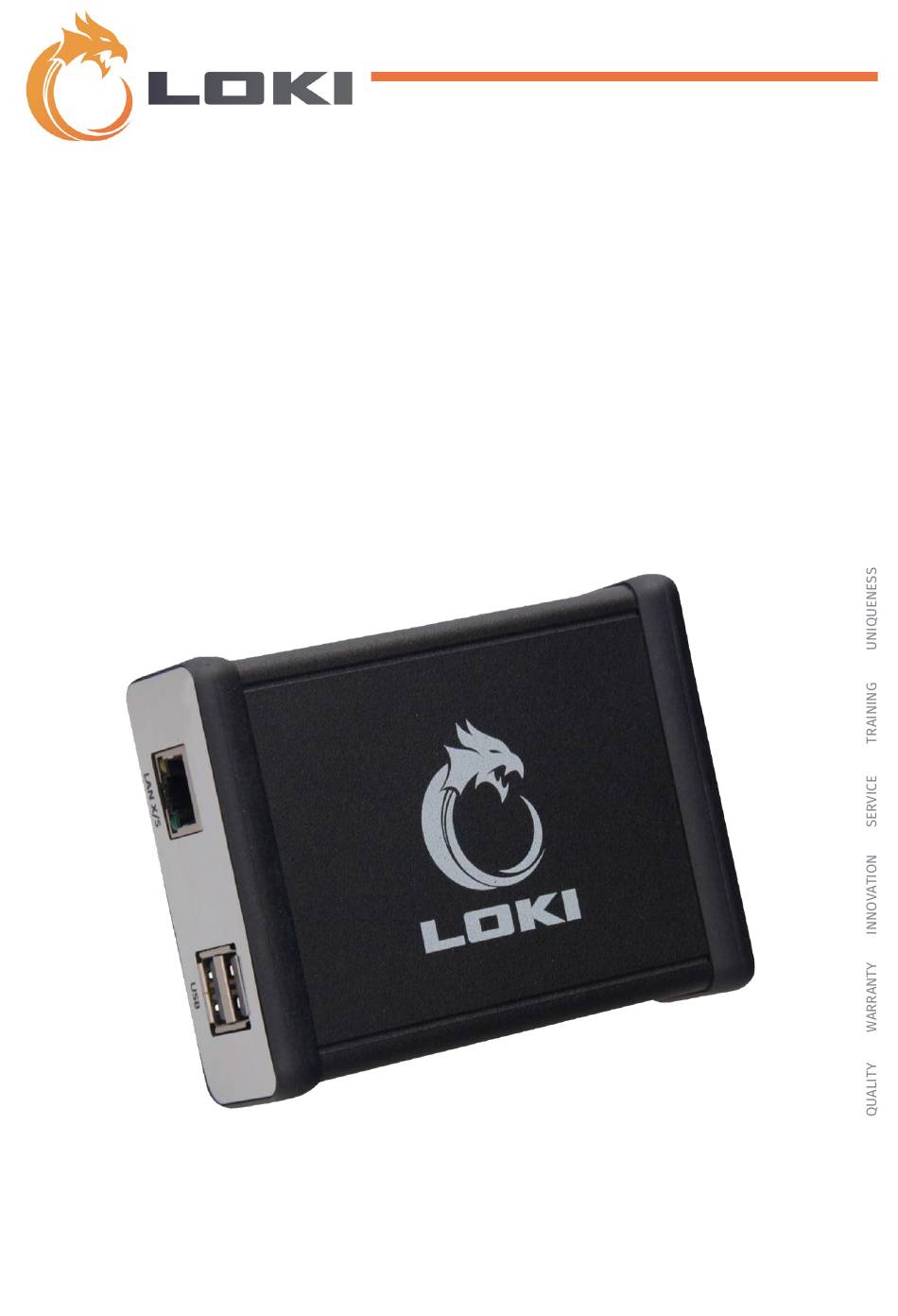

PLUGIN LOKI
KEY FOB PAIRING
FOR TESLA MODEL X FEATURE
USER GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the PLUGIN and is the answer not in the manual?

Questions and answers

Summary of Contents for LOKI PLUGIN

  • Page 1 2022.08.17 PLUGIN LOKI KEY FOB PAIRING FOR TESLA MODEL X FEATURE USER GUIDE...

  • Page 3: Table Of Contents

    English User guide CONTENTS INTRODUCTION ..............................1. CONNECTION TO THE VEHICLE ........................2. KEY PAIRING ..............................3. PREPARING THE PAIRING KEY (PROVISION) .................... 4. PAIRING THE KEY (PAIRING) ......................... CONTACTS ................................

  • Page 4: Introduction

    Plugin Key Fob Pairing for Model X Feature INTRODUCTION To key for pairing for Model X , the LOKI module, the LC003-CX cable, the clean key (or several) and BLE dongle with the activated plugin are used. Before turning on the module, you must connect BLE dongle to any port of the USB module.

  • Page 5: Connection To The Vehicle

    English User guide 1. CONNECTION TO THE VEHICLE The vehicle must be switched on, ignition is not necessary. After connecting the module with the LC003-CX cable, you must go to the key pairing window. If the connection is successful, a list of keys in the BCCEN module and data about the vehicle and dongle will be displayed.

  • Page 6: Key Pairing

    English Plugin Key Fob Pairing for Model X Feature 2. KEY PAIRING To connect to the key it is necessary to bring it to the module at a distance of up to 70cm (closer - better), and start a key search by the button "Start Key Discovery", after the dongle initialization, you need to double-click the front trunk button to wake the key.
  • Page 7 English User guide After the key is discovered, you need to connect to it, just click on the "Connect" of the desired key in the table. As soon as the corresponding inscription appears in the log - press three times on the front trunk button to confirm the connection.

  • Page 8: Preparing The Pairing Key (Provision)

    English Plugin Key Fob Pairing for Model X Feature 3. PREPARING THE PAIRING KEY (PROVISION) WARNING! Once this procedure is started, the key cannot be used to paired to another car. To perform the Provision procedure, just click on the corresponding menu item, the program will automatically configure the key for the connected vehicle and prepare it for pairing.

  • Page 9: Pairing The Key (Pairing)

    English User guide After successfully completing the Provision procedure, you can proceed with the Pairing procedure. 4. PAIRING THE KEY (PAIRING) To perform the Pairing procedure, just click on the corresponding menu item, the program will automatically attach the key to the connected vehicle.
  • Page 10 English Plugin Key Fob Pairing for Model X Feature After you complete the pairing procedure, you need to restart the BCCEN block and read the key list to ensure that the pairing succeeds.
  • Page 11 English User guide The pairing procedure of the first and all subsequent keys is not different, so if necessary, pairing several keys procedure should be repeated for each of them, the old keys will not be disconnected and will continue to work.

  • Page 12: Contacts

    English Contacts MSG Equipment HEADQUARTERS AND PRODUCTION MSG equipment 18 Biolohichna st., 61030 Kharkiv Ukraine +38 057 728 49 64 +38 063 745 19 68 E-mail: sales@servicems.eu Website: servicems.eu REPRESENTATIVE OFFICE IN POLAND STS Sp. z o.o. ul. Modlińska, 209, Warszawa 03-120 +48 833 13 19 70 +48 886 89 30 56...
