Summary of Contents for Avidsen 112110
- Page 1 Audio handset 2 wires ref. 112110 www.avidsen.com...
-
Page 2: Table Of Contents
AUDIO HANDSET TABLE OF CONTENTS A - SAFETY INSTRUCTIONS 1 - OPERATING PRECAUTIONS 2 - MAINTENANCE AND CLEANING 3 - RECYCLING B - PRODUCT DESCRIPTION 1 - CONTENTS OF THE KIT 2 - HANDSET 3 - DOORPLATE 4 - MAINS ADAPTOR C - INSTALLATION 1 - DOORPLATE INSTALLATION 2 - HANDSET INSTALLATION... -
Page 5: A - Safety Instructions
AUDIO HANDSET A - SAFETY INSTRUCTIONS 1 - OPERATING PRECAUTIONS 3 - RECYCLING • Before installing your intercom, it is important This logo denotes that devices which are to check the following points: no longer in use must not be disposed •... -
Page 6: B - Product Description

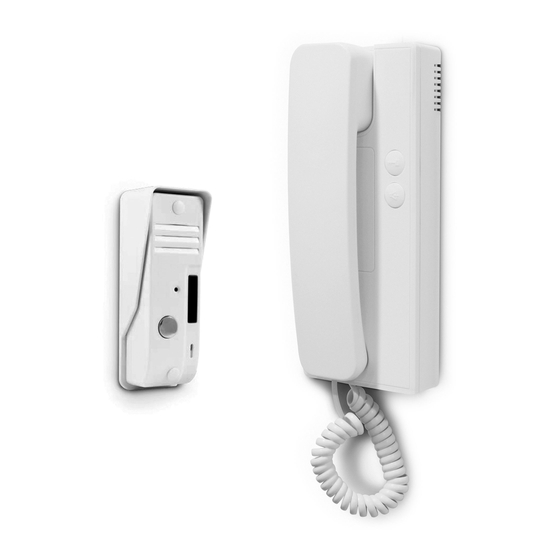

AUDIO HANDSET B - PRODUCT DESCRIPTION 1 - CONTENTS OF THE KIT Doorplate Wall plugs Audio handset Mounting screws Mains adapter 2 - HANDSET Handset Loudspeaker (doorbell only) Gate or strike plate open button Hooks for wall mounting the handset Alert button: emits a sound alert at Connection terminals the level of the doorplate... -
Page 7: Doorplate
AUDIO HANDSET B - PRODUCT DESCRIPTION 3 - DOORPLATE Position of the screws for wall mounting Microphone the doorplate Connection terminals Loudspeaker Call button 4 - MAINS ADAPTER The 12 Vdc 0.5A mains adapter provided is for the electrical supply to the handset. Do not use other power supplies as they could cause irreparable damage to the device and invalidate the warranty. -
Page 8: C - Installation
AUDIO HANDSET C - INSTALLATION 1 - DOORPLATE INSTALLATION Attach the doorplate hood to your support using the screws and wall plugs suited to the support. ø6 mm After making the connections on the doorplate (see the connections paragraph), position and screw the doorplate into the hood. - Page 9 AUDIO HANDSET C - INSTALLATION Between the handset and the doorplate (100m maximum) To ensure good audio and video quality, it is advised to not use more than 100m of cable between the intercom and the doorplate. Connect the wires as follows (incorrect wiring can damage the doorplate). The cable's length determines which cable section is to be used: Cable length Section to use...
- Page 10 AUDIO HANDSET C - INSTALLATION Electric strike plate connection : Connection of an electric strike plate requires an external power supply (not included) adapted to the strike plate concerned. 12 VDC 230 VAC mains adapter (included)
-
Page 11: D - Using The Product
AUDIO HANDSET D - USING THE PRODUCT • Any calls from the outside will make the handset ring. You can pick it up to respond to your visitor. • Pressing the gate or strike plate open button activates the electric strike plate or the connected automated gate. -
Page 12: E - Technical And Legal Information
3 - HELP AND ADVICE the work on our website at the following address: http://sav.avidsen.com • If, in spite of the care we have taken in designing our products and drafting these instructions, you do encounter difficulties... - Page 13 Avidsen France - 19, avenue Marcel Dassault 37200 Tours - France...
