Vibration Sensors
VS Vibration Sensors
Overview
KEMET's VS vibration sensors can detect vibrations in a
wide frequency range from 10 Hz up to 15 kHz, through
the effective conversion of vibrations to electrical signal
by utilizing proprietary optimized piezo ceramic material
and original vibration amplifying design. As no amplifier is
required, it makes it very easy to embed.
Its ability to detect even the faintest levels of vibration
throughout a large sensing bandwidth makes it ideal for
predictive maintenance and process control operations
in industrial IoT, allowing for correction and data analysis
flow to PLC, micro-computer or analyzers.
Benefits
• Proprietary piezo ceramic material
• High sensitivity
• Large sensing bandwidth
• Built-in amplifier

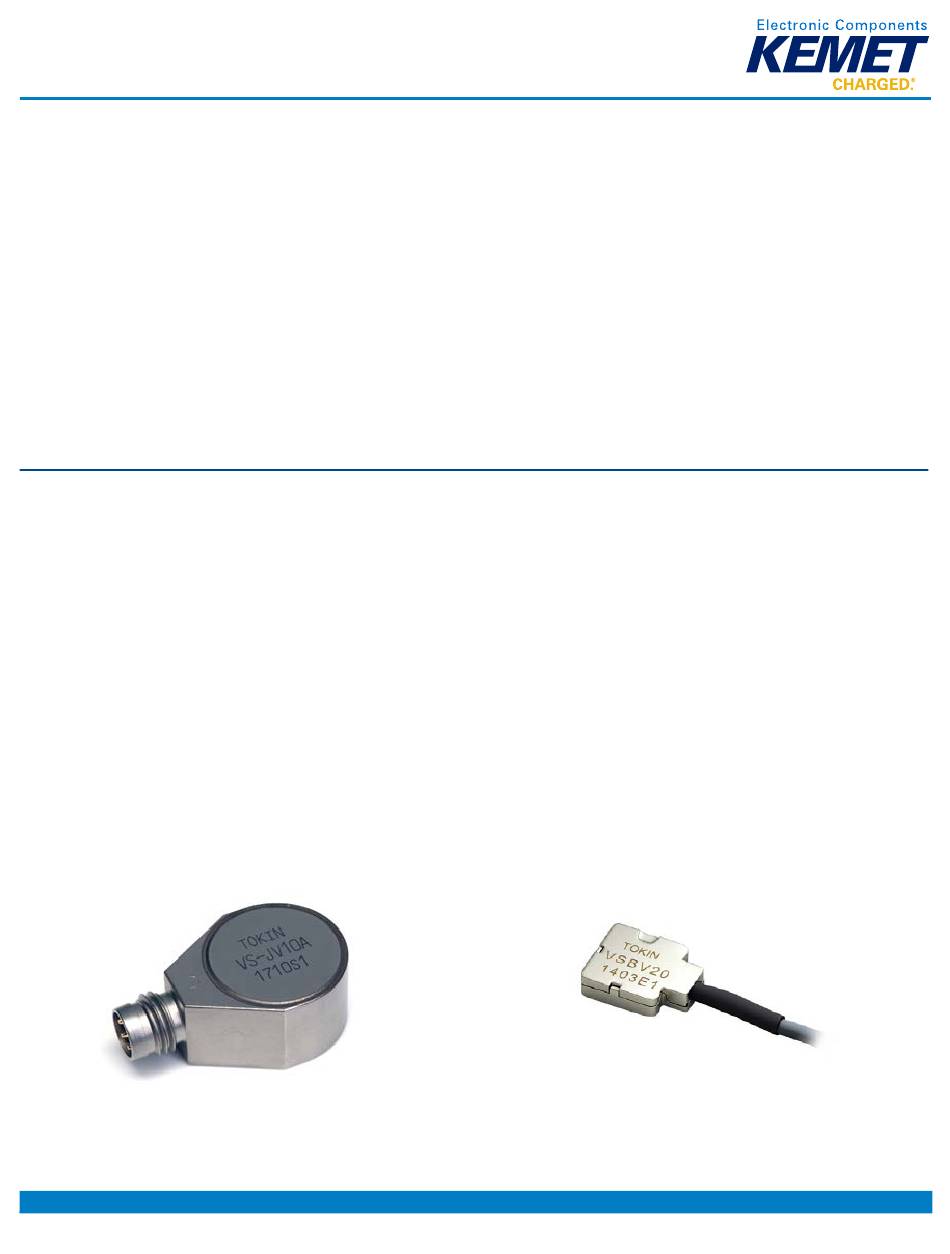

J Type
• Unique detachable cable design for easy installation
• Compact and low-profile (Ø 18.0 × 11.0 mm)
• Waterproof and oil-resistant
• Case-insulated
• Current noise resistant
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
VS–JV10A
Applications
Typical applications include abnormal vibration detection and
condition monitoring of production facilities of all industries,
motors, bearings, and pumps.
B Type
• Integrated cable
• Ultra compact and ultra low-profile (8.4 x 11.4 x 2.9 mm)
• Easy to embed
VS–BV203–B
One world. One KEMET
SE0209_VS • 9/12/2019
1
Advertisement
Summary of Contents for KEMET VS Series
- Page 1 • Waterproof and oil-resistant • Case-insulated • Current noise resistant VS–JV10A VS–BV203–B One world. One KEMET © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard SE0209_VS • 9/12/2019 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com...
- Page 2 Substances of Very High Concern (SVHC) in their products exceeding 0.1% by weight and provide instructions on safe use of the product. KEMET Corporation reports regarding the Article 33(1) of REACH Regulation as follows: 1. Applicable Product: Vibration Sensors (VS series) 2.
- Page 3 Roller Coaster KEMET Motor Vibration 0.01 0.001 Sensor 0.0001 (Faint Vibration) Example 10,000 1,000 Frequency (Hz) © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard SE0209_VS • 9/12/2019 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com...
- Page 4 In ambient temperature 40°C or less, 90%RH (maximum). In ambient temperature exceeding 40°C, the absolute humidity is less than 90% R.H. by Temperature = 40°C conversion. Without cable. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard SE0209_VS • 9/12/2019 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com...
- Page 5 Vibration Sensors – VS Vibration Sensors Sensitivity VS–JV10A Sensitivity 1000 10000 100000 Frequency [Hz] VS–BV203–B Sensitivity 1000 10000 100000 Frequency [Hz] © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard SE0209_VS • 9/12/2019 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com...
- Page 6 M4 ×0.7 (Female) depth 3.0 Pin Assignement Symbol Function Power input Sensor output Signal ground N.C. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard SE0209_VS • 9/12/2019 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com...
- Page 7 2.9 ±0.5 Pin 1 Pin 2 Pin 3 Pin Assignement Symbol Function Power input Sensor output Ground © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard SE0209_VS • 9/12/2019 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com...
- Page 8 M8 Connector Pin 1: Brown/V Pin 2: White/V Pin 3: Blue/SG (Signal Ground) Pin 4: Black/N.C. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard SE0209_VS • 9/12/2019 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com...
- Page 9 φ26×6 (excluding protruding part) M4×0.7 > 40 Attractive surface: SS400 and for conditions where ambient temperature is 25°C. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard SE0209_VS • 9/12/2019 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com...
- Page 10 Material Name (mm) Sensor Mounting Grounding Torque (Nm) VA-01 SUS303 φ22×6 (excluding protruding part) M4×0.7 M4×0.7/Adhesive © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard SE0209_VS • 9/12/2019 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com...
- Page 11 3rd and 4th digit = Month of the Year 11 = November 12 = December 5th and 6th digit = Serial Number etc. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard SE0209_VS • 9/12/2019 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com...
- Page 12 Please test and confirm operation in the specific target environment before use. © KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard SE0209_VS • 9/12/2019 Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com...
- Page 13 • Do not operate or store in dusty high temperature environment, near fire, under strong light or sunshine, in the air containing salt or oil. • KEMET recommends that maximum storage temperature not exceed 85°C for VS-JV10A and 75°C for VS-BV203-B and maximum storage humidity not exceed 90% relative humidity and atmospheres should be free of chlorine and sulfur bearing compounds.
