Summary of Contents for Eonon X20

  • Page 2 User Manual...

  • Page 3: Table Of Contents

    Contents Precautions Connections 20-28 Wired Android Auto Setup Steps Product Overview 02-06 Wireless Android Auto Setup Steps Wired CarPlay Setup Steps Front Side Wireless CarPlay Setup Steps How to Install or Remove the Stereo Trim? Setup Steps of Wired MirrorLink for Android Wiring Diagram Setup Steps of Wireless MirrorLink for Android Accessories...

  • Page 4: Precautions

    If smoke, strange noises or unusual odors occur during normal use, or any other abnormal signs appear on the LCD screen, please turn off the power immediately and consult your dealer or Eonon customer service. Do not use this product in this condition because doing so may result in a fire, electric shock, or other failure.

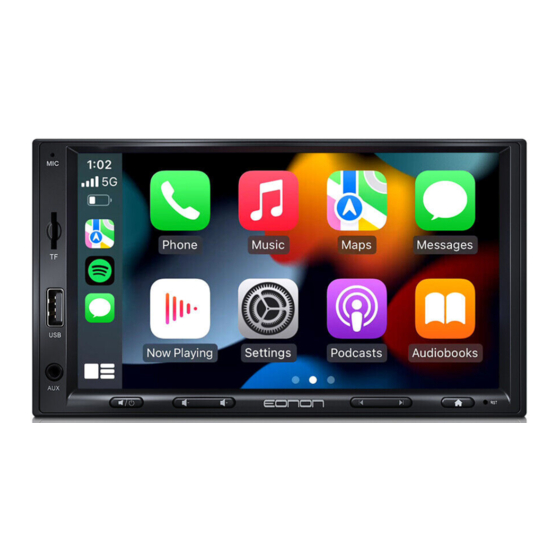

  • Page 5: Product Overview

    Front Side...
  • Page 6 1. Built-in microphone 2. MicroSD card slot 3. USB port (For CarPlay, Android Auto and a USB flash drive) 4. 3.5mm AUX input 5. Tap to mute, tap and hold to turn off the unit 6. Volume- 7. Volume+ 8. Previous 9.

  • Page 7: How To Install Or Remove The Stereo Trim

    How to Install or Remove the Stereo Trim? To remove the trim: In the middle of stereo trim, use your fingernails to pull it out about 3mm. You can remove the trim once the buckles that secure it are completely loosened. To install the trim: Align the trim with the panel and press it gently until it’s secured with the buckles on both sides.

  • Page 8: Wiring Diagram

    Wiring Diagram USB port (Only for charging) 1. Backup Camera Input External Microphone 2. Subwoofer Output 3. Video Input 4. Audio Input L Rear Camera BATT ISO Port 5. Audio Input R Illumination Wire Reversing Light headlight 6. Front Camera Input Reverse Wire Auto Antenne 7.

  • Page 9: Accessories

    Accessories Power Cable *1 External Microphone *1 10A Fuse *1 User Manual Screw *8 User Manual *1 A0125 Backup Camera *1...

  • Page 10: Home Screen

    Home Screen...
  • Page 11 1. Tap to go to the home screen 12. Tap to turn on MirrorLink 13. Tap to turn on AirPlay 2. Tap to go back to the previous page 14. Tap to enable the Bluetooth call function 3. Tap to adjust the volume Note: Please connect to Bluetooth first 4.

  • Page 12: Radio

    Radio Please set the time zone for the radio after installing this product: Setup---> --->Radio Area...
  • Page 13 1. FM/AM switch. 2. Automatically search and save radio stations. Click to search for radio stations automatically from the lowest frequency to the highest frequency and it will save the searched stations in turn. Click again to stop searching. 3. LOC/DX switch. It’s in LOC mode when the radio displays “LOC”, meaning only radio signals within a short distance can be received. 4.

  • Page 14: Bluetooth

    CAUTION：For your safety, please avoid talking on the phone as much as possible while driving. Connection method: Search for the device of the car stereo (Device Name:Eonon) through Bluetooth on your phone to connect it. Note： • The operation of different mobile phone types may differ. For detailed instructions, please refer to the user manual of your phone.
  • Page 15 1. Calling interface 2. Bluetooth phonebook 3. Bluetooth music 4. Bluetooth connection 5. Tap to connect or disconnect a paired phone device 6. Tap to delete a pairing record...
  • Page 16 1. Received calls 2. Dialed calls 3. Missed calls 4. Tap to refreash the call history 5. Delete 6. Make a call...
  • Page 17 1. Mute the microphone 2. End a call 3. Answer calls via car stereo /mobile phone...
  • Page 18 1. Previous 2. Play/Pause 3. Next Note： • Resume playback is not supported as the music that Bluetooth device plays is not from the head unit. • Please avoid using your phone as much as possible when you’re playing music via Bluetooth. •...

  • Page 19: Usb/Sd

    USB/SD 1. Music Playback Support audio formats like MP3, WMA, WAV, OGG, FLAC, etc. 1. View playlist 2. Switch among loop single/ loop all/shuffle loop 3. Shuffle 4. Previous 5. Enter a number of a song to play it 6. Pause/Play 7.

  • Page 20: Video Playback

    2. Video Playback Support video formats like AVI, MKV, MP4, WMV, RMVB, MPG, etc. 1. View playlist 2. Previous 3. Play/Pause 4. Next 5. Audio settings 6. Next page...
  • Page 21 7. Change the aspect ratio 8. Display settings 9. Switch among loop single/ loop all/shuffle loop 10. Shuffle 11. Enter a number of a video to play it 12. Previous page...

  • Page 22: Picture

    3. Picture Support formats including JPG/BMP/PNG. 1. Rotate the picture 2. Previous 3. Play/Pause 4. Next 5. Zoom out the picture 6. Zoom in the picture...

  • Page 23: Connections

    Connections 1. Android Auto Wired Android Auto setup steps: ① Go to the Play Store and download the Android Auto App on your phone (as shown below). ② Go to “Setup-->Phone-->Smart phone-->Android Device” and select “Android Auto” on the car stereo.

  • Page 24: Wireless Android Auto Setup Steps

    ③ Connect the USB cable of your phone to the USB data port of the unit. Note： • Please make sure that your phone supports Google services and Android Auto. • Please be sure to connect to the USB data port of the unit, or Android Auto will not be available. Wireless Android Auto setup steps: ①...
  • Page 25 ② Go to “Setup-->Phone-->Smart phone-->Wireless Device” and select “Android Auto” on the car stereo. ③ Turn on WiFi and Bluetooth of your phone. ④ Find Bluetooth of the head unit (Bluetooth name: Eonon; password: 88888888) and connect to it. ⑤ It will turn on Android Auto automatically after connecting to Bluetooth successfully.

  • Page 26: Wired Carplay Setup Steps

    2. CarPlay Wired CarPlay setup steps: ① Go to “Setup-->Phone-->Smart phone-->iPhone Device” and select “CarPlay” on the car stereo. ② Connect the USB cable of your iPhone to the USB data port of the head unit. Note： Please be sure to connect to the USB data port of the unit, or Apple CarPlay will not be available.

  • Page 27: Wireless Carplay Setup Steps

    ① Go to “Setup-->Phone-->Smart phone-->Wireless Device” and select “CarPlay” on the car stereo. ② Turn on WiFi and Bluetooth of your iPhone. ③ Find Bluetooth of the head unit (Bluetooth name: Eonon; password: 88888888) and connect to it. ④ It will turn on CarPlay automatically after connecting to Bluetooth successfully.

  • Page 28: Setup Steps Of Wired Mirrorlink For Android

    3. Screen Mirroring Setup steps of wired MirrorLink for Android: ① Scan the QR code on the unit with your phone and download the AutoLink Pro app. ② Go to “Setup-->Phone-->Smart phone-->Android Device” and select “MirrorLink” on the car stereo. ③...

  • Page 29: Setup Steps Of Wireless Mirrorlink For Android

    Setup steps of wireless MirrorLink for Android: ① Go to “Setup-->Phone-->Smart phone-->Wireless Device” and select “MirrorLink” on the car stereo. ② Scan the QR code on the unit with your phone and download the AutoLink Pro app. ③ Turn on the the Autolink Pro app and search for the device to connect it.

  • Page 30: Setup Steps Of Wired Mirrorlink For Iphone

    Setup steps of wired MirrorLink for iPhone: ① Go to “Setup-->Phone-->Smart phone-->iPhone Device” and select “IOSMirror” on the car stereo. ② Connect the USB cable of your iPhone to the USB data port of the head unit. Note： Please be sure to connect to the USB data port of the unit, or screen mirroring will not be available.

  • Page 31: Airplay

    ① Go to “Setup-->Phone-->Smart phone-->Wireless Device” and select “CarPlay” on the car stereo. ② Turn on WiFi and Bluetooth of your iPhone. ③ Find WiFi of the head unit (Name: Eonon; password: 88888888) and connect to it. ④ Select Car-AirPlay in AirPlay of iPhone.

  • Page 32: Settings

    Settings Language: To change the language. Brake Detection: After turning this setting on, the system will check whether the car is in motion or not through brake-in wire. If the parking brake is working, the screen can display the video image, otherwise the screen can't display the video image.
  • Page 33 Phone Settings Smart Phone: To set the functions connected through the phone. Wifi Device: To view WiFi name and password. CarPlay Menu On Right: If your driver's seat is on the right, you can turn on this setting to change the sidebar of the CarPlay to the right.
  • Page 34 Steering Wheel Control Settings Please set button functions on the steering wheel according to the following steps. ② Tap to erase all data. ③ Press the button that needs to be set on the steering wheel. ④ Tap the button corresponding to the function on the car stereo screen.

  • Page 35: Specifications

    Specifications Operating Voltage DC12V Maximum Operating Current ≤10A Operating Temp -20℃+ 60℃ Storage Temp -30℃+ 70℃ Operating Humidity 45% - 80%(Relative humidity) Storage Humidity 39% - 80%(Relative humidity)

  • Page 36: Faq

    Blank screen/Can’t power on: 1. Please press the RST button of the car stereo. 2. Please check if the car stereo has stable DC12V voltage. 3. Please check if the car stereo fuse is burnt out. 4. Please reconnect the BATT+/ACC/GND wires of the car stereo to the BATT+/ACC/GND wires of the original car. Bluetooth is connected but not working: It should be that the phone automatically turns on Android Auto/CarPlay after connecting to Bluetooth.
  • Page 37 Images do not automatically change while reversing: Please connect the reverse control wire of the car stereo to the backup camera trigger wire. Android Auto is not working: 1. Please make sure that your phone supports Google services and Android Auto. Please note that some mobile phones don’t support Android Auto, and some mobile phones only support wired Android Auto but not wireless Android Auto.
