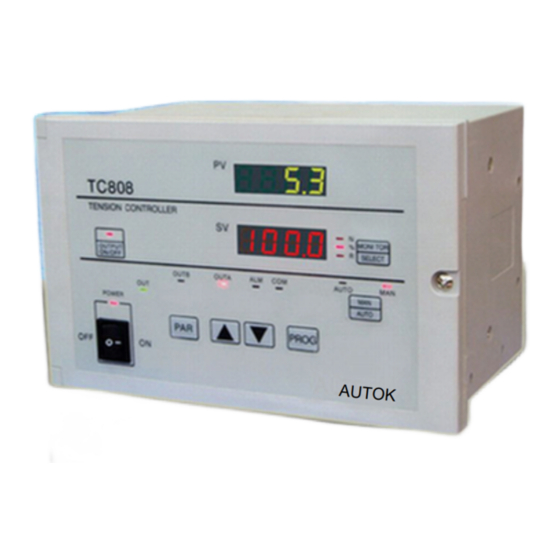

AUTOK TC808 Instruction Manual

Tension controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AUTOK
TENSION CONTROLLER
TC808
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC808 and is the answer not in the manual?

Questions and answers

Related Manuals for AUTOK TC808

Summary of Contents for AUTOK TC808

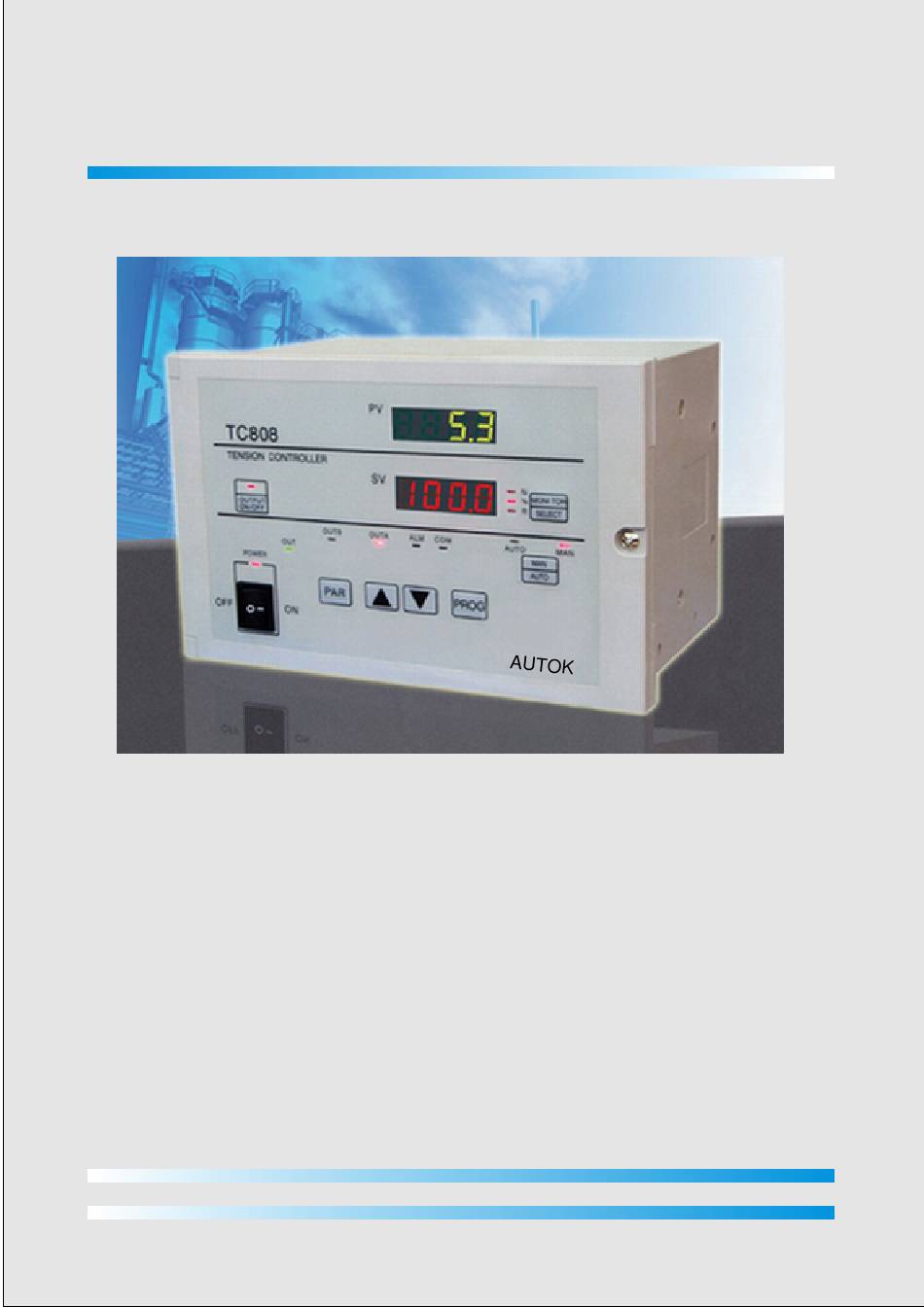

  • Page 1 AUTOK TENSION CONTROLLER TC808 INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    AUTOK TENSION CONTROLLER TC808 Table of Contents 1 Introduction ................. 1 2 Features ..................1 3 Order Code .................. 2 4 Installation ................... 2 5 Electrical Wiring ................3 6 Operator Interface ............... 6 7 Operation ..................7 8 Operation of Tension Control System ........10 9 Tension Calibration ..............

  • Page 3: Introduction

    The tension controllers can be divided into manual, half-automatic and full automatic controller. According to the different needs of customers, the TC808 tension controller can be configured as manual, half-automatic or full-automatic tension controller.

  • Page 4: Order Code

    Drive powder clutch/brake None RS232 RS232 RS485 RS485 Tension transmission None Programmer/Controller 4 Installation TC808 tension controller can be installed on floor, wall or panel. Installed on floor Installed on wall Installed on panel 4-M4*12 Mounting screw TC808 TENSION CONTROLLER MONITOR SELECT...

  • Page 5: Electrical Wiring

    AUTOK TENSION CONTROLLER TC808 Outline Dimensions TC808 TENSION CONTROLLER MONITOR SELECT OUTPUT ON/OFF OUTB OUTA AUTO AUTO POWER PROG AUTOK 16.5 5 Electrical Wiring Notice ● In order to avoid electrical noise to the input signal, the signal line should be seqarated from the power line.
  • Page 6 AUTOK TENSION CONTROLLER TC808 5.1 Wiring Diagram 250V 8A Power supply (160V~240 V AC) 24V/4A 12V/2A to Reel-A magnetic powder clutch/brake REDL green Tension sensor white (Left) black BLKL to Reel-B magnetic REDR powder clutch/brake green Tension sensor white (Right)
  • Page 7 AUTOK TENSION CONTROLLER TC808 5.2 Terminals Description Terminal group 1 Terminal Specification Comments PSL, PSN input 85~264V AC, 50/60 Hz Power supply Zero tension alarm output(Automatic tension control mode) ZT, ZTC output Reel radius lower limit alarm output(Diameter tension control mode)

  • Page 8: Operator Interface

    AUTOK TENSION CONTROLLER TC808 6 Operator Interface TC808 TENSION CONTROLLER MONITOR SELECT OUTPUT ON/OFF OUTB OUTA AUTO AUTO POWER PROG AUTOK Item Description Item Description ON/OFF Power switch Indicates the Process Value, PV Display Parameter display POWER Power LED Output power indicator...

  • Page 9: Operation

    3 seconds later, the upper display will indicates the measured tension(PV) while the lower display will indicates the setting tension(SV). The upper display will indicates the current measured reel radius when TC808 is configured as a 'Diameter Tension Controllr' or a 'Diameter-Output program tension controller'.
  • Page 10 Configuration password 0~9999 7.3 Software Configuration Specific tension contol systems need specific software configurations. TC808 must be configured porperly in order to perform the correct control funtion. How to enter software configuration menu: 1) Press PAR key and hold for 3 seconds to enter the first level menu(i.e. operation parameter list);...
  • Page 11 AUTOK TENSION CONTROLLER TC808 Software Configuration Paramter List Mnemonic Parameter Adjustable Range Comments SP L always > Tension setpoint high limit Measurement Range SP K SP K always < SP L Tension setpoint low limit Measurement Range K PL Max output power 0.0~100.0%...

  • Page 12: Operation Of Tension Control System

    8 Operation of Tension Control System 8.1 Run/Stop The run/stop operation of TC808 tension controller is controlled by MC1 and MCC. Connect a switch across the terminal MC1 and MCC, the switch is called Run/Stop switch of the tension system.
  • Page 13 Before starting dot start operation, let the system stop(turn the Run/Stop switch off) and the controller outputs PON to generate the preparatory tension. When the dot start switch is turned on, TC808 outputs PDOT made the system start running. The controller will maintain the output PDOT while the dot start switch is ON.
  • Page 14 AUTOK TENSION CONTROLLER TC808 8.5 Reel exchange In the two-reel operation, the reel exchange is controlled by the ‘reel exchange’ switch(MC2-MCC). This function is applicable when material on reel is over or full. When the switch is turned on, reel A is active.

  • Page 15: Tension Calibration

    When use one tension sensor, make sure to short-circuit the unused tension signal terminals. 9.1 Jumpers setup TC808 accepts various tension sensor inputs: 1. Using micro-displacment based tension sensor(signal: 200mV, power supply: 5V) Please short jumpers JP7, JP8 and JP11, jump J8 to GND to get 5V output.
  • Page 16 AUTOK TENSION CONTROLLER TC808 9.2 Zero Tension Calibration(P1) Step Button Operation Display Turn on the power switch, add no weight on the tension sensor, press PAR key until (AL appears in the upper display ---- Press ▲ key, P1 appears in the lower display...

  • Page 17: Use Of Diameter Tension Control

    R0) and reel pulses/r N2 must be set properly. The TC808 counts the pulses generated by the proximity switch mounted on material reel, according to the total pulses N and the initial reel radius, calculate the current reel radius according to the following formula: (Winding: +,unwinding: -) R=R0±T*N/n...
  • Page 18 40 N*M, setting tension is 50 N, material reel radius is 300mm = 0.3m. the output X=50*0.3/40=37.5% As the above formula shows, TC808 adjusts the output according to reel radius, the output is proportional to the reel radius and setting tension.

  • Page 19: Taper Tension Control

    The greater the taper ratio t1, the greater the change of tension when reel radius increases. If t1=0, TC808 performs constant tension control. See the figure below.

  • Page 20: Diameter-Output Program Tension Control

    The diameter-output program tension control is a special application of diameter tension control. According to the presetting programs and the change of reel diameter, TC808 increase/decrease the output power to achieve tension control purpose. In this mode, parameter (( needn’t setting.
  • Page 21 If the current measured reel radius is greater than R1, TC808 outputs L1(the highest output). if the current measured reel radius is smaller than the minimum setting radius, TC808 outputs power which associates with the minimum radius.

  • Page 22: Digital Communication

    AUTOK TENSION CONTROLLER TC808 13 Digital Communication 13.1 Overview Digital Communication allows the controller to communicate with a PC or a networked computer system. The RS232 standard allows a single instrument to be connected to a PC, a Programmable Logic Controller, or a similar devices using a cable length of less than 15m.
  • Page 23 AUTOK TENSION CONTROLLER TC808 13.5 Reading Data from the TC808 Controller To read data, a 'poll' message is issued to the instrument. This message takes the following format: [EOT](ADR_H)(ADR_H)(ADR_L)(ADR_L)(C1)(C2)[ENQ] Each item in the above description represents a single ASCII character. The items in hold type and square brackets are control characters used to frame the message, whose values may be determined by reference to the table on the previous page.
  • Page 24 AUTOK TENSION CONTROLLER TC808 13.6 Writing Data to the TC808 Controller To write data, a 'select' message is issued to the instrument. This message takes the following format: [EOT](ADR_H)(ADR_H)(ADR_L)(ADR_L)[STX](C1) (C2)<DATA>[ETX](BCC) Each item in the above description represents a single ASCII character. The items in hold type and square brackets are control characters used to frame the message, whose values may be determined by reference to the table on Page 1.
  • Page 25 AUTOK TENSION CONTROLLER TC808 13.7 Communication Parameters List Order ASCII/HEX Mnemonic Parameter Adjustable Range 50 56 Process value(Read only) 4F 50 Output power(Read only) 0~100.0% 53 50 Current target tension Read only 53 4C Setting value SPH SPL 46 30...

  • Page 26: Appendix A: Ascii Table

    AUTOK TENSION CONTROLLER TC808 Appendix A: ASCII Table SPACE " XOFF & < > Appendix B: The Mounting of SUP Tension Sensor Bearing Spacer SUP series tension sensor Spacer Force Please note that the force direction of tension sensor. WWW.CHINA-AUTOK.COM...

  • Page 27: Technical Data

    AUTOK TENSION CONTROLLER TC808 Technical Data Micro-displacement based tension sensor (signal: 200 mV, power: 5V DC) Tension signal input Strain gauge based tension sensor (signal: 20 mV, power: 10V DC) ±0.2%FS ± 1 digit Resolution Sampling rate 100 ms Proximity switch...
