QUICK REFERENCE GUIDE - AUDIO DELAY (P8-AD340)
AUDIO DELAY
INTRODUCTION
Lip sync is acommon issue when introducing ceiling speakers or simply not using the TV's built-in speakers to
render audio. Lip sync issues are caused when the audio device is able to render the audio much faster than the
presentation device.

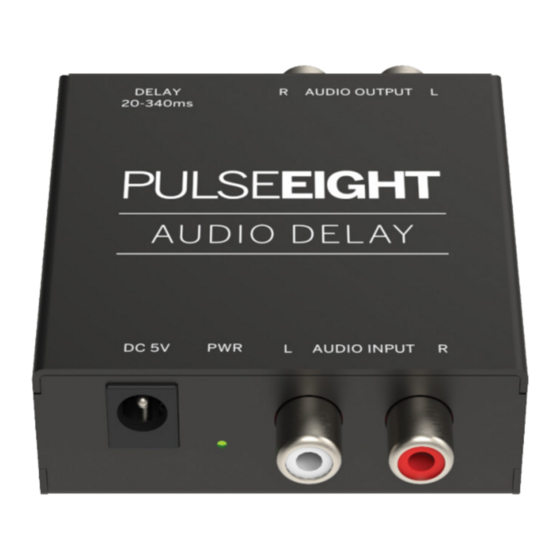

The P8-AD340 is a perfect solution to this problem with 20~ millisecond increments from its 16-way selector you
can delay the audio from 20-340ms. Delay stereo audio with a simple L/R phono input and output connection.
FEATURES
• The perfect solution to lip-sync problems
• 20-millisecond increments from its 16-way selector
• Delay the audio from 20-340ms
• Simple L/R phono input and output connection
• Compact design
INSIDE THE BOX (KIT)
• 1 x Audio Delay
• 1 x Power Adapter
• 1 x Quick Reference Guide
1
Advertisement
Table of Contents
Summary of Contents for PULSEEIGHT P8-AD340
- Page 1 Lip sync issues are caused when the audio device is able to render the audio much faster than the presentation device. The P8-AD340 is a perfect solution to this problem with 20~ millisecond increments from its 16-way selector you can delay the audio from 20-340ms. Delay stereo audio with a simple L/R phono input and output connection.
-
Page 2: Specifications
QUICK REFERENCE GUIDE - AUDIO DELAY (P8-AD340) SPECIFICATIONS SKU: P8-AD340 Input: L/R Phono Output: L/R Phono Audio Input Format: Analogue, line level Audio Outputs Format: Analogue, line level Electrical Fast Transient/Burst: Data communication cord:1 kV, Power cord : 2 kV... -
Page 3: Installation
QUICK REFERENCE GUIDE - AUDIO DELAY (P8-AD340) INSTALLATION 1. Connect the ‘Audio Output’ ports to the audio receiver (e.g. amplifier). 2. Connect the ‘Audio Input’ port to audio source (e.g. Bluray player). 3. Connect the supplied mains power cable to the chassis. Other power cables should not be used with this product. -
Page 4: Warranty Procedure
QUICK REFERENCE GUIDE - AUDIO DELAY (P8-AD340) WARRANTY PROCEDURE The following policies covers all Pulse-Eight products. Unless otherwise instructed, please do not open any of our products. Doing so will invalidate your warranty. As part of the troubleshooting procedure, you may be instructed to open the device, but you can only proceed with this once consent has been given. -
Page 5: Warranty Terms And Conditions
QUICK REFERENCE GUIDE - AUDIO DELAY (P8-AD340) WARRANTY TERMS & CONDITIONS IMPORTANT INFORMATION ABOUT YOUR RIGHTS AND OBLIGATIONS, AS WELL AS LIMITATIONS AND EXCLUSIONS THAT MAY APPLY TO YOU. YOUR RIGHTS AND THIS LIMITED WARRANTY This Limited Warranty gives you specific legal rights. You may also have other legal rights that vary by state, province, or jurisdiction. The disclaimers, exclusions, and limitations of liability under this Limited Warranty will not apply to the extent prohibited by applicable law. -
Page 6: Disclaimer Of Warranties
QUICK REFERENCE GUIDE - AUDIO DELAY (P8-AD340) 5. DISCLAIMER OF WARRANTIES Except as stated above in this limited warranty, and to the maximum extent permitted by applicable law, Pulse-Eight disclaims all express, implied, and statutory warranties and conditions with respect to the product, including the implied warranties of merchantability, fitness for a particular purpose.
