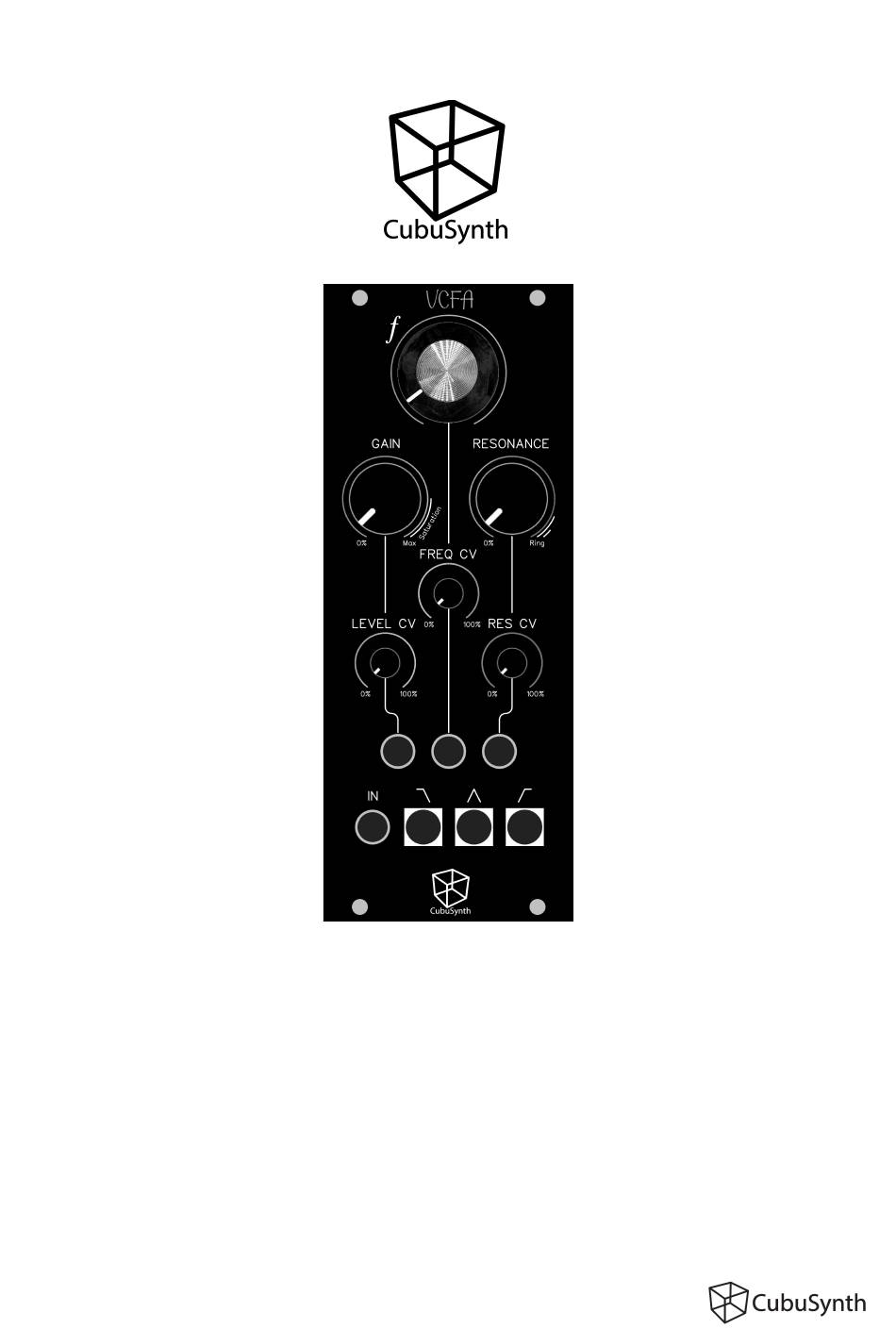

- Page 1 CubuSynth VCFA – Manual PCB V1.2 Sept 2022 VCFA Multimode VCF with LP,HP and BP outputs and integrated VCA Manual PCB V1.2 Sept 2022 Written and Illustrated by Ruben Sponar Page 1...
- Page 2 PCB V1.2 Sept 2022 1. Introduction The CubuSynth VCFA is a multimode VCF with LP,HP and BP modes with integrated VCA, CV control over Frequency, Resonance and Volume. The CV input for the Frequency features 1V/Oct scaling over about 2~3 octaves. So you can even create plucky melodies with the resonance in "ringing"...
- Page 3 CubuSynth VCFA – Manual PCB V1.2 Sept 2022 Page 3...
- Page 4 PCB V1.2 Sept 2022 Limited Warranty: CubuSynth guarantees this product to be without defects in materials and workmanship for a period of one year from the date of purchase (proof of purchase/invoice needed). Malfunctions due to improper supply voltages, incorrect or reversed Eurorack power cable connection, misuse of the product, removal of knobs, changing faceplates, or other causes determined by CubuSynth are the user's responsability and are not covered by this warranty.
- Page 5 VCFA PCB V1.2 Sept 2022 Written and Illustrated by Ruben Sponar The CubuSynth VCFA was designed by Ruben Sponar, from first prototype in January 2021 to the finished module in September 2022. A few honorable mentions: The main Filter circuit is based around the VCF-3 from Sculls&Circuits The VCA part was originally designed by Tom Wiltshire (electric druid) and modified for the Input VCA stage and the Resonance feedback path.
