Controlium NMR-WF01-FC-MN User Manual

Touch Screen Room Thermostat
User Guide
Model：NMR-WF01-FC-MN
Welcome
Your new thermostat will provide year of reliable
service. Using this digital thermostat will provide
more uniform comfort in your home through the
seasons. Thank you for buying the product!
Please read this manual for complete instructions
on installing and operating your thermostat. If you
require further assistance, please feel free to
contact us.
In the box you will find
1pc Screws
Thermostat
Wall plate
User Guide 1pc
Service
We offer the warranty of 24 months from the sales day.
If it is not the problem of quality or beyond the warranty
time, we will charge for the after-sale service.
Technical Data of your thermostat
Sensor：NTC Accuracy：±1℃
Temp. Range：5 -35℃ Power Consumption：<1.5W
Timing error：<1％ Power Supply：110~240V, 50 ~60Hz
Current Load：1A（Inductive）， 2A（Resistance）
Shell Material：PC （Fireproof）
Dimension：86x86x13.3mm
Installation box：86*86mm or European 60mm
Ambient Temp.：0 ~ 45℃，5 ~ 95％RH(Non condensing）
Storage Temp：-5~ 55℃

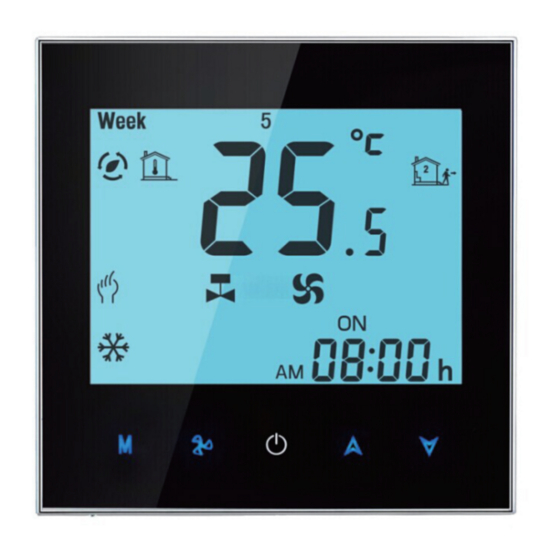

About your thermostat
NMR-WF01-FC serie Modern Touch Screen
Room Thermostats are designed to control
the fans and valves in air conditioner applications
via comparison of the room temperature and
setting temperature as reaching the aim of
comfort and saving energy . NMR-WF01 are
microprocessor based thermostat with LCD
display.
Features of your thermostat
Modern desgin similar as a cell phone.
Beautiful Frame CHROME creates elegant life.
Acrylic lenses to avoid the finger scrath.
Touch Button makes simple operation.
Large screen display with backlight is easy to
read—even in the dark.
Precise comfort control keeps temperature within
1°C of the level you set.
Easy installation.
86mm hidden box and european 60mm round
box is selectable.

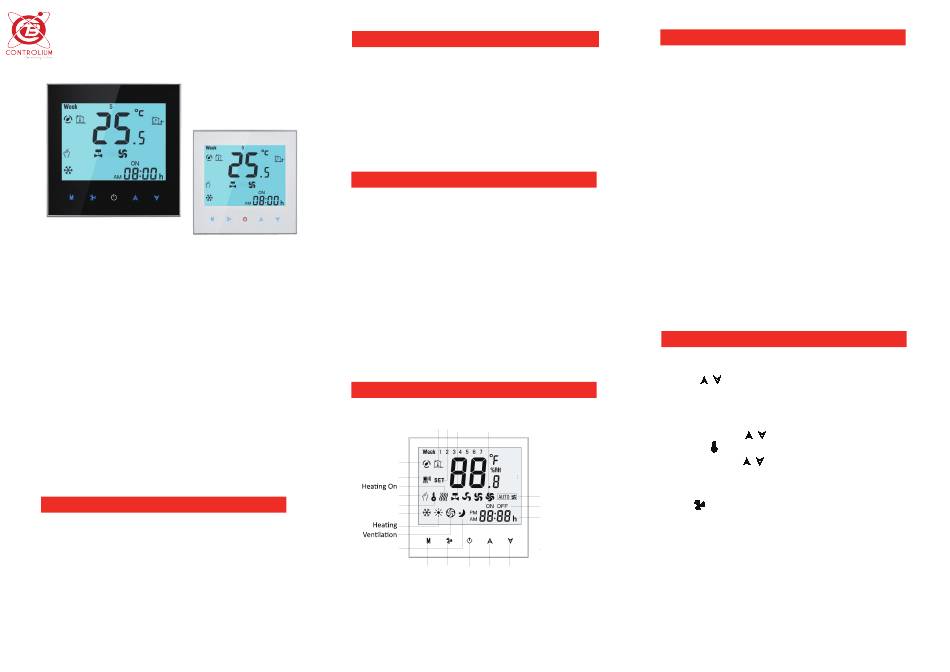

Home screen quick reference
2pc
1pc
Room
Temp.
Energysaving
Network
Manual
Lock
Cooling
Sleeping
Mode
Set
Fan
Temp. Valve
Speed
On/off
Auto Fan
Timing On/Off
Clock
Fan Power Down
Up
On/off
Model definition of your thermostat
A1: Two pipe; Control Fan Coil Unit and Two
wired Motorized valve.(when room temperature
reaches the setpoint, both will turn off)
A2: Two pipe; Control Fan Coil Unit and Two
wired Motorized valve.(when room temperature
reaches the setpoint, valve will turn off but fan will
turn to low speed)
B: Two pipe; Control on/off Motorized Damper
C: Two Pipe; Control Fan Coil Unit and Three
wired Motorized valve
M: Two pipe; Control 0-10V Motorized Valve
E: Four pipe; Control Fan Coil Unit and Two wired
Heat and Cool Motorized valve.
T: Clock
L: Backlight
P: Weekly Programmable
N: RS485/MODBUS RTU communication
K: Keycard
E: External sensor
For Example:NMR-WF01-FC-MN
Operation
1. Setting the temperature
Press to set temperature.
"SET" will display in the corner.
2. Setting Lock (optional function)
Press and hold for 3 sec. to lock the screen.
The icon will display on the screen.
Press and hold again for 3 sec. to unlock the
screen.
3. Setting the fan
Press to select the fan speed AUTO, HIGH,
MED, LOW.
4. Setting the system mode
Press M to change the system mode HEATING,
COOLING and VENTILATION. In the mode of
VENTILATION, the valve is off but the fan runs.
