Summary of Contents for betteries betterUI
- Page 1 User Manual Control and monitoring unit...
-
Page 3: Table Of Contents
Mounting the betterUI (optional) . . . . . . . . . . . . . . . . . . -
Page 4: Overview

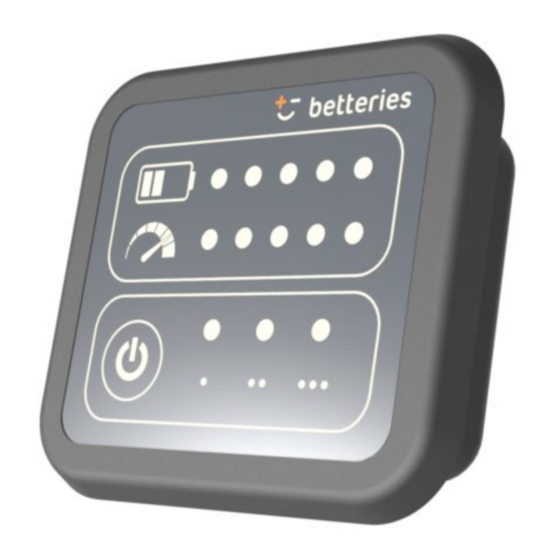

Overview 1 Overview 1 .1 Overview of the betterUI Fig. 1 Overview of the betterUI 6 LED version (P/N 10-00141). State-of-charge LEDs Connection GSM stick Power LEDs Connection data cable On/Off button Status LEDs Storage for GSM stick (on the back of the betterUI) from the manufacturer or distributor. -
Page 5: Better Be Safe
Always contact the man- betterUI, always ensure that it is shut off after switching off ufacturer to have it repaired. the system via the betterUI. If this is not the case, check the • Never touch the plug of an appliance with cable connection and contact the manufacturer. -
Page 6: Conditions For The Installation Site
3 .2 Conditions for the installation site • Never use the betterUI for a long period in areas with high salt concentration in ambient air or water, such as the seaside or in winter on streets where de-icing salt is used, •... -
Page 7: Understanding The Leds
4 .4 Understanding the LEDs State of charge Fig. 5 Ratio of the currently available power on the betterUI (highlighted). The green LEDs for power indicate the ratio of the currently available power of all stacked betterPacks and the maximum recommended power to use. -
Page 8: Cleaning
5. 6 Transporting Fig. 7 Label on the shipping box. There is a danger of breaking when transporting the betterUI. Do not drop the betterUI, always handle the betterUI with care and always keep the betterUI dry. 7 Storing •... -
Page 9: Troubleshooting
The system does not turn on after There is a mechanical fault with the On/ Send the betterUI back to the pressing the On/Off button. Off button. manufacturer for repair see "2.4 If a product is broken“... -
Page 10: Technical Data
LEDs still fail to light up, contact the manufacturer, see "2.4 If a product is broken“ on page 5. An LED is damaged. Send the betterUI back to the manufacturer for repair see "2.4 If a product is broken“ on page 5. -
Page 11: Nameplate
Read this user manual carefully before use. Do not dispose of the betterUI in household waste. Fig. 8 Nameplate. The nameplate is located on the back of the betterUI and contains the following information: Warning labels • Contact information of the manufacturer •... - Page 12 AMPS GmbH Goerzallee 299 14167 Berlin GERMANY Phone: +49 1520 5735306 E-Mail: info@betteries.com Internet: https://betteries.com P/N 10-00146 Revision A.0.0, 07 2022 © betteries AMPS GmbH 2022...
