Summary of Contents for AnalogFX VXC-2220
- Page 1 VXC-2220 V1.0A USER MANUAL VXC-2220 EURORACK...
- Page 2 VXC-2220 V1.0A...
- Page 3 VXC-2220 V1.0A THANK YOU FOR CHOOSING THE VXC-2220. Thank you for choosing the AnalogFX VXC-2220 analog vocoder for eurorack. We do hope that you really enjoy using it. Thank you. CREDITS: A big thank you to Michael Azevedo for reading, and assistance in order to complete this manual.
-
Page 4: Table Of Contents
BLOCK DIAGRAM ......................15 SPECIFICATION ......................... 16 SERVICE AND SUPPORT INFORMATION ................17 LIMITED WARRANTY ....................17 RETURNING YOUR PRODUCT TO ANALOGFX ............17 CARING FOR THE VXC-2220 ..................17 LEGAL NOTES ........................18 NO LIABILITY FOR CONSEQUENTIAL DAMAGES ............18 ELECTROMAGNETIC COMPATIBILITY (EMC) .............. -
Page 5: Important Safety Instruction
VXC-2220 V1.0A IMPORTANT SAFETY INSTRUCTION This symbol wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure – voltage that may be sufficient to constitute This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. -
Page 6: Danger
LEGAL DISCLAIMER AnalogFX accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. -
Page 7: Introduction
These are only two examples of how to use a vocoder - we encourage you to use your creativity and explore the many uses of your vocoder. Synton Syntovox 222 is used to associate the sound of this module and is not correlated with AnalogFX. -
Page 8: Installation
VXC-2220 V1.0A INSTALLATION For those of you who can’t wait to use your new VXC-2220, the following should get you set up and running quickly. Check the contents in the shipping carton The VXC-2220 is shipped with the following items: 1. -
Page 9: Connect To Power
V1.0A 2.2 CONNECT TO POWER Connect the VXC-2220 to a power supply which is able to provide 125mA on both the positive and negative 12V rails. The VXC-2220 does not require the 5V rail. If phantom power for the microphone is required also connect the DC power connector for the phantom power supply. -
Page 10: Power Up
2.5 START VOCODING The VXC-2220 operates in the normal note range (C1 to C6) and is quantized to 1 semitone. Set the speech level until the speech level LED blinks on peak level input. Then set the VCO level until the... -

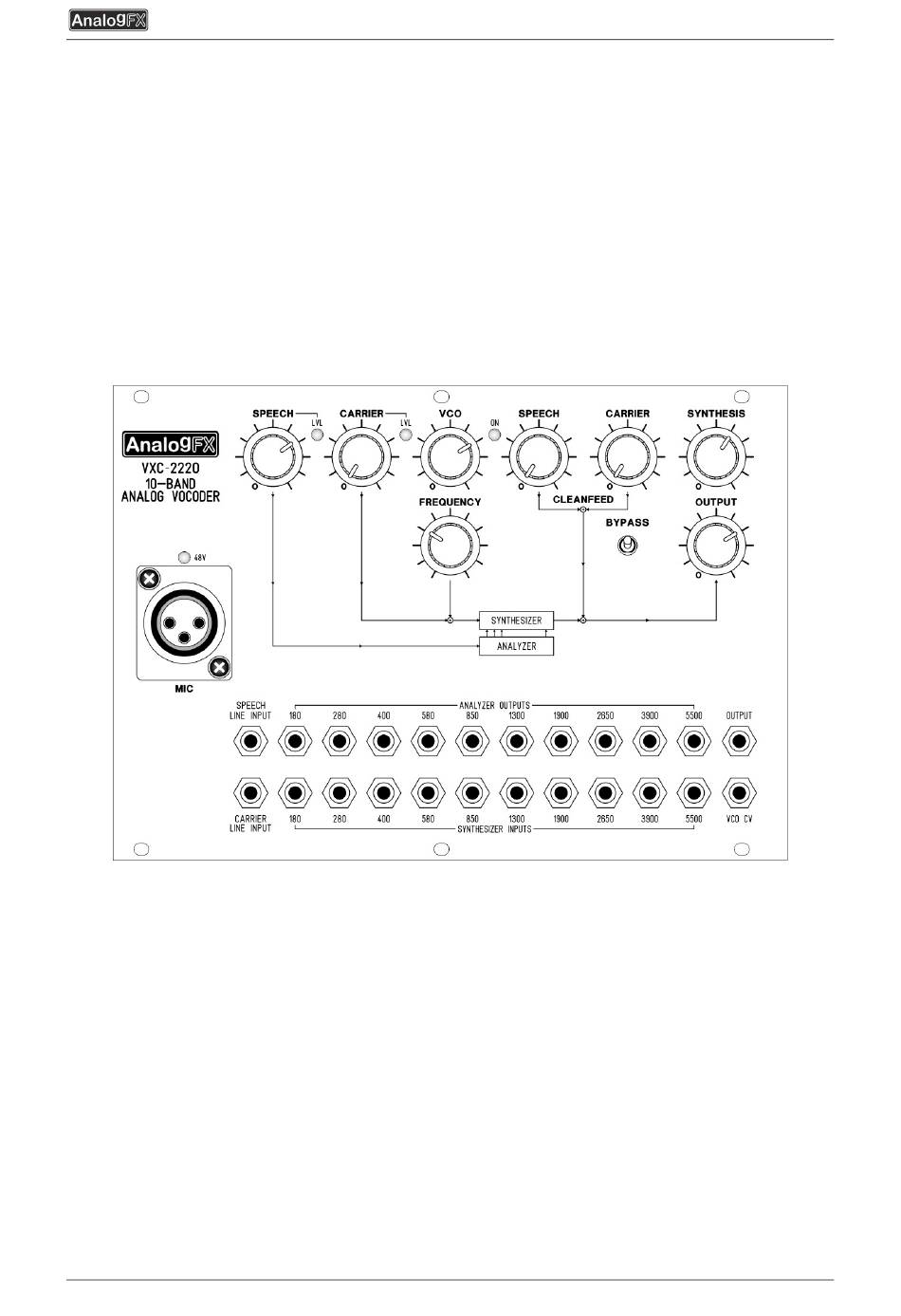

Page 11: General Description
VXC-2220 V1.0A GENERAL DESCRIPTION 3.1 INPUT SECTION SPEECH: Input level of the speech signal coming from the XLR microphone input or the speech line input. Set the speech level until the LED level blinks during peak input levels. If the LED does not blink, the level is too low and needs to be increased. -
Page 12: Inputs
VXC-2220 V1.0A 3.1.1 INPUTS INPUTS MICROPHONE INPUT: Microphone input for dynamic microphones or condenser microphones. Note: If you use a condenser microphone that requires phantom power enable the phantom power by connecting the phantom power DC connector on the backside. -
Page 13: Vco Section
VCO LEVEL: Set the audio level of the oscillator output. This signal is feed through the carrier processor. FREQUENCY: Frequency control of the oscillator. The VXC-2220 oscillator operates in the normal note range (C1 - C6) and is quantized to 1 semitone. The... -
Page 14: Filter Section
VXC-2220 V1.0A 3.3 FILTER SECTION OUTPUTS ANALYZER : Outputs of envelope followers for each individual filter bank. Levels from 0V to 10V. INPUTS SYNTHESIZER : Envelope inputs to VCA for each individual filter bank of the synthesizer part. Accept input levels from 0V to 10V. -
Page 15: Block Diagram
VXC-2220 V1.0A BLOCK DIAGRAM... -
Page 16: Specification
VXC-2220 V1.0A SPECIFICATION INPUTS MICROPHONE INPUT XLR symmetrical SPEECH LINE INPUT 3.5mm mono jack CARRIER LINE INPUT 3.5mm mono jack SYNTHESIZER INPUTS 1..10 3.5mm mono jack MICROPHONE INPUT IMPEDANCE 1K Ohm SPEECH LINE INPUT IMPEDANCE 100K Ohm CARRIER LINE INPUT IMPEDANCE... -
Page 17: Service And Support Information
6.3 CARING FOR THE VXC-2220 Clean the VXC-2220 with a soft, slightly moist cloth only – do not use solvents or abrasive detergents. Heed the safety warnings at the beginning of the manual. Don’t drop the unit. If you are shipping your... -
Page 18: Legal Notes
LEGAL NOTES 7.1 NO LIABILITY FOR CONSEQUENTIAL DAMAGES Neither AnalogFX nor anyone else involved in the creation, production, or delivery of this product shall be liable for any direct, indirect, consequential, or incidental damages arising out of the use of, or... -
Page 19: Appendix A - Calibration
VXC-2220 V1.0A APPENDIX A - CALIBRATION The VXC-2220 vocoder has 2 manual calibration points which can be set on the backside of the unit. It’s not recommend to adjust these settings. Refer to qualified technical personal for adjust these settings. - Page 20 VXC-2220 V1.0A...
