6 Location of Controls and Components

6.1.

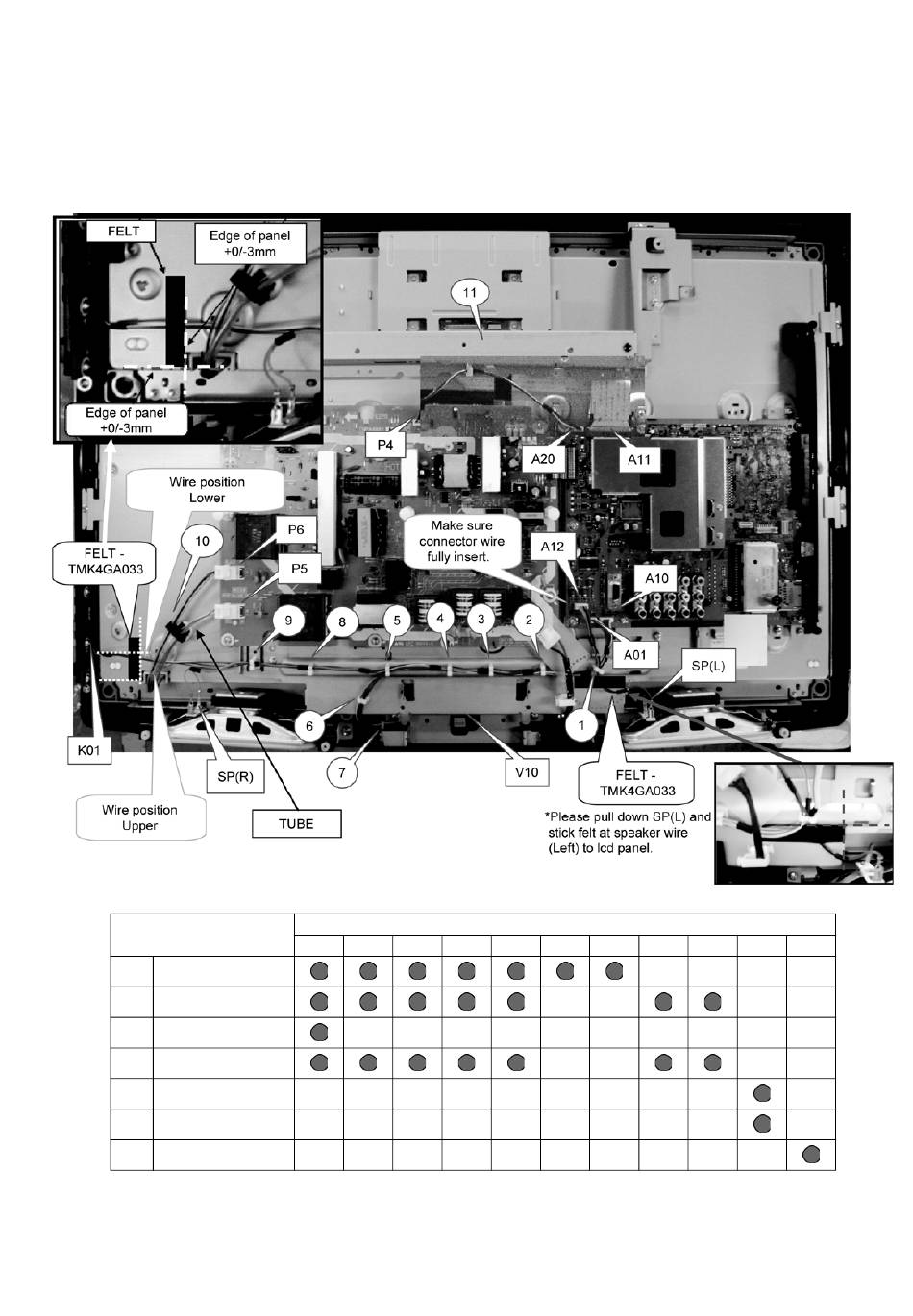

Wire Dressing

1. Wiring No. 1 ~ No.7
2. Remove dust of terminal of LVDS and PB connector. (by ion blow) Pos. A11
3. Insert LVDS into A11.
Wire
No.1 A10 ~ V10
No.2 A01 ~ K01
No.3 A12 ~ SP(L)
No.4 A12 ~ SP(R)
No.5 ~ P5
No.6 ~ P6
No.7 A20 ~ P4
1
2
3
4
11
Clamper
5
6
7
8
TH-L32S10R
9
10
11
