Non-Programmable Thermostats

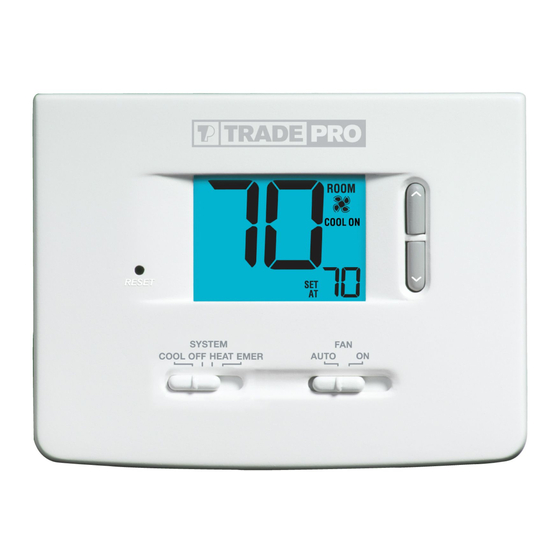

TP-N-511
TP-N-521
1 Specifications
2 Installation
3 Setting User Options
Warning
Attention
Read all instructions before proceeding.
This thermostat requires 24 Volt AC Power or two (2) properly installed
"AA" Alkaline batteries for proper operation. When connecting 24 Volt
AC Power the batteries may be installed as a backup.
installation and all components of the system shall conform to
Class II Circuits per NEC code.
For use only as described in this manual. Any other use will void warranty.
1 Specifications
This thermostat is compatible with:
• Single stage heat / cool conventional and heat pump systems
• Conventional systems up to 2 heat / 1 cool (TP-N-521)
• Single compressor heat pump systems with an auxiliary heat stage (TP-N-521)
• 250 – 750 millivolt heat only systems
Electrical and control specifications:
• Electrical Rating: 24 Volt AC
• 1 amp maximum load per terminal
• AC Power: 18 – 30 Volts AC
• DC Power: 3.0 Volt DC (2 "AA" Alkaline Batteries Included)
• Control Range: 45° – 90° F (7° – 32° C)
• Temperature Accuracy: +/- 1° F (+/- .5° C)
Terminations
• TP-N-511 – Rc, Rh, O, B, Y1, W1, G, C
• TP-N-521 – Rc, Rh, O, B, Y1, E/W1, G, W2, C
Single Stage Heat / Cool
Conventional and Heat Pump
Up to 2 Heat / 1 Cool
Conventional and Heat Pump
Model number is located on
back of thermostat
4 Operating Your Thermostat
5 Additional Operation Features
6 Thermostat Maintenance
Turn off power to the heating or cooling
equipment before installation.
For installation by experienced service
technicians only.
®
Manual
Thermostat
User
TPN-100-01
Advertisement
Table of Contents
Related Manuals for TradePro TP-N-511
Summary of Contents for TradePro TP-N-511
- Page 1 • Control Range: 45° – 90° F (7° – 32° C) • Temperature Accuracy: +/- 1° F (+/- .5° C) Terminations • TP-N-511 – Rc, Rh, O, B, Y1, W1, G, C • TP-N-521 – Rc, Rh, O, B, Y1, E/W1, G, W2, C TPN-100-01...
- Page 2 Avoid installation in locations where the thermostat can be affected by drafts, dead air spots, hot or cold air ducts, sunlight, appliances, concealed pipes, chimneys and outside walls. Install your new TRADEPRO thermostat in 5 basic steps: ® 1 Install the Sub-Base...
- Page 3 Provide Power • For 24 Volt AC power, you must connect the common side of the trans- former to the C terminal on the thermostat sub-base. • For primary or back-up power, insert the 2 supplied “AA” type alkaline batteries into the battery compartment located in the rear housing of the thermostat.
- Page 4 Heat Pump Systems Typical Wiring Configurations NOTE: The “Installer Switch” option will be configured in the next step. 1 HEAT / 1 COOL - No Auxiliary Heat Set Installer Switch to HP 24 Volt AC Power Connected to Rh with supplied Jumper Wire O or B Changeover Valve [note 2] Compressor Relay Fan Relay...
- Page 5 Attach Thermostat to Sub-Base 1. Line up the thermostat body with the sub-base. 2. Carefully push the thermostat body against the sub-base until it snaps into place. 3. Insert quick reference card into slot on top of thermostat. 3 Setting User Options Advanced User Options User options allow you to customize some of your thermostats features.
- Page 6 4 Operating Your Thermostat Setting the System Control Mode The System Control has several modes of operation that can be selected by moving the SYSTEM switch to the appropriate position. COOL Only your cooling system will operate Heating and cooling systems are off. HEAT Only your heating system will operate.
- Page 7 ® the duration of the warranty period from the original date of purchase by a professional service technician. TRADEPRO agrees to repair or replace at its option any TRADEPRO thermostat under ® ® warranty provided it is returned postage prepaid to our warranty facility in a padded carton within the warranty period, with proof of the original date of purchase and a brief description of the malfunction.
