Untangle u25xw Setup Manual

Package Contents
The u25xw package includes:
VESA mounting hardware
●
Power supply (12V 3A adapter and plug)
●
Antennae (2x)
●
Rubber feet
●
Ethernet cable
●
u25xw appliance
●
Installation
If necessary, use the included VESA mounting hardware to mount the appliance.
●
If you are not mounting the appliance, attach the included rubber feet to the bottom of the appliance.
●
Fasten the included antennae to the WiFi RP-SMA connectors located on the rear panel.
●
Connect the ethernet cable from your Internet modem or router to the Internet port (LAN 1) located on the rear panel.
●
Connect the ethernet cable from your LAN switch to the LAN port (LAN 2) located on the rear panel.
●
Plug in the power adapter to a power source and connect it to the 12V power input located on the rear panel.
●
Review the power indicator on the front of the appliance. If the indicator is green, the appliance is powered on.
●
If the appliance is not powered on, press the power button.
●
untangle.com​ ​ ​ ​ | © Copyright 2018. Untangle, Inc. All rights reserved.

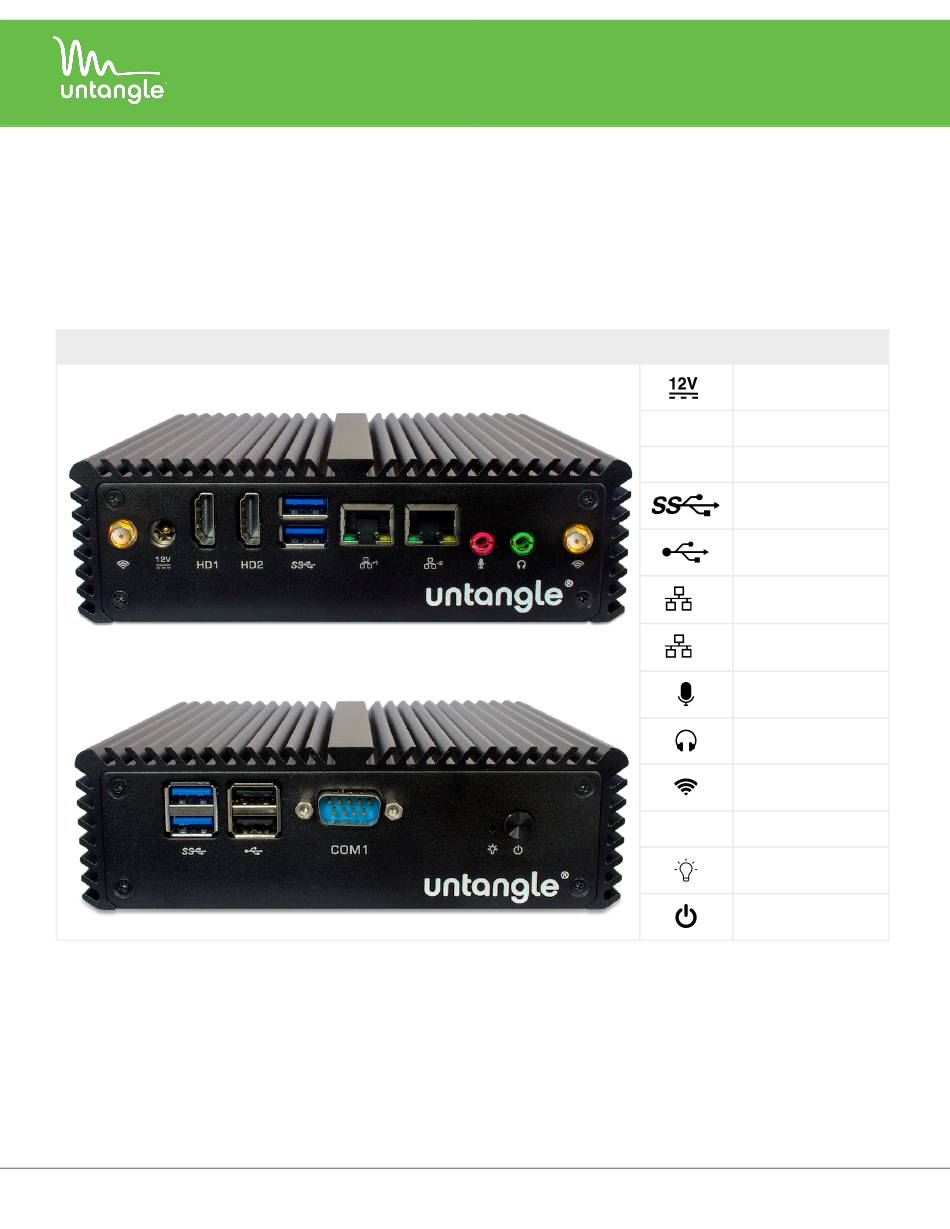

u25xw rear and front panels.
Rear Panel
Front Panel
u25xw Setup
Power input
HD1
HDMI port
HD2
HDMI port (disabled)
USB3 ports
USB2 ports
-1
Internet port
-2
LAN port
Microphone (disabled)
Audio (disabled)
WiFi RP-SMA connector
COM1
Serial port (disabled)
Power indicator
Power button
u25xw Setup Guide - Page 1
Guide
