Elecom JC-W01U - Gamepad Converter Manual

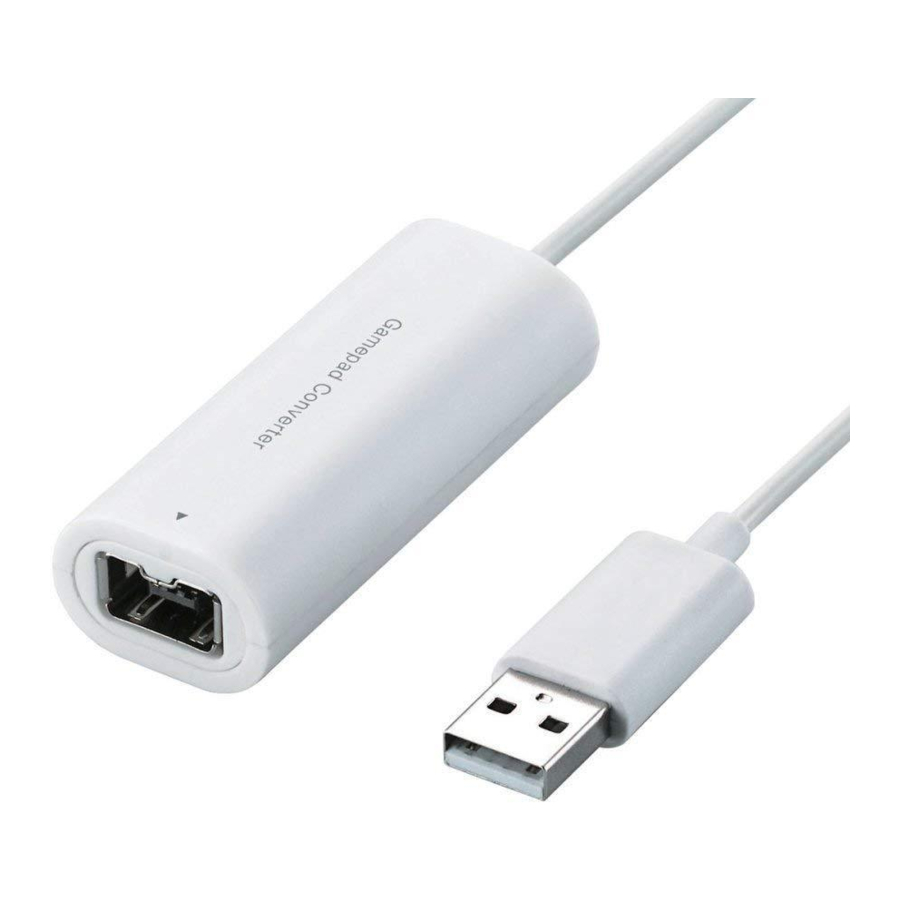

Name and function of each part

Name and function of each part

  1. USB connector
  2. Controller port

The table shows the button mapping when the Classic Controller / Classic Controller Pro is attached.

Controller button Button on the PC
y button 1 button
x button 2 button
b button 3 button
a button 4 button
L button 5 button
R button 6 button
Z L button 7 button
Z R button 8 button
-button 9 button
+ button 10 button
HOME button Turbo ON/OFF button

Connecting the controller to this product

Connecting the controller to this product
Connecting the controller to this product

Connecting this product to a PC

Insert the USB connector of this product into the USB port of the PC.
The product will be automatically recognized by the PC.
Connecting this product to a PC
warningEnsure that it is connected to a port that supplies 500mA power.

  • You can insert or remove the USB even when the PC is switched on.
  • Please ensure that the USB connector is the right side up and connected correctly.
  1. The Windows standard driver will be installed automatically.
    The connection between this product and the PC is completed.

Checking the operation

Check the operation from the "Game Controller" screen of the control panel.
Follow the steps below to open the "Game Controller" screen.

The messages may differ across OS. Please check against your OS.

  • For Windows ® 10
    From the start menu, click (Settings), select "Devices" "Bluetooth and other devices", then click "Devices and printers" under "Related settings". Right click "JC-W01U" and select "Game Controller settings".
  • For Windows ® 8.1
    Right-click the Start button in the bottom left-hand corner of the screen and select "Control Panel" → "Devices and Printers" → "Hardware and Sound". Right click "JC-W01U" and select "Game Controller settings".
  • For Windows ® 7
    Select "Start" menu → "Devices and Printers". Right click "USB Gamepad" and select "Game Controller settings".
  • For Windows Vista ® Select "Start" menu → "Control Panel". Click "Hardware and Sound", then click "Game Controller".
  • For Windows ® XP Select "Start" menu →"Control Panel". Click "Printer and other Hardware", then click "Game Controller".
  1. Select "JC-W01U" from the game controllers and click the "Properties" button.
    Checking the operation - Step 1
  2. Check the function of each button under the "Test" tab.
    Checking the operation - Step 2

Axes- Shows the movement of each axis.
Buttons- The corresponding number (1-10) will light up when each button is tapped.
Point of view hat- Shows the movement of the hat switch (POV).

  1. Click on the "OK" button.
    Close the "JC-W01U properties" screen.
  2. Click on the "OK" button.
    Close the "Game Controllers" window.
    If the movement of each button is correct, the controller is recognized correctly.

How to use the continuous fire function

The continuous fire function can be set for each button (1 to 10) on the controller. You can choose to enable continuous fire function only for certain buttons or for all buttons.

  • The continuous fire function has two modes: manual continuous fire mode, in which continuous fire only occurs while the button is pressed, and automatic continuous fire mode, in which continuous fire continues when the button is released.
  • Continuous fire speed cannot be changed.

To enable continuous fire

Press the button for which you want to activate continuous fire while holding down the HOME button.
Press once to enter manual continuous fire mode.
Press again to enter automatic continuous fire mode.
Press again to return to normal mode (continuous fire OFF).

Disable continuous fire for all buttons

Double press the HOME button quickly. All buttons will return to normal mode (continuous fire OFF).

Specifications

Compatible models PC/AT compatible machines running Windows 10, 8.1, 7 (up to SP1), Vista (up to SP2), XP (SP3) equipped with a USB port.
(Updating the OS or installing a service pack may be necessary.)
Functions during operation 4 axes, 10 buttons, D-pad (POV)
Compatible controllers Classic Controller (RVL-005)
Classic Controller PRO (RVL-005 (-02))
Dimensions Width 62.0 mm x Depth 26.0 mm x Height 17.0 mm * excludes cable
(Width 2.45 in x Depth 1.03 in x Height 0.7 in * excludes cable)
Interface USB
Main unit weight Approximately 32 g (approximately 1.13 oz)
Cable length Approximately 1.0 m (approximately 3.3 ft)
Operating temperature/ humidity 5°C to 40°C / 90% RH or less (without condensation)
(41°F to 104°F/ 90% RH or less (without condensation))
Storage temperature/ humidity -10°C to 60°C / 90% RH or less (without condensation)
(14°F to 140°F/ 90% RH or less (without condensation))

Safety Precautions

Be sure to observe the following precautions in order to ensure safe use.


Ignoring these precautions may lead to inappropriate handling that may cause death or serious injuries.

Ignoring these precautions may lead to inappropriate handling that may cause serious injuries or damage.

Prohibited action

dangerMandatory action

cautionSituation that needs attention


dangerIf a foreign object (water, pieces of metal) enters this product, stop using immediately and remove it from your PC. Continuing to use the product as it is may cause a fire or electric shock.

dangerIf the product is functioning abnormally, such as heating up, generating smoke, or giving off a strange smell, stop using it immediately and shut down your PC. After checking that the product is not generating heat that can cause burns, remove it from your PC. Afterwards, please contact your dealer. Continuing to use the product may cause a fire or electric shock.

Please do not drop or hit this product.
If this product is damaged, stop using it immediately and remove it from your PC. Afterwards, please contact your dealer. Fires or electric shocks may occur if this product is used when damaged.

Do not attempt to disassemble, modify or repair this product.
Doing so may cause a fire, electric shock, or product damage. Malfunctions are not covered under the warranty.

Do not put this product in a fire, as the product may burst, resulting in a fire or injury.

Please do not insert or pull out the receiver unit with wet hands. In addition, do not modify or forcibly bend the product. It will cause a fire or electric shock.


Do not place this product in any of the following environments:

  • In cars under the sun, in direct sunlight, or around heaters and other places where high temperatures occur.
  • In a moist place or a place where condensation may occur.
  • In an uneven place or a place exposed to vibration.
  • In a place where a magnetic field is generated (such as near a magnet.)
  • In a dusty place.

dangerThis product does not have a waterproof structure.
Use or store in a place not exposed to liquids such as water. Any liquid, such as rain, water spray, juice, coffee, or sweat, as well as steam, may cause a breakdown in this product.

cautionWhen you wish to dispose of this product, be sure to do so in accordance with the local ordinances and laws of your area.

Limitation of Liability

  • In no event will ELECOM Co., Ltd be liable for any lost pro ts or special, consequential, indirect, punitive damages arising out of the use of this product.
  • ELECOM Co., Ltd will have no liability for any loss of data, damages, or any other problems that may occur to any devices connected to this product.

Compliance status
https://www.elecom.co.jp/global/certification/ ;


This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

  1. this device may not cause harmful interference, and
  2. this device must accept any interference received, including interference that may cause undesired operation.

In order to make improvements to this product, the design and specifications are subject to change without prior notice.

Responsible party (For FCC matters only)
Around The World Trading Inc.,
7636 Miramar Rd #1300, San Diego, CA 92126
elecomus.com

ELECOM CO., LTD.
www.elecom.co.jp/global/

ELECOM Korea Co., Ltd.

Dome-Bldg 5F, 60, Nambusunhwan-ro 347-gil, Seoch o-gu,

Seoul, 06730, South Korea

TEL: +82 (0) 2 - 1588 - 9514 FAX: +82 (0) 2 - 3472 - 5533 www.elecom.co.kr

ELECOM Sales Hong Kong Ltd.

2/F, Block A, 2-8 Watson Road, Causeway Bay, Hong Kong

TEL: +852 2806 - 3600 FAX: +852 2806 - 3300 email: info@elecom.asia

ELECOM (SHANGHAI) TRADING Co.,Ltd

Room 208-A21, 2nd floor, 1602 Zhongshanxi Road,

Xuhui District, Shanghai, China, 200235

TEL: +86 021-33680011

FAX: +86 755 83698064

ELECOM Singapore Pte. Ltd

Blk 10, Kaki Bukit Avenue 1,

#02-04 Kaki Bukit Industrial Estate, Singapore 417942

TEL: +65 6347 - 7747

FAX: +65 6753 - 1791

  • Unauthorised copying and/or reproducing of all or part of this manual is prohibited.
  • The specifications and appearance of this product may be changed without prior notice for product improvement purposes.
  • When exporting this product, check the export regulations for the country of origin.
  • Windows and Windows logo are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
  • Wii is a registered trademark of NINTENDO Co. Ltd. in Japan and other countries.
  • This product is an original product of ELECOM Co., Ltd. and is not a licensed product of NINTENDO Co. Ltd.
  • Company names, product names, and other names in this manual are either trademarks or registered trademarks.

A customer who purchases outside Japan should contact the local retailer in the country of purchase for enquiries. In "ELECOM CO., LTD. (Japan)", no customer support is available for enquiries about purchases or usage in/from any countries other than Japan. Also, no foreign language other than Japanese is available. Replacements will be made under stipulation of the Elecom warranty, but are not available from outside of Japan.

Gamepad converter
Manual, Safety precautions, and Compliance with regulations
1st edition, August 30, 2022
