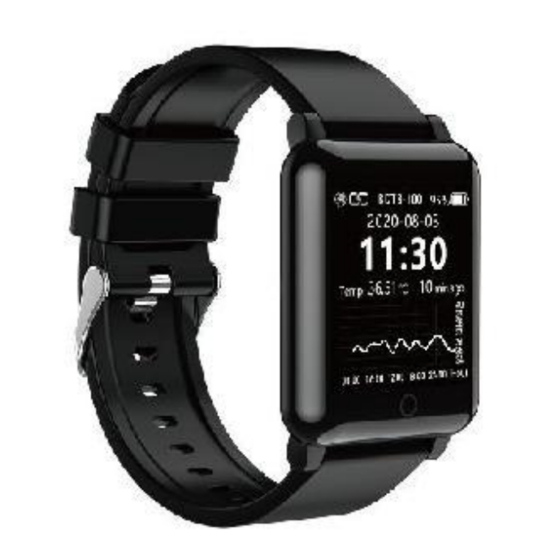

AMO BDTB-100 - Smart Band Quick Start Guide

Product Specifications

• Model No. BDTB-100
• Connectivity
  2.4GHz Bluetooth LE 4.2
• Sensor
  Dual temperature(Skin/Core), Blood pressure
  Blood oxygen, Heart rate, Activity, Respiratory rate
• User Interface
  1.3" TFT Display(240x240 HD)
  Touch button, Vibrator
• Power supply Lithium-polymer 3.7V, 105mAh
• Size
  Display: L 41 x W 35 x H 10.3 mm
  Wrist band: 260 mm
• Weight 107.8g

Getting Started

BDTB-100 is advanced tracking smart band that gives you all-day vital sign stats(skin/core temperature, heart rate, blood pressure, blood oxygen, respiratory rate, all-day activity, sleep quality).

Power on/off

• When using the product for the first time, you can turn on the product by pressing the button for 3 seconds. Charge the battery sufficiently before use. You can turn off the power on the device setting page.

Home Screen

• There are 3 types of home screens:

1. graph type, 2)
2. analog type, and
3. digital clock type. If you press and hold the button for more than 3 seconds on each home screen, the theme is sequentially changed to the next theme.

Social Distancing

• When someone approaches within 2m, the vibration will sound 3 times and a warning message will appear on the screen for 5 seconds. It checks every 10 minutes to check and record the information of nearby devices.


Vital sign monitoring

• BDTB-100 automatically tracks the following stats every 10 min: skin/core temperature, heart rate, blood pressure, blood oxygen, respiratory rate, all-day activity.
• For real-time measurement, wait for about 5 seconds withoutmoving from the BDTB-100 measurement screen to another screen, and the measured value will be displayed on the screen. Pressing the touch button moves to the next screen in sequence.


Setting

• If you press the button for more than 3 secondson the device setting screen, you can enter device setting page. There are 4 setting pages(Wake-up gesture, Brightness adjustment, Device reset, Device Power off)
• Pressing the touch button moves to the nextscreen in sequence. You can change setting by pressing the button for more than 3seconds on each setting page.

Cautions

Please read and comply with all of the instrucons provided in this manual before using the device. Failure to comply with the instruc ons given in this manual and/or using the device in ways other than the ones men oned in this manual may result in serious injury and/or damage the product.

• Do not charge in voltage over 5V/2A.
• Do not charge the product while it is wet.
• Do not wear the product while charging it.
• Do not place your product in a dishwasher, washing machine, or dryer.
• This product is splash and rain proof. It should not be worn while showering or swimming.
• Do not use the device in corrosive liquid or excessive heat environment.
• Do not open the enclosure or disassemble the product. If the product is disassembled arbitrarily, the waterproof or dustproof func on may be damaged.
• This product features a built-in ba ery, which is not user replaceable.

Tampering with your product or a emp ng to open it will void the warranty and can result in a safety hazard.

• Use only the charger that shipped with your product.
• This product is not a medical device, and is not intended to diagnose, treat, cure, or prevent any disease.

Bluetooth connection

Android 4.4 and above and iOS 8.2 and above: Open SmartHealth APP"Click connect device" in homepage -- Device list --Searching Device-Connect corresponding device--Connect successful.

This material contains CONFIDENTIAL and PROPRIETARY informa on of AMOSENSE Co., Ltd. or its affiliates and may be legally PRIVILEGED. You may not use, disclose, reproduce or distribute the informa on without AMOSENSE's authoriza on.
