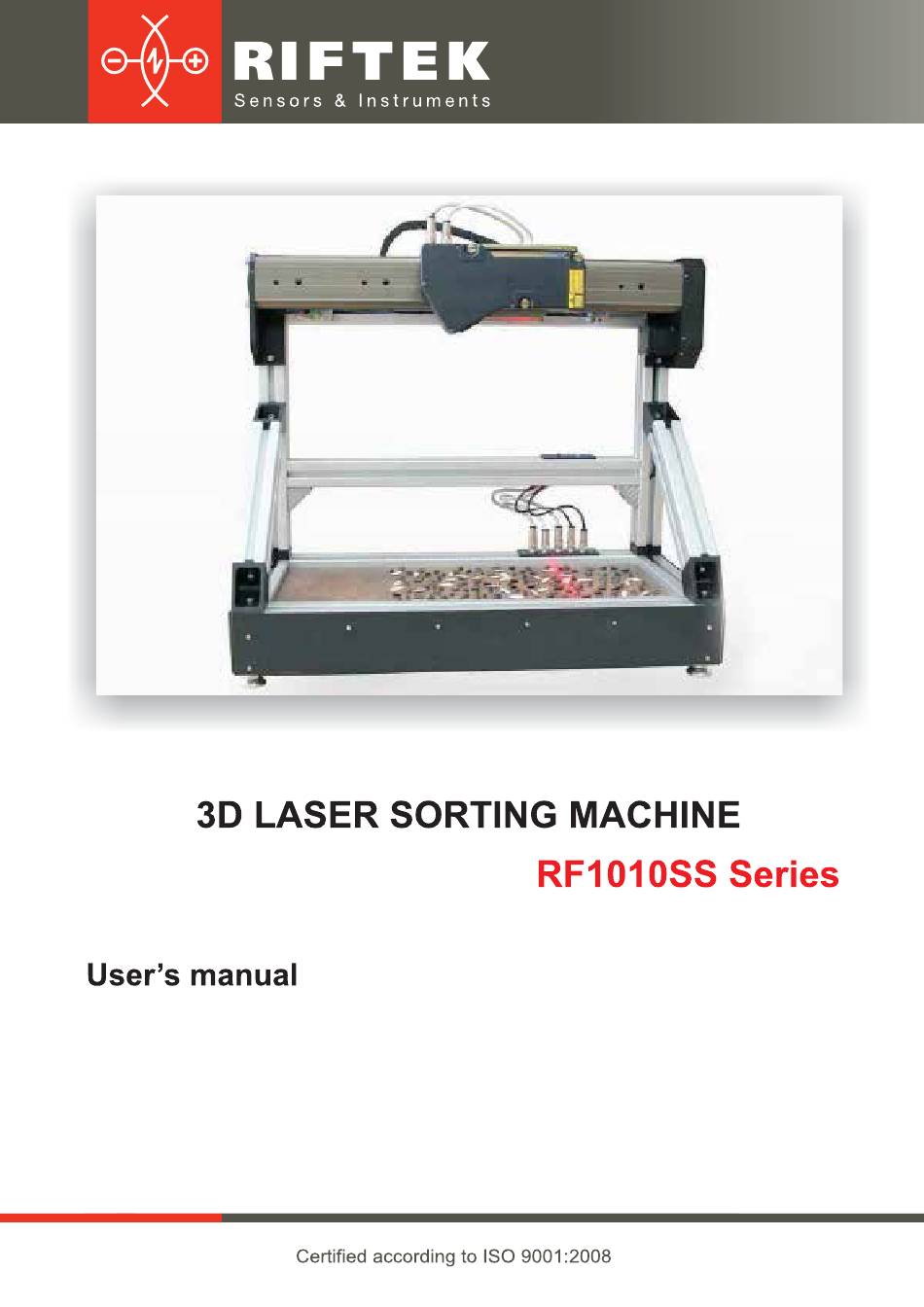

Riftek RF1010SS Series User Manual

3d laser sorting machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF1010SS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Riftek RF1010SS Series

  • Page 2: Table Of Contents

    3D Laser measurement machine, RF1010SS Contents Safety precautions ........................ 3 Electromagnetic compatibility ....................3 Laser safety .......................... 3 General information ......................4 Structure and operating principle ..................4 Basic technical data......................5 Dimensions .......................... 5 Preparation for work ......................6 8.1.

  • Page 3: Safety Precautions

    3D Laser measurement machine, RF1010SS Safety precautions  Use supply voltage and interfaces indicated in the machine specifications.  In connection/disconnection of cables, the machine power must be switched off.  Do not use machine in locations close to powerful light sources. ...

  • Page 4: General Information

    3D Laser measurement machine, RF1010SS General information The measuring machine is designed for non-contact measurement of geomet- rical parameters of objects, specifically sunflower seeds, and is a standalone software/ hardware system. Technical characteristics of the machine can be changed for a specific task. Structure and operating principle The work of the machine is based on the principle of 3D laser scanning of ob- ject/objects with subsequent construction of a 3D computer model and determination of...

  • Page 5: Basic Technical Data

    3D Laser measurement machine, RF1010SS distance to the object (Z coordinate of points) for each of a plurality of points along the laser line on the object (X coordinate of points). The machine works as follows. The laser scanner mounted on the carriage moves along the table 1, the direc- tion of the movement being the coordinate Y.

  • Page 6: Preparation For Work

    3D Laser measurement machine, RF1010SS Figure 3 Preparation for work  Connect the machine according to Fig. 1.  Install Qt version 4.8.0 libraries, Microsoft redistributable package 2010. The library set up program vcredist.exe is on CD which is part of the supply package.

  • Page 7: Operating The Machine

    3D Laser measurement machine, RF1010SS 9. Operating the machine The geometric parameters measurement cycle is fully automated and operation of the machine is reduced to the work with the program The program ensures:  control of the machine in the operation process and debugging modes, ...

  • Page 8: Measurement Procedure

    3D Laser measurement machine, RF1010SS three tabs – Length, Width, Height, and the field boxes common for the tabs: the box for displaying the histogram of the distribution of seeds in size, the box for setting the group interval as well as the upper and lower limits of the size range in histogramming.

  • Page 9: Calibration

    3D Laser measurement machine, RF1010SS 9.4. Calibration For the first start of the machine and once a month it is recommended to cali- brate the machine. To do this, remove all items from the working surface of the machine table and click Calibration. When the system status changes (e.g., because of transpor- tation, reassembly), calibration must be carried in a mandatory manner.

  • Page 10: Warranty Policy

    3D Laser measurement machine, RF1010SS Scanner displacement Calibrate the machine Scanner is out of Return scanner to the scanning range with the help of TestSignalBlock.exe program the scanning range (included in delivery set) The program fails to Perform diagnostics of the scanner with the help of rf620et-sp.exe program and us- connect with the ing description of the scanner.
