H3C PSR600-54A-B Power Supply User Manual-APW100
H3C PSR600-54A-B 电源手册-APW100
Overview 简介
•
The PSR600-54A-B is a DC output power supply that supports AC and
HVDV power input. It provides a maximum output of 600 W.
PSR600-54A-B 是一款提供直流输出的电源模块，既支持交流输入也支持
高压直流输入。这款电源模块的最大输出功率可达 600W。
•

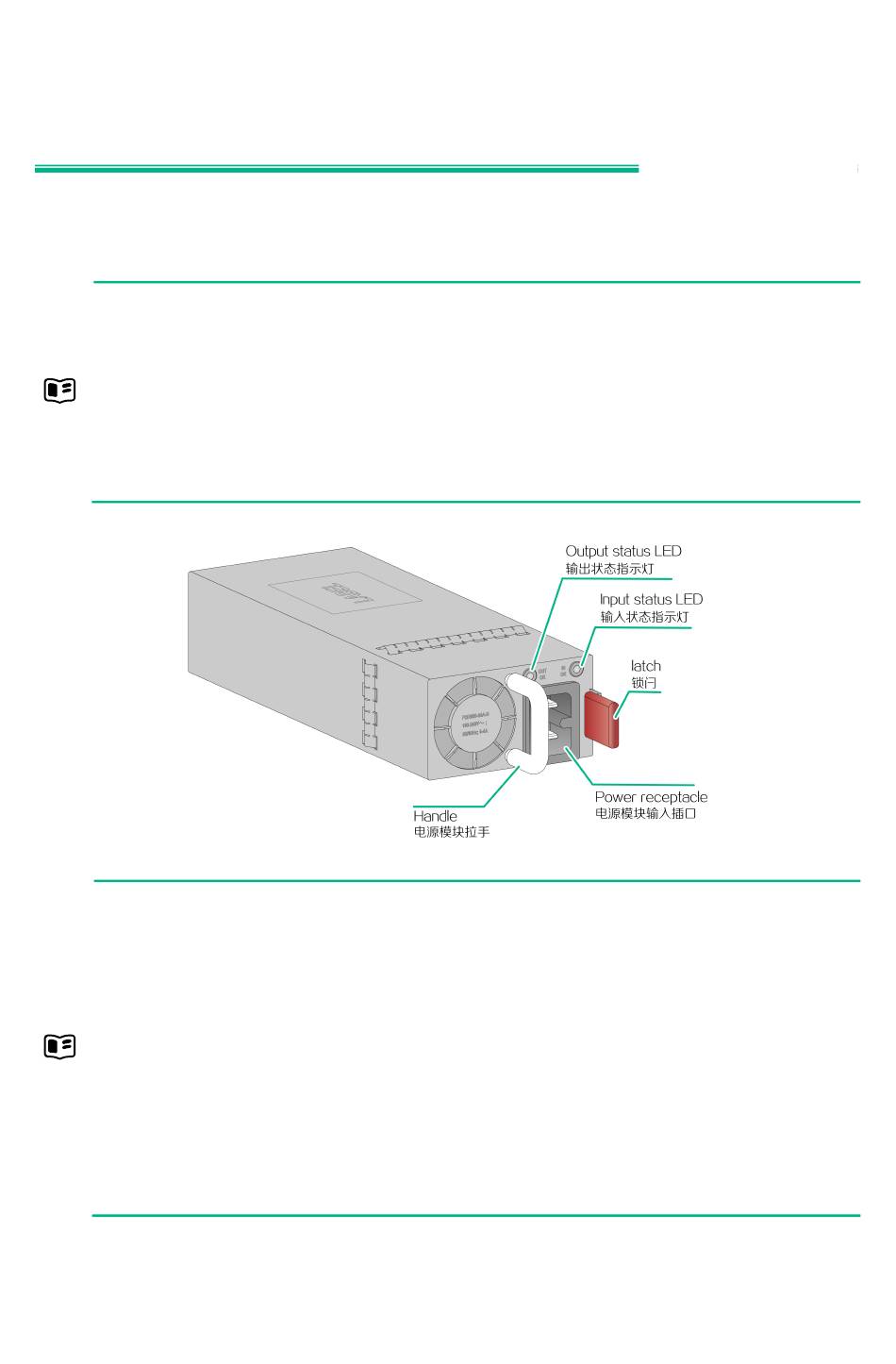

The PSR600-54A-B power supply exhausts air from its faceplate. The
following figure shows the PSR600-54A-B power supply. PSR600-54A-B
的风道风向是电源面板侧出风。下图展示 PSR600-54A-B 的外观。
•
The PSR600-54A-B power supply is applicable to multiple switch models.
The applicable switch models might change over time. For compatibility
of the power supply with switch models, contact the marketing personnel
or technical support. PSR600-54A-B 适用于多款交换机产品，其适用机型
的准确信息随着时间变化有更新的可能性，若您需要详细的适配信息，请
咨询市场人员或技术支持人员。
•
The restrictions for using the PSR600-54A-B power supply depend on
the switch model. For more information, see the installation guide or
hardware information and specifications for the switch. PSR600-54A-B 用
于不同交换机产品时可能存在不同的使用限制，具体请参考产品配套安
装指导或硬件描述。
1
BOM: 3101A0TR
Advertisement
Summary of Contents for New H3C Technologies PSR600-54A-B
- Page 1 H3C PSR600-54A-B Power Supply User Manual-APW100 H3C PSR600-54A-B 电源手册-APW100 BOM: 3101A0TR Overview 简介 • The PSR600-54A-B is a DC output power supply that supports AC and HVDV power input. It provides a maximum output of 600 W. PSR600-54A-B 是一款提供直流输出的电源模块，既支持交流输入也支持 高压直流输入。这款电源模块的最大输出功率可达 600W。 •...
- Page 2 Feature Description 特点 说明 Provide input undervoltage, output overvoltage, short-circuit, output overcurrent, and overtemperature protections. Self-protection 具有输出输入欠压保护、输出过压保护、短路保护、输出限流保护、过温保护 具有保护功能 等功能 Two power supplies can be connected in parallel to achieve 1+1 redundancy and load sharing. Redundancy 支持双电源模块并联工作，从而可以实现受电设备电源系统1+1备份，并且备 支持冗余备份 份电源间具有负载均流功能 You can remove one of power supplies in 1+1 redundancy while the device is operating.
- Page 3 5% RH to 95% RH, noncondensing Storage temperature 存储温度 -40°C to +70°C (–40°F to +158°F) LEDs 电源模块状态指示灯 The PSR600-54A-B power supply provides two LEDs on its faceplate to indicate the power input and output status. PSR600-54A-B 电源模块面板上有两个电源模块 指示灯，用于指示电源的输入、输出状态。 LED 指示灯...
- Page 4 Installing and removing the power supply 电源模块的安装 和拆卸 1. Safety precautions 安全注意事项 • Wear an ESD wrist strap and make sure the wrist strap makes good skin contact. 在安装和拆卸电源模块时请注意佩戴防静电手腕，并确保防静电手腕与皮 肤良好接触。 • Before installing the power supply, make sure the operating voltage of the external power supply system is as required by the power supply, and the output voltage of the power supply is as required by the powered device.
- Page 5 3. Installing the power supply 安装电源模块 • Keep the filler panel, packaging box, and packaging bags for the power supply secure for future use. 请妥善保管假面板及电源模块的包装盒、包 装袋等物品，以备将来需要时使用。 • Before installing the power supply on a switch, make sure it matches the switch model.
- Page 6 (2) Correctly orient the power supply (with the lettering on it upward), grasp the handle of the power supply with one hand and support its bottom with the other, and slide the power supply slowly along the guide rails into the slot. Make sure the latch on the power supply clicks into place.
- Page 7 (1) Connect the female connector of the power cord to the power input receptacle on the power supply. 将电源线带插孔的一端插到电源模块的输入插口上。 (2) Use a cable tie to secure the power cord to the handle of the power supply. 用 可拆卸式扎带将电源线固定到电源模块的拉手处，以防电源线脱落。 5. Removing the power supply 拆卸电源模块 •...
- Page 8 用一只手握住电源模块拉手，另一只手托住电源模块下方，将电源 模块沿着插槽导轨水平缓慢地拉出。 (5) Put the removed power supply into an antistatic bag. 将拆卸下来的电源模块放 到防静电袋中。 Copyright © 2021, New H3C Technologies Co., Ltd. The information in this document is subject to change without notice. Copyright © 2021 新华三技术有限公司 版权所有，保留一切权利 本文档中的信息如有更改，恕不另行通知...
