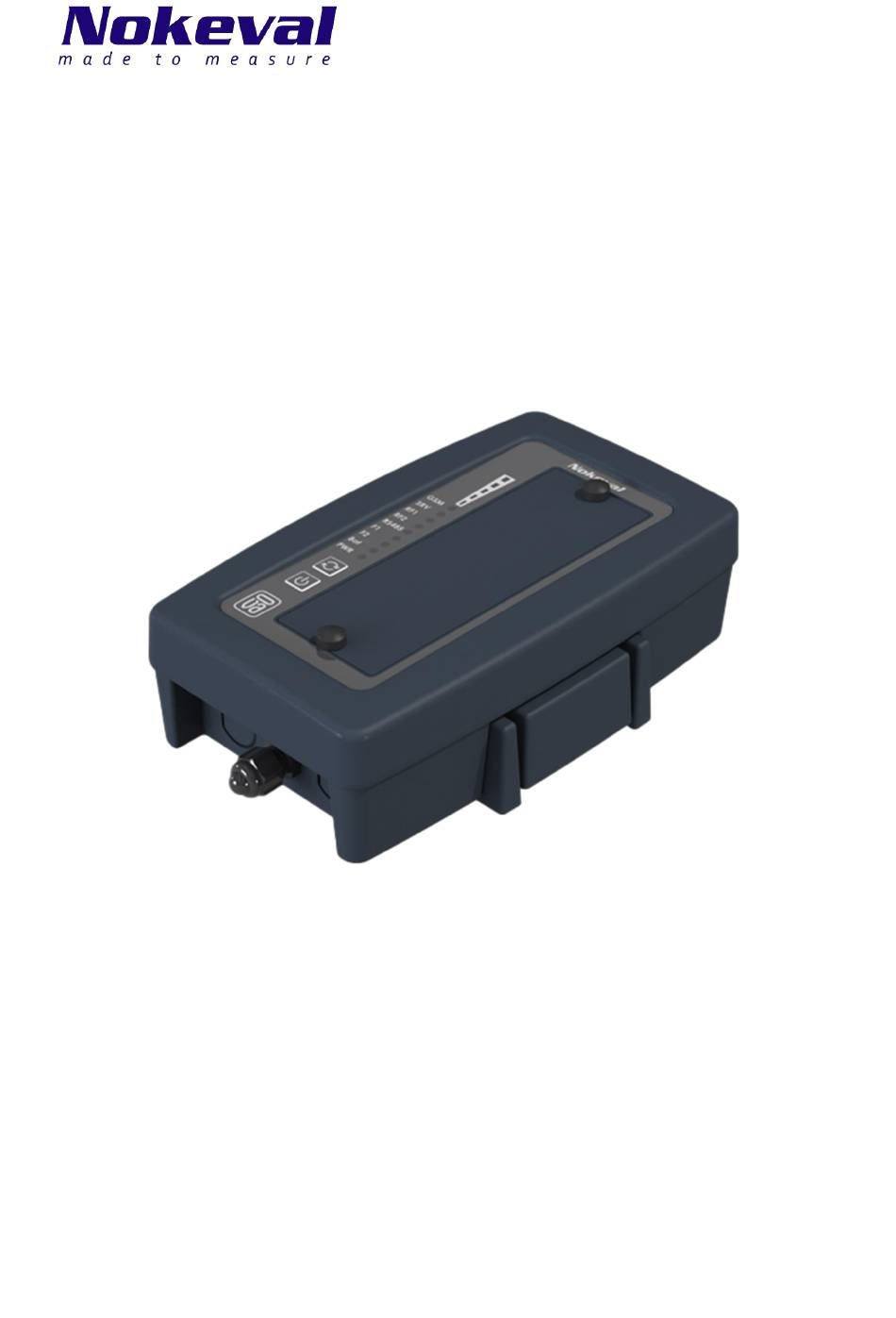

- Page 1 Cell2-Sky-Link-RS485-LTE/LAN User Manual ID11200 V31 24.9.2021 Firmware versions 1.0-1.0...
-
Page 2: Table Of Contents
Connection settings ..........................9 Programming connector .........................9 Conf menu ..............................9 Time settings ............................9 Serial settings ............................9 Network ..............................16 Nokeval Sky settings ..........................17 Buzzer ..............................18 Info ................................. 19 Mon menu ..............................19 Cal menu ..............................20 Usage ................................21 LEDs ................................ - Page 3 Multifunction button ........................... 22 Status information ............................ 22 Maintenance ..............................24 Cleaning ..............................24 Service ............................... 24 Troubleshooting ............................25 Specifications ..............................26 Environment ............................26 Measurements ............................26 User interface ............................26 Internal memory for buffered results ....................26 Backup batteries ...........................
-
Page 4: Introduction
One radio transmission can last approx. 2 seconds (compared to 20 ms of the Nokeval MTR series). This means that the number of transmitters within the range must be limited to avoid collisions and to allow radio time for each. -
Page 5: Installation
Installation Wall holder Install the base station to a wall or some other suitable surface with the separate wall holder. See the following dimensional drawing for the wall holder’s mounting hole distances. Use fastening accessories suitable for the wall material, like plugs and screws. The screws need to have a countersunk head. Installation location Choose an installation location that is central in relation to the radio transmitters. -
Page 6: Connections
Connections Power supply & serial RS-485 connector Inside the device, at the bottom right of the circuit board, is a four-pole spring cage / plug-in terminal block connector. It is a combined power supply and serial data connector. The table below describes the function of each connector pole. Symbol Description +24VDC... -
Page 7: Micro-Sim
RS-485 serial communication can be used to read results from external devices. The protocol can be Modbus, Nokeval SCL or also ASCII protocol for Vaisala WXT500 series weather transmitter. The RS-485 bus termination can be set with jumpers on the circuit board, as shown below. Extra jumpers can be put at the places marked in gray. -
Page 8: Backup Battery Case And Pol Connector
The base station functions as an RS-485 bus-master and queries the measurement data from other devices on the bus. In a typical application, such as the one presented in the diagram above, the base station regularly queries the RMD680 / RMD681 transmitter’s measurement data and sends it to the Ovaport server. -
Page 9: Configuring The Device
There is usually no need to configure the device since most of the settings are already at their best defaults. However, if you want to see what kind of settings there are or edit settings, use MekuWin program and DCS772 (USB-POL converter). You can download MekuWin from Nokeval’s web site www.nokeval.com for free. - Page 10 Protocol • Modbus • WXT5x0 Ascii • Baud rate 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 125000, 230400. Bits • (8 data bits, No Parity, 1 stop bit) • (8 data bits, No Parity, 2 stop bit) •...
- Page 11 • Unrecognized data - Modbus reply is wrong type or wrong length. • Timeout – No response was received from the device. • Exception – Device returned error code. • CRC error • Unknown error Overview views queries and replies status and the first result. For example, "OK 24.2", "Timeout", CRC error", "Unrecognized data"...
- Page 12 Modbus command / register type (search info on this from the other device’s manual). Discrete input and Coil status registers are bit data, and the result will be either 0 or 1. Nopsa radio data reads data from specific Nokeval radio receivers, such as the FT20. Register Register address (search info on this from the other device’s manual).
- Page 13 "Timeout", CRC error", "Unrecognized data" and so on. Examples of the Modbus settings The following examples are in the test connection where Nokeval FT20, TTM20X, Eurotherm 2216e and Nokeval RMD681 were connected to Modbus line and where Virtual IDs were set as follows.
- Page 14 Divider Virtual ID Status OK 25.2 Example of the Modbus settings for FT20 Config / Modbus / Query 2 Slave Register Type Input Register Register 1000 Results Data type Sint 16-bit Divider Virtual ID Status OK 15.3 Example of the Modbus settings for TTM20X Config / Modbus / Query 3 Slave Register Type...
- Page 15 Analog: Reads measurement results using the MEA command. Digital: Reads digital data using the DI command. The result is either 0 or 1. Nopsa radio data: Reads data from specific Nokeval radio receivers, such as the FT20. Channel 1 – 64. The channel on the device being read.
-
Page 16: Network
• Incorrect settings - Conf settings are incorrect • Limited - Only part of the sequential results is fetched, because virtual ID has overlapping with some other SCL query or “internal status” result. • Blocked – The result is not fetched, because virtual ID has overlapping with some other SCL query or “internal status”... -
Page 17: Nokeval Sky Settings
If DHCP is disabled, lines will appear where the IP address, subnet mask, gateway and DNS server addresses can be set. Firmware server These settings must be as shown in the image above. Nokeval Sky settings Network 0..255. The network address that must be the same for all devices on the same network. -
Page 18: Buzzer
0..10 dBm. Output power range. Channel 1..7. Disabled if effort “custom” is selected. The frequency channels are spaced at 200 kHz. At Efforts below 7, two adjacent channels may interfere. Channel Center frequency MHz 433.3 433.5 433.7 433.9 434.1 434.3 434.5 Auth. -
Page 19: Info
Info Info menu items are not configurable. They display various information about the device. Mon menu The monitor menu generally shows the status of the device and is mainly for manufacturer use. Many menu items purposes are clear by name, and most of them are not explained in this manual. -
Page 20: Cal Menu
Buffer memory: Buff1, Buff2, Buff3 and Flash sectors: If data arrives to the gateway faster than it can be send to the cloud, it stores the data in a buffer memory. First, the data passes through the device's RAM memories Buff1, Buff2 and Buff3. Data from memory Buff3 is sent to cloud. -
Page 21: Usage
Usage The base station does not require any continuous operation or intervention by the user. The device works independently and will not usually require attention after installation. However, from time to time, check that the device is still functional. LEDs The top five LEDs on the white background indicate the signal strength of the cellular network, the more LEDs light the better the signal. -
Page 22: Sky
Flashes twice Memory usage is over 33 % but less than 66% Flashes three times Memory usage is over 66 % but not yet full Continuous flashing five Memory is full times per second Solid light ** Received at least one packet in the last 10 minutes. Lights up every two second ** Received at least one packet in the last 30 minutes. - Page 23 Channel Description Sky radio background noise RSSI [dBm] Cellular modem RSSI (2G) or RSRP (LTE) [dBm] Cellular modem status: 0: Not connected 1: Unknown 2: 2G 3: 3G 4: LTE External power detected Battery voltage [V] CPU core temperature [°C]...
-
Page 24: Maintenance
Maintenance Cleaning The device is made from shock-proof technical plastic and the seams are sealed with a rubber gasket. It can be cleaned by wiping with a damp cloth. The device is not meant to be immersed into water or other liquids. Service If Bat LED indicates low battery voltage (red, see above BAT LED), the backup batteries (2 pcs size D alkaline cell) need to be replaced. -
Page 25: Troubleshooting
Ethernet connection. The battery level needs to be above certain level, to start the flashing of the new firmware. If the update will not work at all, or you want to send the device for service, contact Nokeval support with the contact information given below. -
Page 26: Specifications
IP65, except power supply which is IP20 Enclosure material Plastic (PC+ABS), silicon rubber Compatibility Nokeval Sky series 433 MHz ISM band transmitters. Ovaport network service. Measurements Weight About 850 g including the wall holder and an external antenna Maximum dimensions... -
Page 27: Other
Other Firmware update Over-The-Air (OTA) firmware update RS485 external connector pins Modbus RTU or Nokeval SCL protocols Cloud connection Compatibility Nokeval Ovaport cloud service... -
Page 28: Warnings
Read this manual carefully before using the device. Only Nokeval authorized services may repair or modify the device. The device contains no user serviceable parts. The device must not be disposed of in household waste. Observe local regulations... -
Page 29: Open-Source Software Notice
Open-Source Software Notice This product contains the open-source software as described further below. lwIP is licenced under the BSD license: Copyright (c) 2001-2004 Swedish Institute of Computer Science. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1. - Page 30 the original version of the Work and any modifications or additions to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner.
- Page 31 unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all...
-
Page 32: Trademarks
FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS WITH THE SOFTWARE Trademarks All trademarks mentioned are the legal property of their respective owners. Manufacturer Nokeval Oy Rounionkatu 107 FI-37150 Nokia Finland Phone: +358 3 342 4810 WWW: http://www.nokeval.com/...
