Summary of Contents for Telpo TPS980T

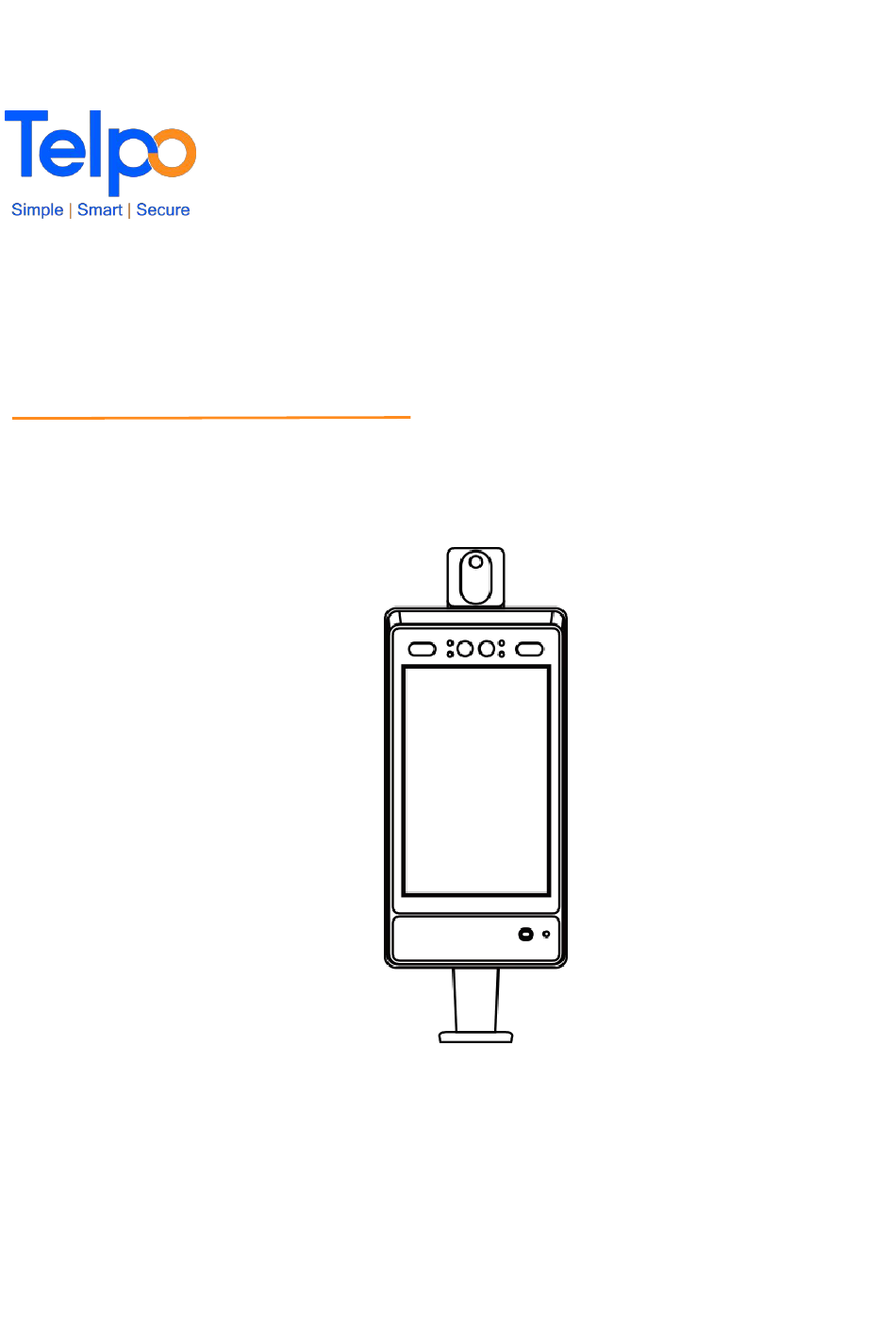

- Page 1 TPS980T Quick Start Guide Version: 1.1 Date: Mar. 2020 Telepower Communication Co., Ltd.
- Page 2 Notice our company owns the copyright of all content contained in this guide. Without our company's permission, the content shall not be reproduced, modified or used in any form. As the product is updated regularly, we cannot guarantee the consistency of the actual product with the contents of the manual.
-
Page 3: Table Of Contents
Contents 1 Overview................................4 2 Device Installation............................4 2.1 Wall Mounted.............................. 4 2.2 Turnstile Mounted............................6 2.3 Height and Angle............................7 2.4 Cable Connection............................7 3 Using Tips................................9 3.1 Distance for Temperature Measurement....................9 3.2 Body Part for Temperature Measurement..................... 9 3.3 Cautions for Temperature Measurement.................... -
Page 4: Overview
1 Overview 2 Device Installation Installation environment To ensure the temperature measurement accuracy of the equipment, the installation environment has the following requirements. Equipment installation indoor environment. The equipment should not be directly facing the air conditioner and fan, avoid direct sunlight, and require ... -
Page 5: Wall Mounted
Temperature detection distance: The best distance for temperature measurement: the detection temperature is between 0.5-0.7 m with high accuracy, and the accuracy decreases if the temperature exceeds this range. Body temperature detection: To ensure the accuracy of temperature detection, temperature detection is performed on the forehead. ... -
Page 6: Turnstile Mounted
Adjust the tilt angle of the device according to your actual needs. 2.4 Turnstile Mounted Thread the cable through the nut, the cable holes on the turnstile pedestal’s top panel, and route them through the bracket. Wire the cable with the terminals in the turnstile pedestal. ... -
Page 7: Height And Angle
2.5 Height and Angle Telepower Communication Co., Ltd. | Smart Terminal and Solution Provider Page 7 of Page 17... -
Page 8: Cable Connection
2.6 Cable Connection Telepower Communication Co., Ltd. | Smart Terminal and Solution Provider Page 8 of Page 17... -
Page 9: Using Tips
3 Using Tips 3.1 Distance for Temperature Measurement Best distance for temperature measurement: 0.5m. Recommended distance for temperature measurement is 0.4m to 0.6m. Otherwise the precision will affected as the distance reduced or increased. 3.2 Body Part for Temperature Measurement In order to guarantee the accuracy of temperature detection, the temperature measurement area is the ... -
Page 10: User Registration
4 User Registration 4.1 Website This document is for online version of Telpo Face. In this case, TPS980T device is connected with Cloud. Please get account and password from Telpo team. Open web site: https://face.telpocloud.com Please register member’s face information via either Cloud mode or Device mode. -
Page 11: Add Department
4.2.3 Add Department When you add the sub-department, you need to select the parent department and click the add button. 4.2.4 Add Positions In this page, you can add/update/delete Positions. Telepower Communication Co., Ltd. | Smart Terminal and Solution Provider Page 11 of Page 17... -
Page 12: Add Member
In this page, you can add/update member photo and information. 4.2.6 Synchronize Member to Device (1) Click the left top icon and input the default password “telpo” enter the admin panel in TPS980T. (2) Click the “Activate” button to active device first. Then go to Data management. - Page 13 (3) The “Auto update” open means device will auto check update every 10 minutes from server. (4) Click the “Initialize” button to sync member from server. Telepower Communication Co., Ltd. | Smart Terminal and Solution Provider Page 13 of Page 17...
-
Page 14: Register From Device
Please follow chapter 4.2.1 and 4.2.2 to add device first. 4.3.2 Add member (1) Click the left top icon and input the default password “telpo” enter the admin panel in TPS980T. Telepower Communication Co., Ltd. | Smart Terminal and Solution Provider Page 14 of Page 17... - Page 15 (2) Click the “Member Management” button. (3) Click the bottom blue button to add a member from device. Telepower Communication Co., Ltd. | Smart Terminal and Solution Provider Page 15 of Page 17...
-
Page 16: Face Recognition And Temperature Measurement
(4) Add information as below, including photo, user name, user ID, valid time. Then click “Register”. 5 Face Recognition and Temperature Measurement After registering, please stand in front of TPS980 and you will see the successful result as below. Telepower Communication Co., Ltd. | Smart Terminal and Solution Provider Page 16 of Page 17... -
Page 17: Time Attendance
6 Time Attendance If you need to use the time attendance function, please login website and check below functions. 6.1 Work Time Management Manage your work time. 6.2 Attendance Management To manage your attendance group. You can select the members to this group. Telepower Communication Co., Ltd. -
Page 18: Attendance Records
6.3 Attendance Records All attendance records are shown here. You can select data and export as excel. Telepower Communication Co., Ltd. | Smart Terminal and Solution Provider Page 18 of Page 17... - Page 19 Simple | Smart | Secure Telepower Communication Co., Ltd www.telpo.com.cn Tel： +(00)86-757-86227898 Email：business@telpo.com Add：Foshan City, Guangdong Province, China...
