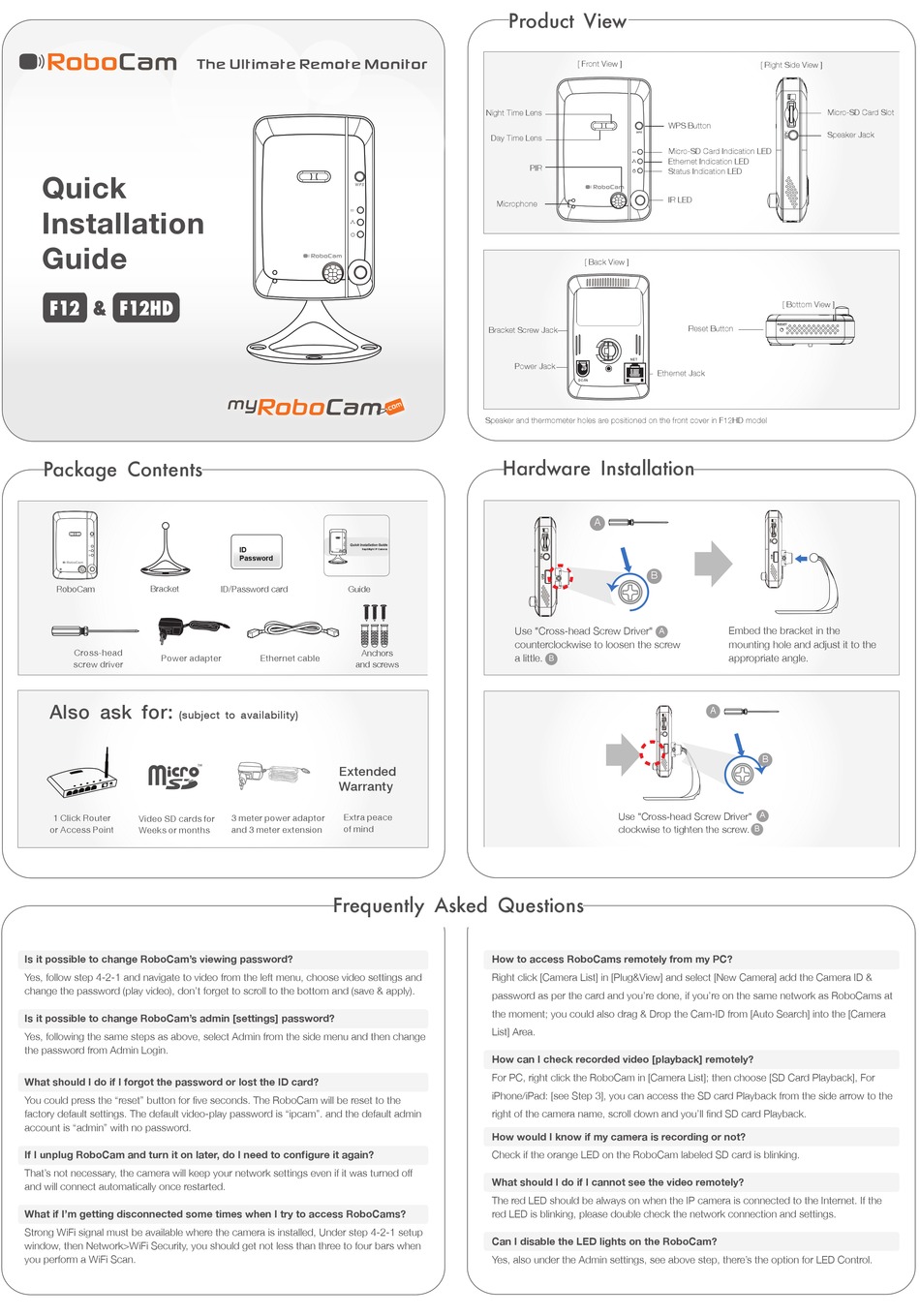

RoboCam F12 Quick Installation Manual

RoboCam RoboCam
The Ultimate Remote Monitor
Quick
Installation
Guide
F12 & F12HD
Package Contents
SD
RoboCam Bracket
Cross-head
Power adapter
screw driver
Also ask for:
(subject to availability)
1 Click Router
Video SD cards for
or Access Point
Weeks or months
Is it possible to change RoboCam's viewing password?
Yes, follow step 4-2-1 and navigate to video from the left menu, choose video settings and
change the password (play video), don't forget to scroll to the bottom and (save & apply).
Is it possible to change RoboCam's admin [settings] password?
Yes, following the same steps as above, select Admin from the side menu and then change
the password from Admin Login.
What should I do if I forgot the password or lost the ID card?
You could press the "reset" button for five seconds. The RoboCam will be reset to the
factory default settings. The default video-play password is "ipcam". and the default admin
account is "admin" with no password.
If I unplug RoboCam and turn it on later, do I need to configure it again?
That's not necessary, the camera will keep your network settings even if it was turned off
and will connect automatically once restarted.
What if I'm getting disconnected some times when I try to access RoboCams?
Strong WiFi signal must be available where the camera is installed, Under step 4-2-1 setup
window, then Network>WiFi Security, you should get not less than three to four bars when
you perform a WiFi Scan.
SD
RoboCam RoboCam
my my
SD Quick Installation Guide
ID
Day&Night IP Camera
Password
ID/Password card Guide
Anchors
Ethernet cable
and screws
Extended
Warranty
3 meter power adaptor Extra peace
and 3 meter extension of mind
Frequently Asked Questions

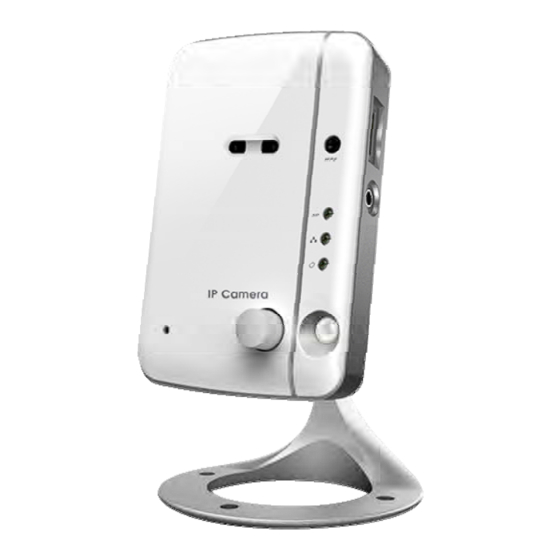

Product View
[ Front View ]
Night Time Lens
Day Time Lens
PIR
Microphone
[ Back View ]
Bracket Screw Jack
NET
NET
Power Jack
Ethernet Jack
DC/IN
Speaker and thermometer holes are positioned on the front cover in F12HD model
Hardware Installation
A
B
Use "Cross-head Screw Driver"
A
counterclockwise to loosen the screw
a little.
B
Use "Cross-head Screw Driver"
clockwise to tighten the screw.
How to access RoboCams remotely from my PC?
Right click [Camera List] in [Plug&View] and select [New Camera] add the Camera ID &
password as per the card and you're done, if you're on the same network as RoboCams at
the moment; you could also drag & Drop the Cam-ID from [Auto Search] into the [Camera
List] Area.
How can I check recorded video [playback] remotely?
For PC, right click the RoboCam in [Camera List]; then choose [SD Card Playback], For
iPhone/iPad: [see Step 3], you can access the SD card Playback from the side arrow to the
right of the camera name, scroll down and you'll find SD card Playback.
How would I know if my camera is recording or not?
Check if the orange LED on the RoboCam labeled SD card is blinking.
What should I do if I cannot see the video remotely?
The red LED should be always on when the IP camera is connected to the Internet. If the
red LED is blinking, please double check the network connection and settings.
Can I disable the LED lights on the RoboCam?
Yes, also under the Admin settings, see above step, there's the option for LED Control.
[ Right Side View ]
Micro-SD Card Slot
WPS Button
Speaker Jack
Micro-SD Card Indication LED
Ethernet Indication LED
Status Indication LED
IR LED
[ Bottom View ]
Reset Button RESET
Embed the bracket in the
mounting hole and adjust it to the
appropriate angle.
A
B
A
B
