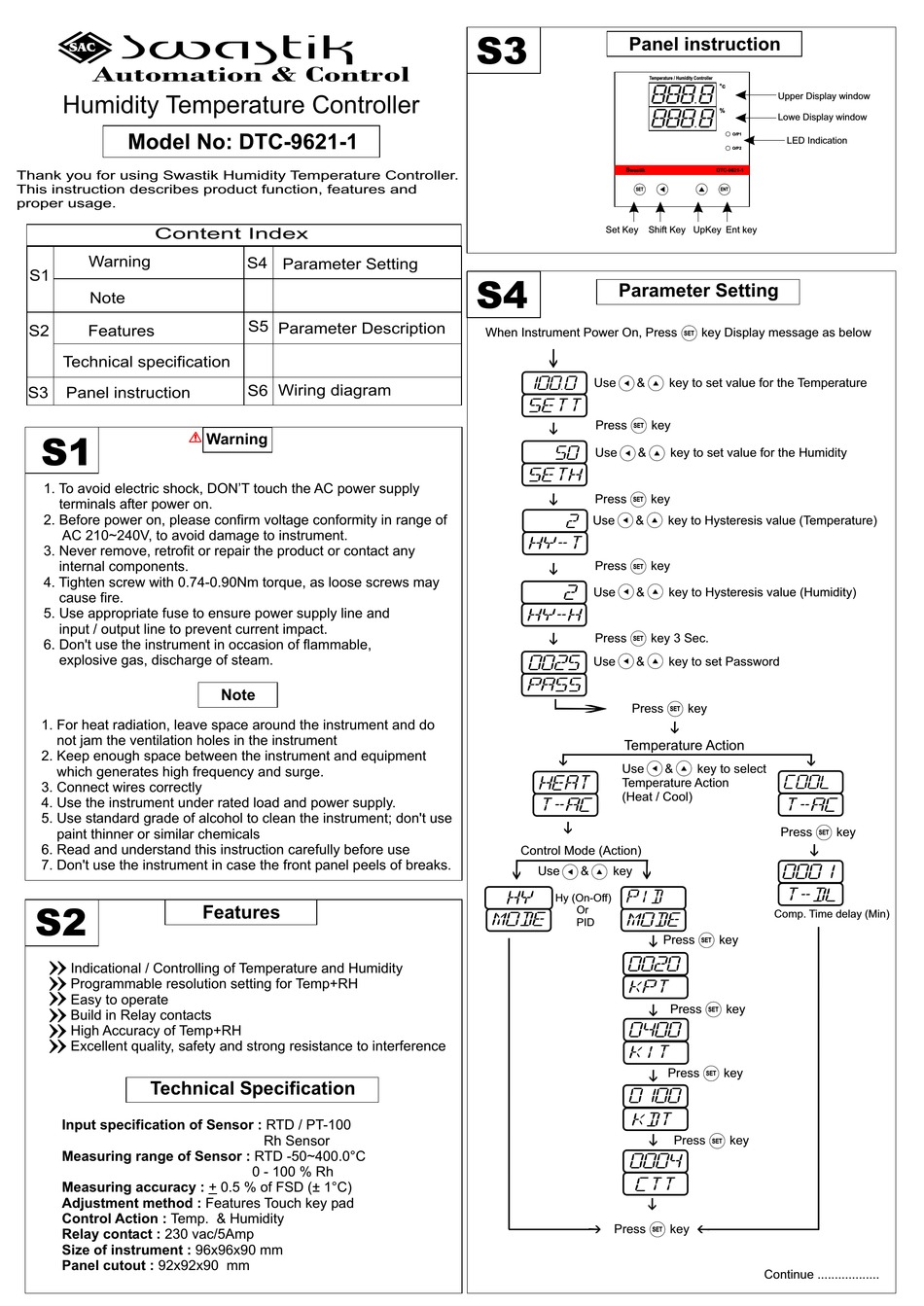

SWASTIK DTC-9621-1 Quick Start Manual

Automation & Control
Humidity Temperature Controller
Model No: DTC-9621-1
Thank you for using Swastik Humidity Temperature Controller.
This instruction describes product function, features and
proper usage.
Content Index

Warning

S1
Note
S2

Features

Technical specification

S3

Panel instruction

S1
1. To avoid electric shock, DON'T touch the AC power supply
terminals after power on.
2. Before power on, please confirm voltage conformity in range of
AC 210~240V, to avoid damage to instrument.
3. Never remove, retrofit or repair the product or contact any
internal components.
4. Tighten screw with 0.74-0.90Nm torque, as loose screws may
cause fire.
5. Use appropriate fuse to ensure power supply line and
input / output line to prevent current impact.
6. Don't use the instrument in occasion of flammable,
explosive gas, discharge of steam.
1. For heat radiation, leave space around the instrument and do
not jam the ventilation holes in the instrument
2. Keep enough space between the instrument and equipment
which generates high frequency and surge.
3. Connect wires correctly
4. Use the instrument under rated load and power supply.
5. Use standard grade of alcohol to clean the instrument; don't use
paint thinner or similar chemicals
6. Read and understand this instruction carefully before use
7. Don't use the instrument in case the front panel peels of breaks.
S2
Indicational / Controlling of Temperature and Humidity
Programmable resolution setting for Temp+RH
Easy to operate
Build in Relay contacts
High Accuracy of Temp+RH
Excellent quality, safety and strong resistance to interference
Technical Specification
Input specification of Sensor :
Measuring range of Sensor :
Measuring accuracy :
Adjustment method :
Control Action : Temp. & Humidity
Relay contact : 230 vac/5Amp
Size of instrument :
Panel cutout : 92x92x90 mm
S4 Parameter Setting
S5
Parameter Description
Wiring diagram
S6
Warning
! !
Note
Features
RTD / PT-100
Rh Sensor
RTD -50~400.0°C
0 - 100 % Rh
+ 0.5 % of FSD (± 1°C)
Features Touch key pad
96x96x90 mm
Panel instruction
S3
Temperature / Humidity Controller
888.8
888.8
S
wastik
SET
Set Key Shift Key UpKey Ent key
S4

Parameter Setting

When Instrument Power On, Press
100.0
Use &
SETT
Press
SET
50
Use &
SETH
Press
SET
2
Use &
HY-T
Press
SET
2
Use &
HY-H
Press
SET
0025
Use &
PASS
Press
Temperature Action
Use
HEAT
Temperature Action
(Heat / Cool)
T-AC
Control Mode (Action)
Use & key
HY PID
Hy (On-Off)
Or
Mode
Mode
PID
0020
KPT
0400
Kit
0100
Kdt
0004
CTT
Press
°c
Upper Display window
%
Lowe Display window
O/P1
LED Indication
O/P2
DTC-9621-1
ENT
key Display message as below
SET
key to set value for the Temperature
key
key to set value for the Humidity
key
key to Hysteresis value (Temperature)
key
key to Hysteresis value (Humidity)
key 3 Sec.
key to set Password
key
SET
& key to select
COOL
T-AC
Press
SET
0001
T-DL
Comp. Time delay (Min)
Press key
SET
Press key
SET
Press key
SET
Press key
SET
key
SET
Continue ..................
key
