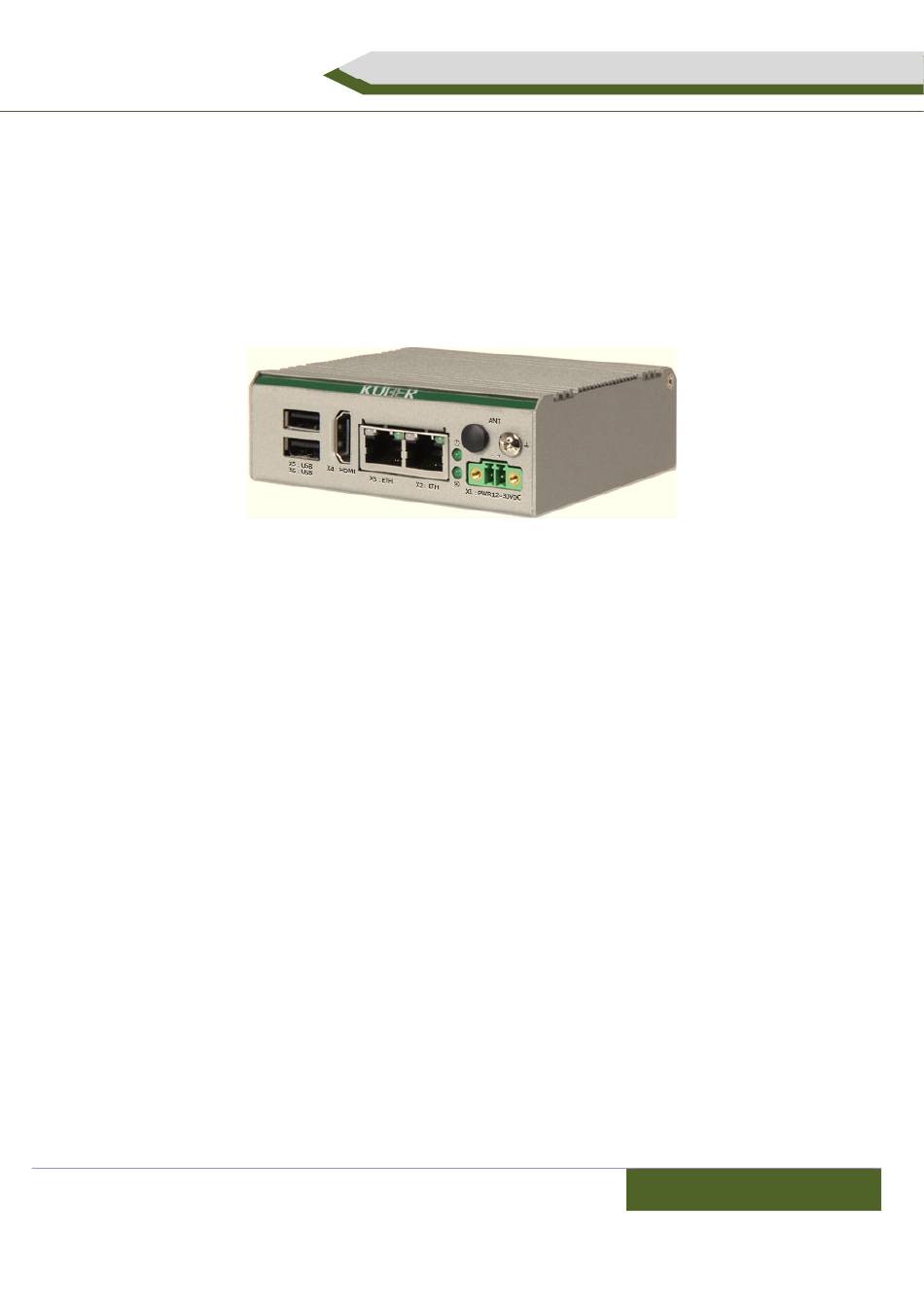

MITWELL KUBER-1000 Series User Manual

KUBER-1000 Series

User Manual

Version 1.3

2021/08/31

Table of Contents

Need help?

Do you have a question about the KUBER-1000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MiTWell KUBER-1000 Series

Page 2: Table Of Contents
5 INITIAL SETUP ....................18 5.1 Chassis Grounding ................ 18 5.2 Connecting Power ................ 18 5.3 External Antenna installation ............. 18 APPENDIX ......................20 Contact us ......................20 Copyright © MITWELL 2021 KUBER-1000 Series User Manual 2 ...
Page 3: Revision
Revision Date Description R1.0 20210125 - V1.0 first edition R1.1 20210514 - Update Hardware spec table Update Wall mount & DIN Rail information R1.2 20210621 - Update LAN LED indicator table R1.3 20210831 - Update LAN LED indicator table Copyright © MITWELL 2021 KUBER-1000 Series User Manual 3 ...
Page 4: Preface
MiTwell’s option and expense. For RMA and DOA goods, customers should follow the standard procedure and send back the goods. For detail please see the warranty policy by below link: http://rma.portwell.com.tw:10007/mitwellrma/Default.aspx Copyright © MITWELL 2021 KUBER-1000 Series User Manual 4 ...
Page 6: Introduction
50% performance by supporting out-of-order execution compared to the previous generation, Cortex-A53. The graphic (VideoCoreIV) boosts from clock speeds 400 MHz to 500MHz, supporting display output up to 4K at 30Hz. KUBER-1000 also has a well-thermal solution, operating a Thermal Design Power (TDP) below 10W and supports 12-30 VDC +/- 20% power consumption for demanding areas. The sufficient I/Os could well perform data collection and transition, edge computing or communication tasks in applications like industrial automation, intralogistics or smart retailers. KUBER-1000 is proved to be your best choice. Copyright © MITWELL 2021 KUBER-1000 Series User Manual 6 ...
Page 7: Safety Precautions
This symbol together with the NOTE signal word alerts the reader to a situation which may cause damage or malfunction to the device, hardware/software, or surrounding property. Here you will find additional information or detailed sources of information. Copyright © MITWELL 2021 KUBER-1000 Series User Manual 7 ...
Page 8: Hardware Specification
CE (EN55024, EN55032, EN 61000-6-1(2007) Certification FCC (CFR Title 47 Part15 Subpart B: 2018 Class A) Mechanical Degree of Protection IP30 Dimension (mm) 99mm (L) x 92mm (W) x 34 mm (D) Net Weight (Kg) 0.3 Kg Mounting Support DIN rail (Type Ω) and Wall mounting Cooling Fanless Copyright © MITWELL 2021 KUBER-1000 Series User Manual 8 ...
Page 9: Appearance

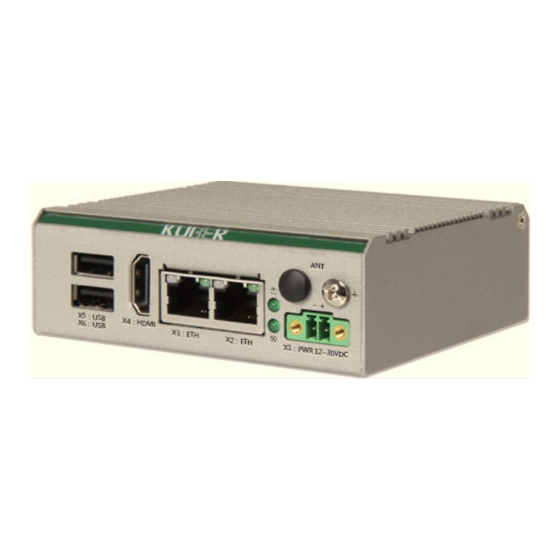

Interface with 2 x USB2.0, 1 x HDMI, 2 x GbE LAN, Power connectors 3.5 Interface 3.5.1 USB 3.0 KUBER-1000 provides two USB Type-A 2.0 to connect external device such as mouse, keyboard or external storage device. 3.5.2 HDMI The port support HDMI 2.0 with 3840×2160 @ 30 Hz resolution Copyright © MITWELL 2021 KUBER-1000 Series User Manual 9 ...
Page 10: Ethernet
X2: ETH Orange 1 Gbps 3.5.4 LED indicator Two LEDs are provided on the KUBER-1000. These LEDs provide operating information. Function* Status Description Power ON Solid Green Power Power Off Off Run Status Run Flash Green (GPIO) off Off *: Need to auto detection functionality while power applied Copyright © MITWELL 2021 KUBER-1000 Series User Manual 10 ...
Page 11: Power Terminal
5 kgf-cm.Torque the wire-retaining screws in the connector to 0.22Nm…0.25 Nm. Pin No. Description - 0 V DC + 12-30VDC 3.5.6 Micro-SD card slot Release the screw and disassemble the chassis of KUBER-1000, you can see the micro-SD card slot on the main board. you can plug the size of micro-SD which meet your requirement for the storage. Copyright © MITWELL 2021 KUBER-1000 Series User Manual 11 ...
Page 12: Antenna
MITWELL KUBER-1000 Series User Manual 3.5.7 Antenna KUBER-1000 can adept Wi-Fi antenna have better wireless network signal 3.6 Dimensions All dimensions shown in mm (millimeters) 3.6.1 One layer Dimension: 99mm (L) x 92mm (W) x 34 mm (D) Copyright © MITWELL 2021 KUBER-1000 Series User Manual 12 ...
Page 14: System Installation
1. See the dimensions and mark the locations of the holes on the mounting surface. 2. Use the correct anchor type for the mounting surface and securely attach the KUBER-1000 series IPC on the mounting surface, like metal rack. Ensure that the attaching hardware is in the small section of the keyholes. Removal 1. Remove power and disconnect cables to the IPC. 2. Loosen and remove the screws securing the IPC to the mounting surface. Copyright © MITWELL 2021 KUBER-1000 Series User Manual 14 ...
Page 15: Din-Rail Mount
Fasten the DIN-rail bracket by screws (M3 x 6L) on the KUBER-1000, suitable for Type Ω 35mm (W), 7.5mm(H) DIN-rail ( ). Install 1. Angle the KUBER-1000 IPC so the top edge of the mounting plate hangs on the top edge of the DIN rail. Copyright © MITWELL 2021 KUBER-1000 Series User Manual 15 ...
Page 16 MITWELL KUBER-1000 Series User Manual 2. Rotate the KUBER-1000 IPC down against the lower edge of the DIN rail. 3. Press in until the latch snaps closed. Remove 4. Press to un-secure the device on the rail. Copyright © MITWELL 2021 KUBER-1000 Series User Manual 16 ...
Page 18: Initial Setup
KUBER-1000 is often installed within an enclosure, it may be advisable to install the antenna on the exterior of the enclosure with appropriate length antenna cable rather than directly to the IPC. Copyright © MITWELL 2021 KUBER-1000 Series User Manual 18 ...
Page 20: Appendix
Should you have any suggestions or recommendations for improvement of the contents and layout of our manuals, please send your comments to: MiTwell, Inc. ADD: 9F, No. 242, Bo-Ai Street, Shulin Dist., New Taipei City 238, Taiwan (R.O.C.) TEL: +886 2 7739-5566 Email: info@MiTwell.com.tw Website: http:// www.MiTwell.com.tw MiTwell RMA Center ADD: No. 242, Bo-Ai Street, Shulin Dist., New Taipei City 238, Taiwan (R.O.C.) TEL: +886 2 7739-5566 Please follow RMA instruction by below link to send back the products for repairing or replacement. WEB: http://rma.portwell.com.tw:10007/mitwellrma/ Copyright © MITWELL 2021 KUBER-1000 Series User Manual 20 ...
