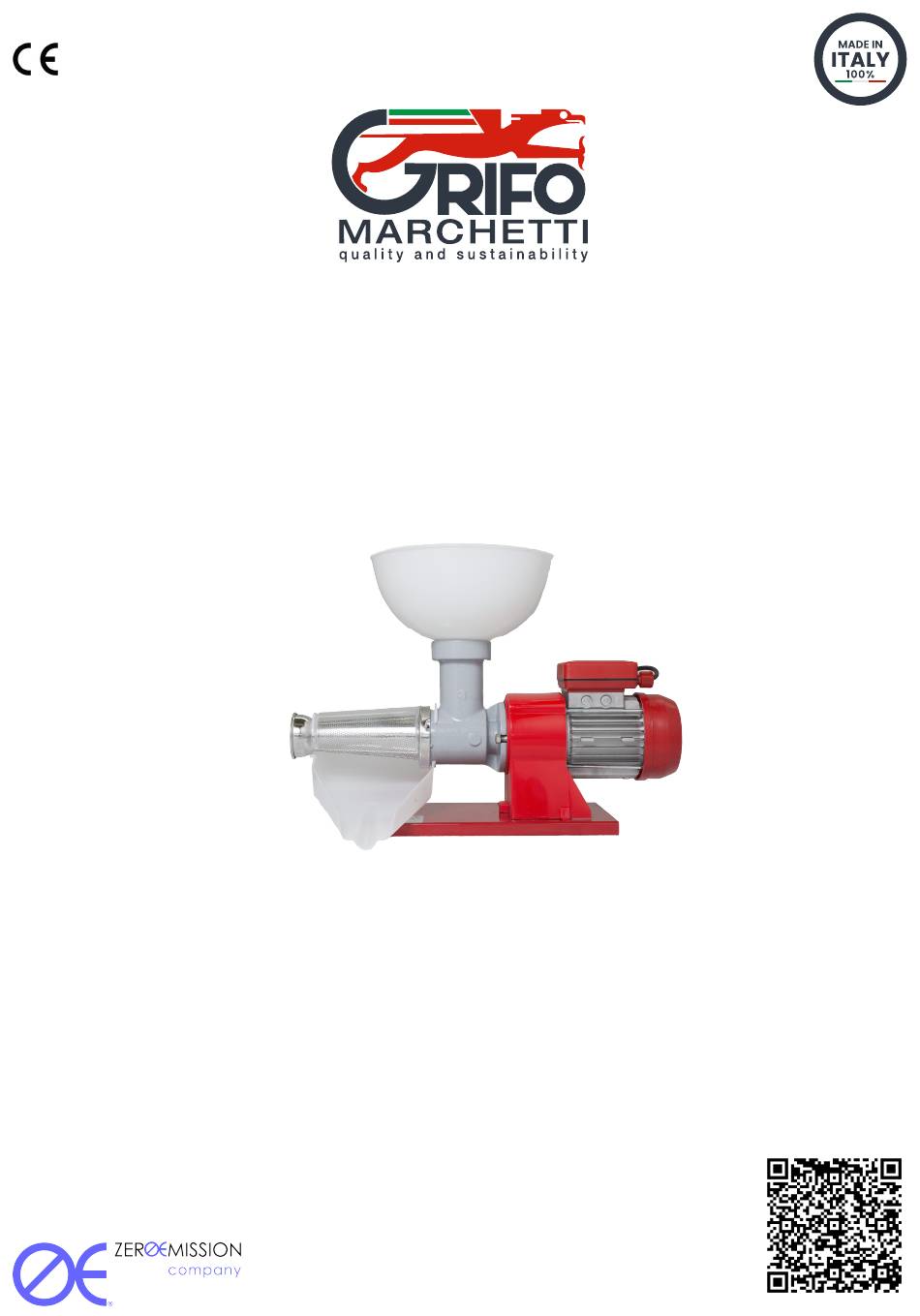

- Page 1 ELECTRIC TOMATO MACHINE Art. SP3EL/SP3ELI/SP5EL/SP5ELI 2022 - ENGLISH MANUAL OF USE, INSTRUCTION AND MAINTENANCE...
- Page 2 Dear Customer, We thank you for choosing a GRIFO product, whose brand has always been synonymous with functionality, robustness and reliability. We are pleased to make this manual available to you, which is designed to allow you to operate the machine in maximum safety and productivity.
-
Page 3: Table Of Contents
5.3 Demolition and subdivision of materials ............21 5.4 Replacement parts ................... 22 5.5 Fault finding ...................... 23 5.6 Interchangeable equipment and accessories ........... 24 Document Year Manuale SP3EL – SP3ELI – SP5EL – SP5ELI 2018 Page File name Revision 3 of 24 Manuale SP3EL –... -
Page 4: Ec Declaration Of Conformity
Identification and signature of the person authorized to draw up the declaration on behalf of the manufacturer: Rosa Busi Place and date of declaration: Piadena (CR), 02.01.2018 Document Year Manuale SP3EL – SP3ELI – SP5EL – SP5ELI 2018 Page File name Revision 4 of 24 Manuale SP3EL – SP3ELI – SP5EL – SP5ELI... -
Page 5: Introduction
1.1 Contents This manual contains a description of the technical characteristics and functioning of the ELECTRIC TOMATO MACHINE art. SP3EL, SP3ELI, SP5EL and SP5ELI, and instructions for installation, use and maintenance. The manufacturer reserves all intellectual and editorial rights relating to the technical publication, claiming all the properties, prohibiting the duplication and transfer to third parties without written consent. -
Page 6: Responsibility
1.4 Manual update The manual is an integral part of the ELECTRIC TOMATO MACHINE art. SP3EL, SP3ELI, SP5EL and SP5ELI. Any additions to the manual, which the manufacturer will send to users, must be kept together with the manual and will be part of it. -
Page 7: Warranty
The purchaser will only have the right to request the repair or replacement of the goods, with the exclusion of compensation for any damage. The repair or replacement of defective materials will take place at the GRIFO snc factory or at an authorized service center, where the returned materials must be shipped carriage free. -
Page 8: General Information On The Machine
2. GENERAL INFORMATION ON THE MACHINE 2.1 Intended use The GRIFO tomato squeezer is a machine for squeezing tomatoes by means of an auger. It is intended for home use. Any changes in the conditions of use of the machine, both in terms of... - Page 9 Sound pressure level (A) = 79 dB (A). Under special environmental conditions it may be higher than 79 dB A). In these cases, hearing protection is necessary. Document Year Manuale SP3EL – SP3ELI – SP5EL – SP5ELI 2018 Page File name Revision 9 of 24 Manuale SP3EL –...
-
Page 10: Safety And Accident Prevention
(rain, sun, etc. ..); unplug the appliance when not in use (do not leave the appliance unnecessarily inserted); Document Year Manuale SP3EL – SP3ELI – SP5EL – SP5ELI 2018 Page File name Revision 10 of 24 Manuale SP3EL –... - Page 11 Check that the moving parts are not blocked, that they can work properly and that there are no damaged parts. Check that all the tomato squeezer components are correctly assembled. Document Year Manuale SP3EL – SP3ELI – SP5EL – SP5ELI 2018 Page File name Revision 11 of 24 Manuale SP3EL –...
-
Page 12: Risks And Prevention Measures
Any tampering with parts of the machine, and in particular parts connected with safety, relieves the manufacturer of any civil or criminal liability in the event of accidents. Document Year Manuale SP3EL – SP3ELI – SP5EL – SP5ELI 2018 Page File name Revision 12 of 24 Manuale SP3EL –... -
Page 13: Installation
Check the size of the machine, leaving a distance of at least 70 cm from any type of fixed obstacle (walls, columns, walkways) to allow the operator to move unimpeded. Document Year Manuale SP3EL – SP3ELI – SP5EL – SP5ELI 2018 Page File name Revision 13 of 24 Manuale SP3EL –... - Page 14 (Fig. Remove the filter and the screw (Fig. 7) Separate the filter from the continuous screw (Fig.8) Document Year Manuale SP3EL – SP3ELI – SP5EL – SP5ELI 2018 Page File name Revision 14 of 24 Manuale SP3EL –...
- Page 15 PERIODIC CLEANING Before and after each use, it is necessary to proceed with a cleaning that removes the residues of the work or the accumulated dirt. Document Year Manuale SP3EL – SP3ELI – SP5EL – SP5ELI 2018 Page File name Revision 15 of 24 Manuale SP3EL –...
-
Page 16: Transportation, Unloading And Installation
Verify that the supply matches the order specifications. Complaints of the supplied goods must arrive, by e-mail, to the company GRIFO Macchine Enologiche S.n.c. within 15 days of receipt of the goods. -
Page 17: Installation And Assembly
Insert the filter on the continuous screw (Fig.8); Document Year Manuale SP3EL – SP3ELI – SP5EL – SP5ELI 2018 Page File name Revision 17 of 24 Manuale SP3EL –... - Page 18 In this way the filter will be blocked to the body; Assemble the chute by hooking it to the body and the filter (Fig.13, 14, 15) Screw the upper funnel (Fig.17) Document Year Manuale SP3EL – SP3ELI – SP5EL – SP5ELI 2018 Page File name Revision 18 of 24 Manuale SP3EL –...
-
Page 19: Use
5. USE 5.1 Preliminary operations INTENDED USE: GRIFO squeezers are a tomato squeezing machine by means of a cochlea. It is intended for domestic use. Do not make the tomato squeezer run empty. By turning dry in the filter, the coating of the continuous screw could be damaged. - Page 20 use the tomato squeezer in areas where there is a risk of explosion and / or fire; use the electric motor unit to operate other interchangeable equipment and accessories other than those provided for by GRIFO snc, according to the instructions provided.
-
Page 21: Maintenance And Repair
5.2 Maintenance and repair The GRIFO tomato squeezer does not require any special maintenance. In case of, tastes, breaks etc. contact GRIFO snc or the authorized service center. The only operations allowed to the operator are those described in the manual. -
Page 22: Replacement Parts
5.4 Replacement parts All spare parts can be purchased from GRIFO Macchine Enologiche S.n.c. or at an authorized dealer. Unauthorized use of spare parts other than those supplied by the Grifo Macchine Enologica or by an authorized retailer entails the loss of the guarantee and of the machine's Declaration of Conformity. -
Page 23: Fault Finding
2. There are oil seepage on the continuous screw Note: The product contaminated with oil must be discarded Document Year Manuale SP3EL – SP3ELI – SP5EL – SP5ELI 2018 Page File name Revision 23 of 24 Manuale SP3EL – SP3ELI – SP5EL – SP5ELI... -
Page 24: Interchangeable Equipment And Accessories
5.6 Interchangeable equipment and accessories The squeezers can be equipped with equipment to also perform the function of mincers. The grinder originail GRIFO snc are the only ones designed and prepared to be used on the electric motor of the squeezer. - Page 25 Grifo Marchetti Srl Via Mantova 1, I-26034 Piadena Drizzona (CR) Italy Phone : +39 0375 98601 Fax : +39 0375980879 E-mail : info@grifomarchetti.com Website : www.grifomarchetti.com...
