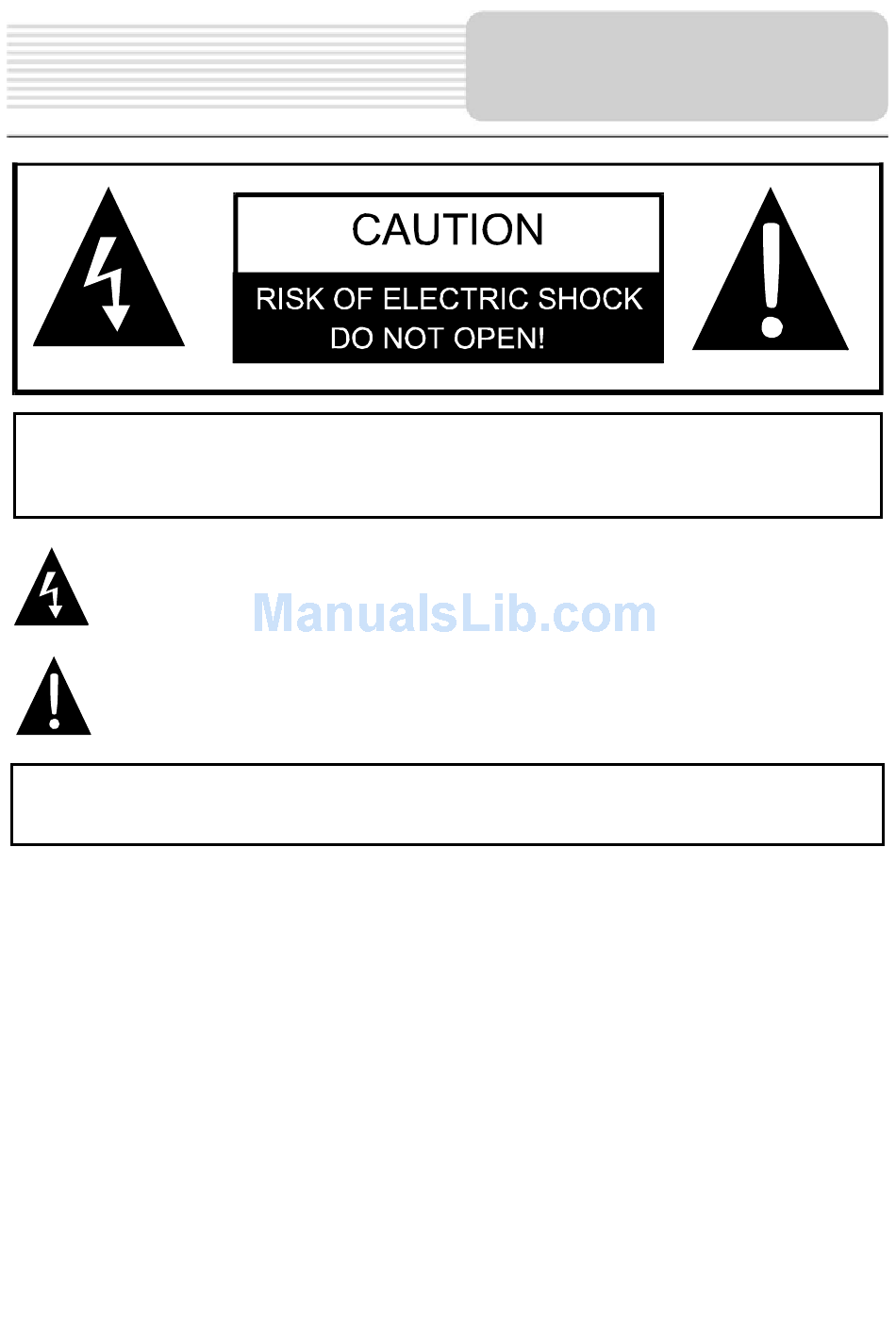

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric to persons.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OF MOISTURE.
POWER SUPPLY:
Connect the supplied adapter to the side of the unit in the slot marked "DC 5V IN". Plug
the two-prong end of the power cord to an AC100-240V outlet. If you have difficulty
inserting the plug, turn it over and reinsert it. If the unit will not the used for a long time,
disconnect the plug from the outlet.
NOTE:
Before plugging the power cord into an AC outlet, make sure that all the connections
have been made.
CAUTION: These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so.
Refer to service manual for servicing instructions. To reduce the risk of fire or electric
shock, do not expose this apparatus to rain or moisture.
Important Safety
Instructions
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nextar X3B
Summary of Contents for Nextar X3B
-
Page 1: Important Safety Instructions
， CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric to persons. - Page 2 Important Safety Instructions NOTES Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a damp cloth. Do not block any of the ventilation openings. manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 3 Important Safety Instructions Warning Failure to avoid the following potentially hazardous situations may result in injury or property damage. The unit is designed to provide you with route suggestions. It does not reflect road closures or road conditions, traffic congestion, weather conditions, or other factors that may affect safety or timing while driving.
-
Page 4: Accessories
Accessories Accessories List ITEM NOTE Accessories and their parts numbers are subject to modification without prior notice due to improvements. NAME Owner’s Manual Power Adaptor Car Adaptor Mounting Bracket USB Cable Mounting cradle Touch Pen Dashboard mount disk Pouch... -
Page 5: Table Of Contents
Important Safety Instructions Accessories View of Main Unit System Connections Power Supply Preparation General Setup Playing Music Photo Viewer Blue Tooth Function Use of the Mount Accessories Troubleshooting Specifications Contents …………………………………..……..…..1 ……………………………….………..…...4 ……………………………….…….….…...6 ……………………………….…….….…...8 ……………………………….……….…..10 …………………………….………..…….12 ……………………………….…….……..16 …………………………….……….……..19 ……………………………….…….……..21 …………………………….………….…..29 ……………………………………………30 ……………………………………………32... -
Page 6: View Of Main Unit
View of Main Unit Front and Side Panel LCD Screen Microphone Hole Aim at the hole to speak when calling. POWER button Press for a longer time to enter or exit the standby mode. Card Port Insert the SD card into the port. Headphone Jack Used to connect headphones for private listening. -
Page 7: Bottom Panel
Bottom Panel USB Port Used to connect to the USB device. Rear panel RESET button Press to reset the system. GPS Antenna Jack Used to connect the external GPS antenna. View of Main Unit... -
Page 8: System Connections
Connecting to External GPS Antenna The unit is designed with GPS antenna jack which allows you to connect external GPS antenna to receive GPS signals in the car when the signal is bad. One end is connected to the jack of the unit and the other one to be placed on the roof of the car and make it to be sucked by the car. -
Page 9: Connecting To Headphones
Connecting to External USB Device The unit is designed with a USB port which allows you to connect the unit to PC for map updating. See the below figure for details: You should install the driver into your PC first. Turn on the unit. -
Page 10: Power Supply Preparation
Do not operate the unit while driving a vehicle. Place the unit in a proper position for viewing. Disconnect the unit from the Car Adaptor when starting the vehicle. Your portable GPS player comes with a built-in rechargeable battery. Please see details in the following segment. -
Page 11: Charging The Battery Pack
About Rechargeable Battery Your portable GPS player comes with a built-in rechargeable battery. Charge the battery fully before initial use. Charging time is normally about 3.5 hours. A fully charged battery delivers about 3 hours of use. Working conditions and precautions for the rechargeable battery New batteries should be fully charged before initial use. -
Page 12: General Setup
General Setup General Setup When turn on the unit, the screen will display the main menu later as shown below: In the main menu, there are five items for selecting. Touch the corresponding item to enter. to enter navigation mode; tap enter the MP3 Player;... - Page 13 Language in the settings menu to enter Language settings menu for language selecting, as shown below: Tap the buttons to select language. Then tap Backlight in the settings menu to enter Backlight settings menu for backlight adjusting, as shown below: Tap the first group Tap the second group time (--/5/10/30/60/120).
- Page 14 General Setup Date & Time in the settings menu to enter Date & Time settings menu for changing to the current time zone, as shown below: Tap the buttons to select the proper Time Zone. Tap the to change the corresponding date and tap the corresponding time.
- Page 15 Calibrate in the settings menu to calibrate, the screen will display as below: This item is used to calibrate the sensitivity of the touch screen. Tap the center of “+” as it moves around the screen. If you touch the center of “+” every time, it will disappear and the screen displays as below: Tap the screen within 20 seconds to save the new calibration settings and return to the settings menu.
-
Page 16: Playing Music
Playing Music The unit is designed with SD card slot and supports MP3 and WMA format files playback. You can insert the SD card with MP3 or WMA files in the unit for music enjoyment. Note: Do not store MP3 or WWA format files in the Flash storage, for the flash storage is used to store map data, any attempt to open the Flash storage may result in the map data missing and lost. -
Page 17: Help Window
Playing Music Double tap the MMC_Storage icon to open the folder; the songs in the folder will be displayed on the screen. Select the songs that you want to add into the play list and tap to confirm. The songs selected will be added into the play list, as shown below: In the play list, double tap the songs to start playback. - Page 18 Playing Music During playback, tap During playback, tap During playback, tap resume playback. During playback, tap During playback, tap During playback, tap During playback, tap During playback, tap During playback, tap During playback, tap During playback, tap During playback, tap In the menu, tap button to open the play list menu.
-
Page 19: Photo Viewer
Photo Viewer The unit is designed with SD card slot and supports JPEG format files playback. You can insert the SD card with JPEG files in the unit for picture view. Note: Do not store JPEG format files in the Flash storage, for the flash storage is used to store map data, any attempt to open the Flash storage may result in the map data missing and lost. - Page 20 Photo Viewer In the folders menu, tap to move the folders list up or down; tap to return to the previous folders menu. Tap to play the selected picture or to enter the selected folder; you can also realize these functions by double tapping the item you want to play or enter.
-
Page 21: Bluetooth Manager
Bluetooth Function This unit is designed with bluetooth function. You can use it to realize the hand free function for a bluetooth hand phone. In the main menu, tap to enter the bluetooth menu, as shown below. In the Bluetooth menu, tap the button to return to the main menu. -
Page 22: Bluetooth Function
Bluetooth Function Note: Before searching, make sure the bluetooth function of hand phone is turned In the process of searching, if necessary, tap button to stop searching, as shown below. In the menu, tap button to search available bluetooth device again; tap the button to delete the selected bluetooth device. - Page 23 Bluetooth Function In the menu, the icon shows the unit and the selected hand phone have been paired off successfully. If necessary, tap button to break the bond. 3. Activate the BT profile After having paired off successfully, tap button in the Bluetooth Manager menu to search profiles of the hand phone, and the screen displays as below: In the menu, tap button to activate the selected profile, as shown below:...
- Page 24 Bluetooth Function You can also use the Shortcut command to display recent activated profiles and make a recent profile active or inactive conveniently. In the Bluetooth Manager menu, tap the Shortcut command and the screen will display as below: In the menu, tap toggle button to make the selected connection inactive or active;...
- Page 25 Bluetooth Function In the menu, tap the yellow square to select or cancel these commands; tap button to save your setting; tap button to cancel it. Current Active Profiles button in the Bluetooth Manager menu to enter Active Connection menu that displays the current active profiles, as shown below: In the Active Connection menu, tap button to make the selected BT profiles...
-
Page 26: Phone Book
Bluetooth Function Use the keyboard to enter a phone number, and then tap screen will show as below: In the Talking menu, tap to turn off the speaker; tap tooth main menu; tap switch to talking in the unit. icon, then a keyboard appears, use it to enter other numbers if necessary, for example: ext.. - Page 27 Bluetooth Function ▲,▼ In the phone book, tap buttons to move up or down the list of phone number; tap button to call the selected number directly. Tap button to delete the selected phone numbers; tap button to return to the previous menu. button to add a number to the phone book, the screen will show as below.
-
Page 28: Call Record
Bluetooth Function Call Record In the Bluetooth menu, tap button to display recent call notes, as shown below. In the menu, tap button to display recent received calls; tap button to display recent dialed numbers; tap the button to display recent missed calls. button to delete the selected note;... -
Page 29: Use Of The Mount Accessories
When using the unit in vehicle, you can use the supplied mount accessories (mount bracket and mount cradle) to mount the unit in the vehicle. Take the following steps to operate: See Fig. 1. According to the arrow to slide the mount cradle to fix it to the mount bracket. -
Page 30: Troubleshooting
Turn up the volume or turn on the sound output. Adjust the brightness of the LCD. Make sure to use the unit out of room; if in the vehicle, you can use the external GPS antenna to solve this problem. - Page 31 PROBLEM The unit can receive signals now but can’t then or signals received are not stable. Other possibilities: Static or other external interference may cause the unit function abnormally. In order to recover normal status, please unplug the power supply cord and then plug it into the outlet again to reset the unit.
-
Page 32: Specifications
Specifications TFT screen size 3.5 inches Frequency Response 20Hz～20kHz ≥65dB Audio Signal-to-noise Rate ≤－20dB (1kHz) Audio distortion+noise ≥70dB (1kHz) Channel Separation ≥80dB (1kHz) Dynamic Range AC 100-240V ～ 50/60Hz Power DC 5V Power Consumption < 8W Dimensions 100mmX76mmX22mm (L*W*D) Weight About 0.25kg DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE...
