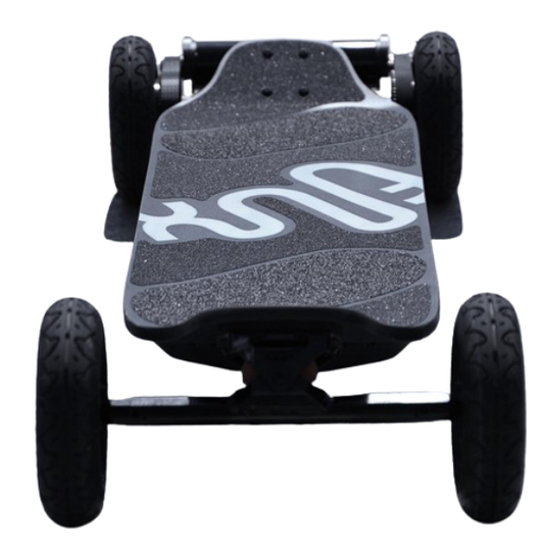

Summary of Contents for Flux motion AT2

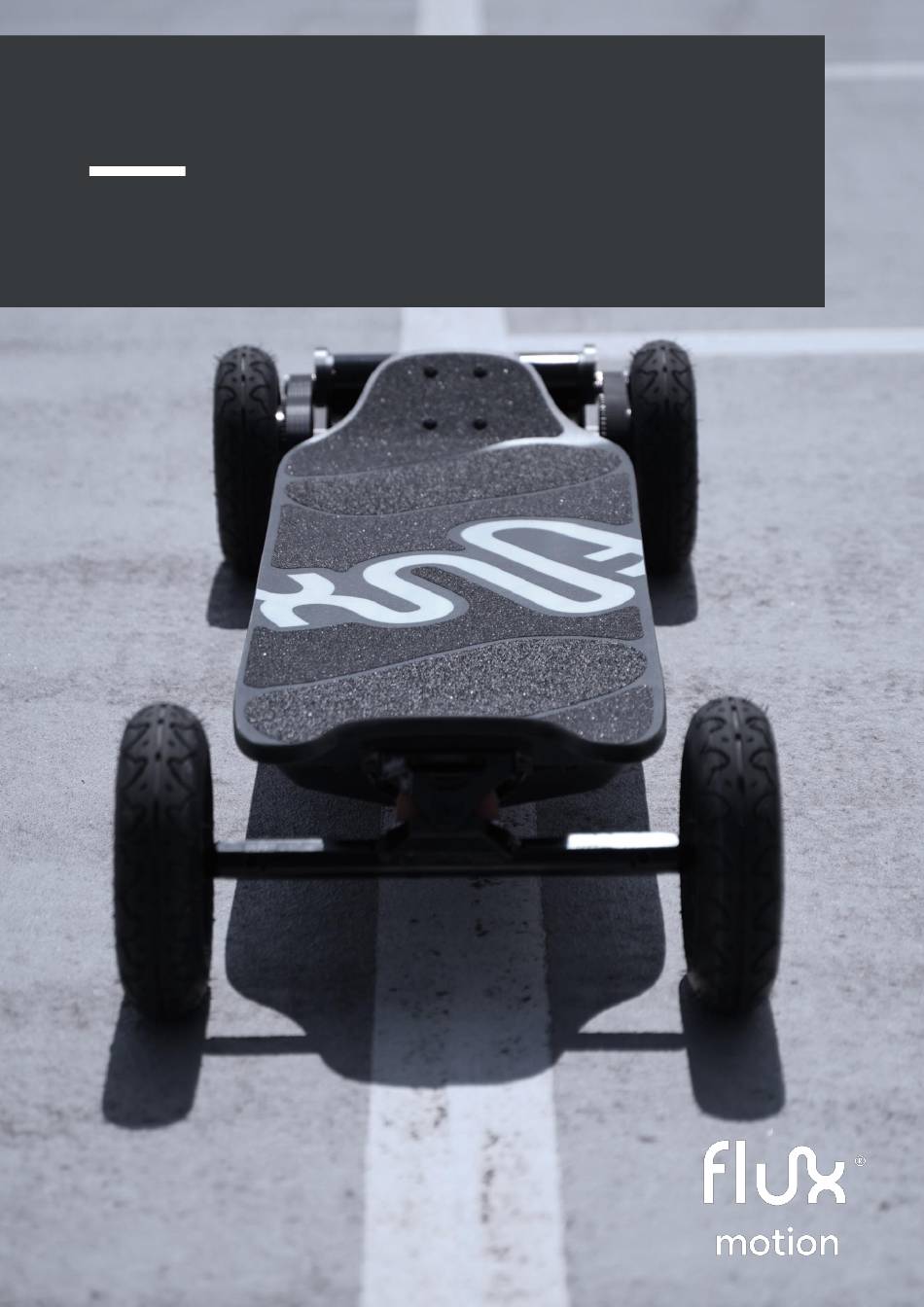

- Page 1 MANUAL Flux AT2 V1.0...
-
Page 2: Table Of Contents
Table of Contents Intro Cool, you’re taking some time to read the manual! We tried to write down all you need to know about your board in this manual. Have fun and ride safe! You didn’t find an answer for your question? We’re happy to help you! You can contact us info@fluxmotion.eu Or check our instruction... -
Page 3: Warnings & Safety
01 Warnings & Safety DO NOT RIDE YOUR BOARD WITHOUT READING THIS MESSAGE The product you bought is not a toy! It is forbidden to be ridden by riders bellow 18 years old. Your board can lose power and brakes at any moment. Electronics may fail any time. -
Page 4: Specifications
02 Specifications TECHNICAL • Motor’s: 6374 Brushless DC, Rated max 3500W, 170kv • ESC: FocBox Unity or BKB Xenith • Batter pack: 12s11p Li-ion 38,5Ah 1500Wh • Charger: 50.4V, 10A charger, input: 120-240VAC, 50/60Hz • Remote: Flipsky VX1, rebranded • BMS: LLT 12s smart BMS PERFORMANCE •... -
Page 5: Board Overview
03 Board Overview 8” pneumatic wheel Front light output Battery enclosure Heatsink Power switch Charge port Motor wire exit Rear light output 68T wheel pulley 6374 BLDC motor 15T motor pulley Adjust the bushing tension with the 2 setscrews in the bottom of the hanger www.fluxmotion.eu... -
Page 6: Powering Your Board On-Off
04 Powering your board on-off POWER ON: Shortly press the power switch, once the board is turned on the switch’s led will light up. POWER OFF: Press the power switch for 2 seconds, once the board is turned off the led goes out. -
Page 7: Using The Remote
06 Using the remote POWER MODE INDICATION Press the power mode button to switch between different power modes. • Red: 100% power Power mode does not affect • Yellow: 80% power braking power • Green: 60% power BOARD BATTERY INDICATION The number of LED’s represent the battery level. -
Page 8: Battery
07 Battery CHARGING THE BOARD ’S BATTERY • Plug your charger first in the wall socket • Plug your charger in the charge port of your board • A full charger can take up to 4 hours Always charge your board under sight and never at night! Only use the charger that is delivered with the board. - Page 9 CHANGING TIRES 1. (!) Deflate the old tire 2. Loosen the 5 bolts that hold the hub together 3. Open the hub and take the tire off 4. Install the new tire and tighten the bolts 5. Inflate the tires up to the recommended pressure (see tire) CHANGING SHOCKBLOCKS 1.
- Page 10 ESC PARAMETERS Warranty is voided when changing the default parameters of your motorcontroller. Setting faulty parameters can permanently destroy your battery, motorcontroller or motors! Contact support before changing parameters. Parameters: • Voltage cutoff start • Voltage cutoff end: • Battery current max: 80A (so 40A battery current per motor!) •...
-
Page 11: Support And Warranty
MOTOR WIRE ORDER blue yellow blue yellow sensor Rear light output sensor 09 Support and warranty This board is covered by a two-year legal warranty according to European legislation for defects caused by manufacturing errors. Warranty does not cover misuse, neglect, accidents or perishable goods as belts, bearings, bushings and wheels. -
Page 12: Disclaimer And Legal
10 Disclaimer and legal The product you bought is inherent dangerous, we’re not responsible for any damaged caused by our products. Prior to using any of our products, we highly recommend that you research your local regulations and country specific laws. Ultimately, you are responsible for complying with all applicable laws and regulations and FluxMotion waives all liability relating to your use of our products.
