Våtzon 1
SILICONE
SILICONE
225 cm
Zone 0 - IPX7 + 12V (SELV)
Zone 1 - IPX5 + RCD
Zone 2 - IPX4
Outside zone - IPX1
4 (16)
Våtzon 1
SILICONE
SILICONE
SILICONE
SILICONE
(a)
60 cm
2
1
2
0
2
60 cm

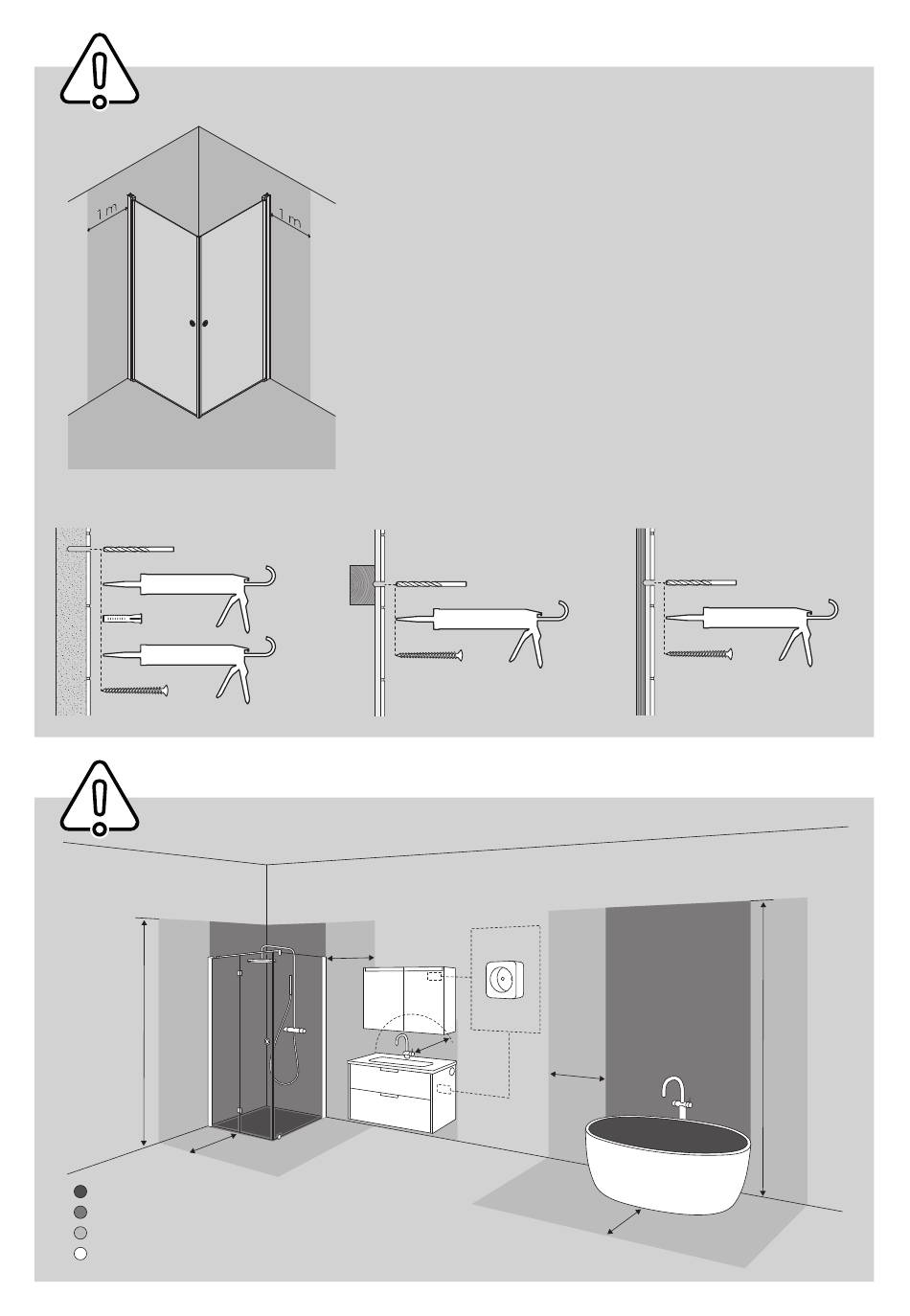

SE Skruvinfästningar i våtzon 1 ska göras i betong eller annan
massiv konstruktion (a), träreglar, träkortlingar (b) eller i
konstruktion som är provad och godkänd för infästning,
till exempel skivkonstruktion (c). Se exempel på godkända
konstruktioner på säkervatten.se.
Alla infästningar i våtzon 1 och 2 ska tätas. Material för tätning ska
fästa mot underlaget och vara vattenbeständigt, mögelresistent
och åldersbeständigt.
EN Screw fastenings should be made in concrete or other solid
structure (a), wooden studs, wooden noggings (b) or in structures
that have been tested and approved for fastenings, for example
a sheet construction (c). Requirements for sealing apply in wet
zones 1 and 2. See examples of construction at säkervatten.se.
Sealing materials must be fi xed to the underlying layer and must
be waterproof, mould-resistant and age-resistant.
NO Se lokale regler og restriksjoner
DK Se lokale regler og restriktioner
FI Tutustu paikallisiin sääntöihin ja rajoitteisiin
SILICONE
SILICONE
SILICONE
230 W
IP 21
r=60 cm
SILICONE
SILICONE
(b)
2
1
60 cm
0
2
60 cm
SILICONE
(c)
2
225 cm
