PIONEER
Product name: Hill Slide STS120
Catalogue number: 10820
Dimensions: 298x100 cm
Total height: 231 cm
Safety zone: 403x352 cm
Platform height: 15 cm
Critical Falling Height: 15 cm
Requires falling surface: YES
Spare parts available: YES
Acc. to EN 1176: YES
Age level: 3+ years
The hill must reflect the shape of the slide.
The slide must be parallel to the hill:
it must either lay flat on the slope
or it can be elevated above the ground,
but the space between should be 30-40mm.
The space between the slide and the hill
must be the same through its full length.
It can not be narrowed downhill.
298 cm
403 cm

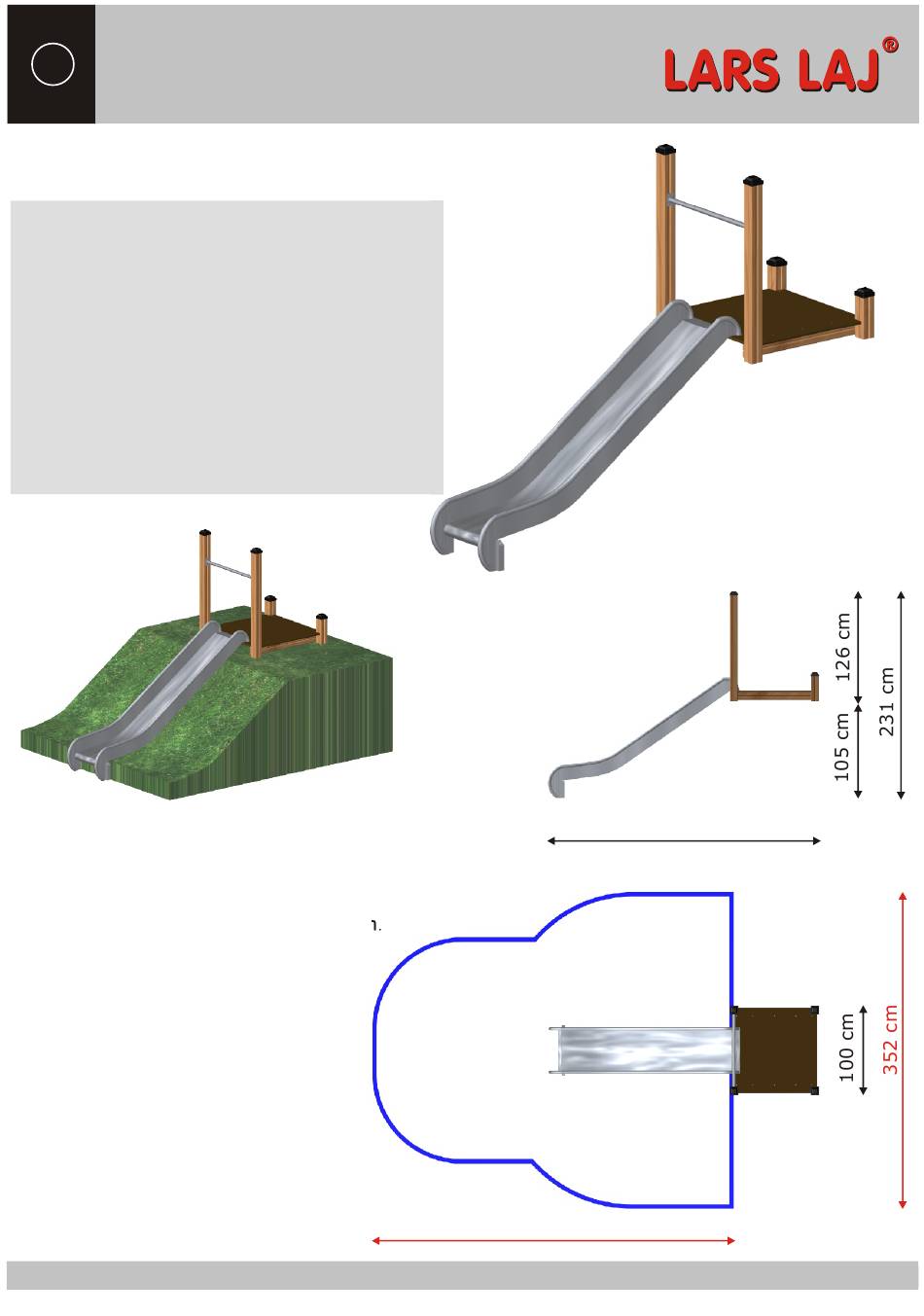

Side and top view with safety zone in scale 1:50
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LARS LAJ PIONEER 10820
Summary of Contents for LARS LAJ PIONEER 10820
- Page 1 10820 PIONEER Product name: Hill Slide STS120 Catalogue number: 10820 Dimensions: 298x100 cm Total height: 231 cm Safety zone: 403x352 cm Platform height: 15 cm Critical Falling Height: 15 cm Requires falling surface: YES Spare parts available: YES Acc. to EN 1176: YES Age level: 3+ years 298 cm The hill must reflect the shape of the slide.
- Page 2 10820 Product logbook PRODUCT DATA COMPANY DATA Product name: Hill Slide STS120 Name: Catalogue No.: 10820 Address: Product type: PIONEER Zip code/city: Place: Critical Falling Height: 15 Phone: Dimensions: 298x100 Fax: Safety Zone: 403x352 Email: Age Level: years Product Photo/Picture OWNERS DATA Name: Contact:...
- Page 3 10820 Product main dimensions PIONEER The hill must reflect the shape of the slide. The slide must be parallel to the hill: it must either lay flat on the slope or it can be elevated above the ground, but the space between should be 30-40mm.
- Page 4 10820 Installation manual SURFACE SAND, GRAVEL, BARK Play area surface concrete concrete ca. 61cm ca. 61cm SOIL SOIL GROUND concrete ca. 61cm SOIL...
