2.4GHz Self-powered Wireless Doorbell
D/N: WAS-2271EN
Introduction
Self-powered wireless doorbells use radio transmission and which provide the doorbell power
supply using a self-powered architecture, without requiring wiring and a battery power source. Self-
powered wireless doorbells include two parts, a transmitter to send a doorbell signal and a
transponder to receive the signal and then provide a response to generate a doorbell sound.
For such applications, Holtek has a 2.4GHz self-powered wireless doorbell solution. Here the
doorbell uses a self-powered architecture combined with a 2.4GHz transmitter-only device, the
BC5161. The transponder uses a 2.4GHz receiver module, the BM5602-60-1, and a microcontroller
with an integrated voice function, the HT66FV140.
Applications
Wireless doorbells, wireless ordering bells, wireless switches.
WAS-2271EN V1.00
2.4GHz Self-powered Wireless Doorbell

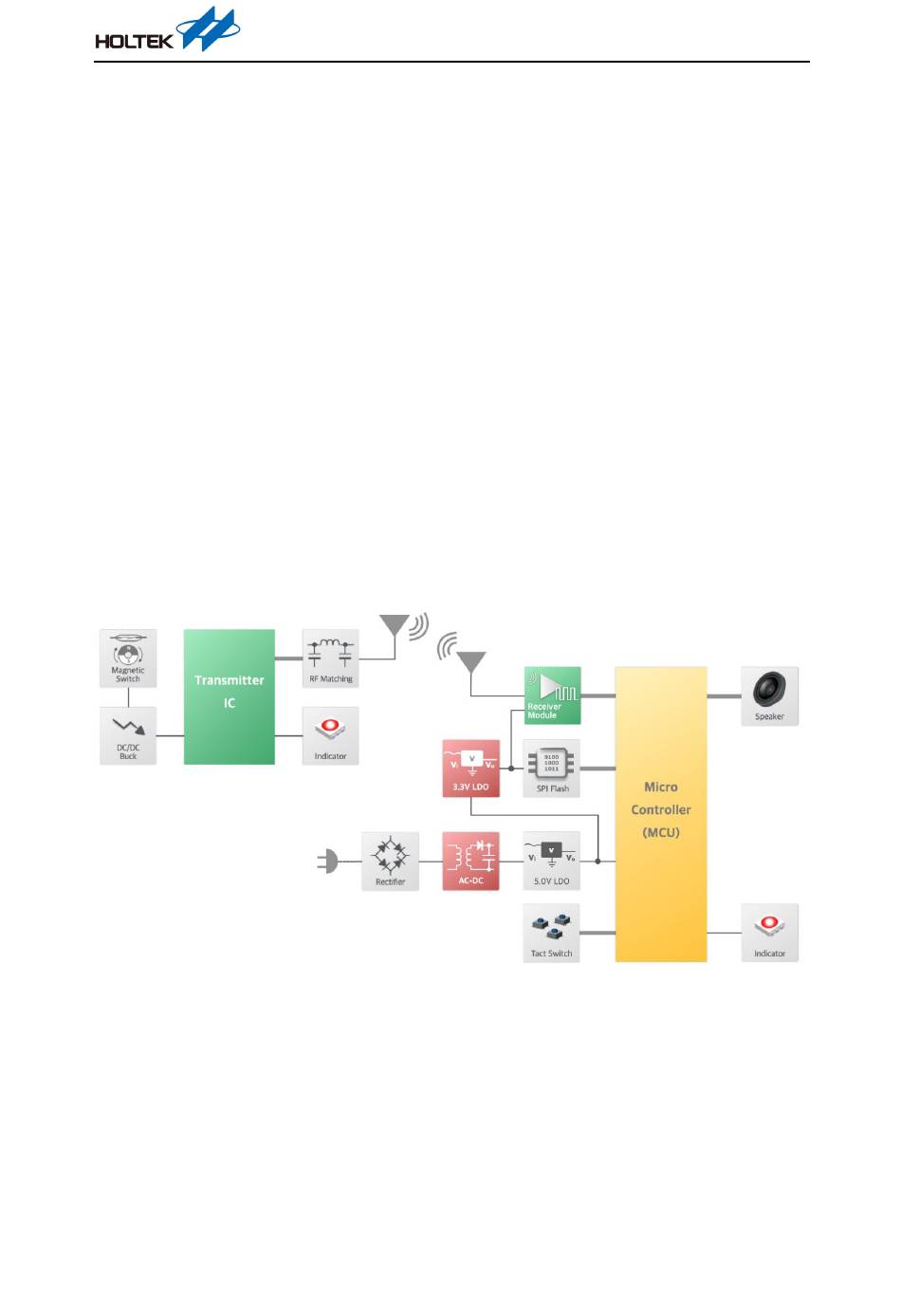

Figure 1. System Block Diagram
1 / 12
December 12, 2022
