Summary of Contents for Förster-Technik MaxiFlex100

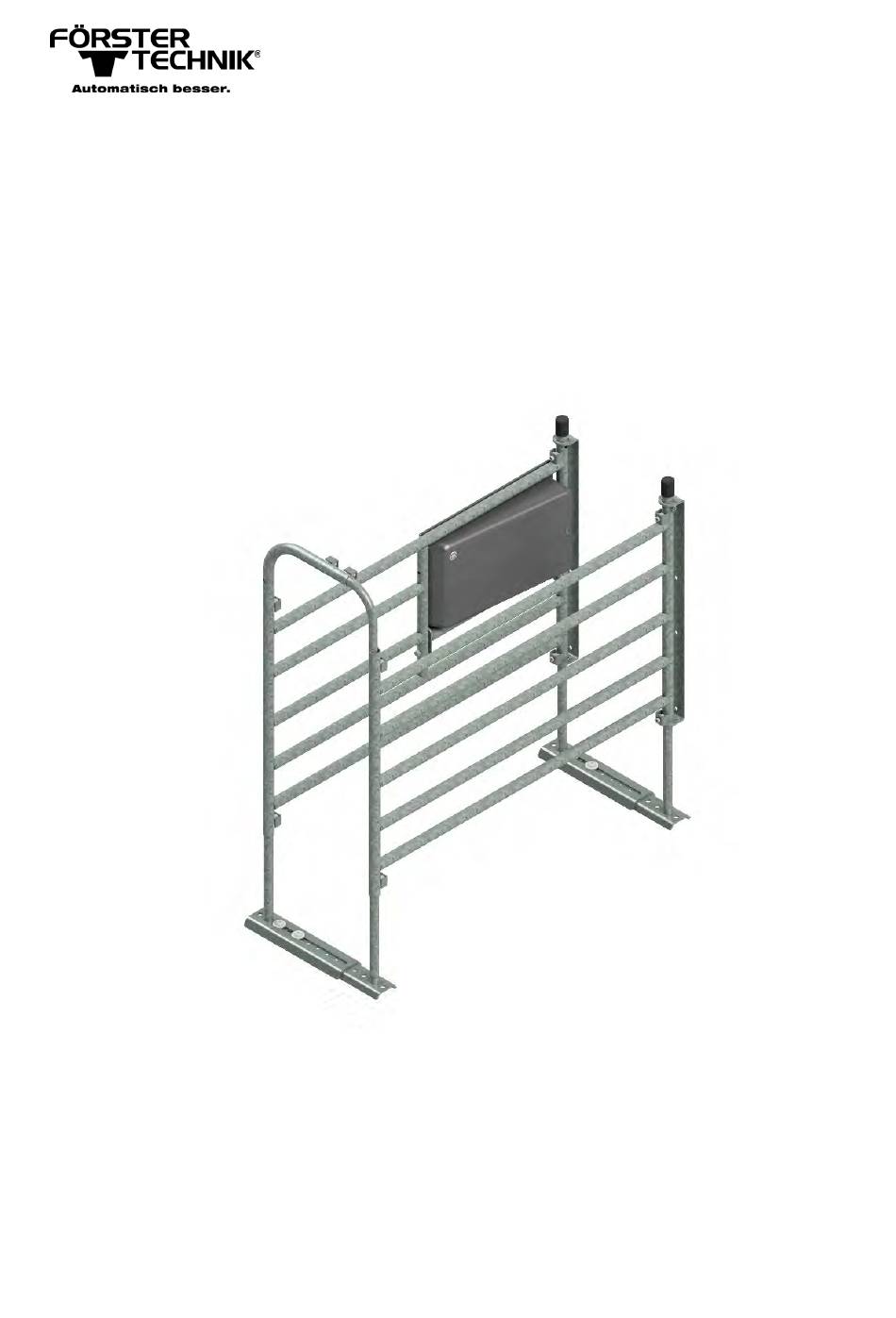

- Page 1 December 15th 2017 Installation instructions MaxiFlex100 stall partition S57.1e...
- Page 2 Introduction 1. Introduction These installation instructions put you in the position to safely install the MaxiFlex100 stall par- tition as intended. • Please read these installation instructions carefully before installation. • Keep these installation instructions close to hand at all times.
-
Page 3: Important Safety Instructions
2. Important safety instructions Necessary qualifications of the service technician Only trained service technicians are authorized to install the MaxiFlex100 stall partition. Service technicians are specialists with appropriate qualifications. They are able to assess the work assigned to them and detect potential risks on the basis of their technical training as well as their knowledge of the relevant standards. - Page 4 Important safety instructions 2.2.3 Material damage NOTICE! The word ATTENTION warns you about the risk of material damage. The device or an ob- ject or animal in its vicinity, such as a calf, can be damaged. Marking in the assembly instructions: white writing on a blue background...
-
Page 5: Functional Description
If the transponders are underneath on the collar, the identification system is mounted on the front plate. For cleaning dung off the MaxiFlex100 stall partition it can simply be folded up (optional), by 90° if wall-mounted or 180° if freely mounted on the feeding fence. The respective locking is achieved by two pins. -
Page 6: Installation
Installation 4. Installation The MaxiFlex100 stall partition is assembled as follows: 1. Pick up the side piece with the slotted foot and turn it over so the foot faces upwards. 2. Pick up the other side piece and place the foot with holes in it over the slotted foot of the first side piece. - Page 7 Installation 4. Check the distance between the side pieces. If the optional swing frame it to be fitted to the stall partition, the distance must be 31 cm. 5. On both sides, tighten the bolts that hold the connection piece. 6.
- Page 8 Installation 7. Turn the stall partition over and stand it on its feet. 8. Connect the parts of the hoop to each other. Note the markings on the parts, these corre- spond to the various settings for the width. Note: The width of the hoop matches that of the stall partition. This is done by inserting the long end or short end of one part of the hoop into the other part (see dimensions in the illus- tration).
- Page 9 Installation 9. Slide the hoop into the tubes of the stall partition and tighten the screws in the stall partition and on the hoop. 10. If the antenna is to be attached to the stall partition remove the respective cross piece. For more information, see the installation information for the MultiReader antenna.
- Page 10 Installation 11. If necessary, secure the stall partition to the ground using the holes on the right side and left side. For this, use the anchor plugs and bolts included in the scope of supply. 1 Holes for securing to the ground. Note: If you are installing the stall partition to a wall or to the feeding fence, you can remove the front feet.
